TDK B32652 Film Capacitor 680nF 160V AC 250V DC Through Hole, 2 Pin, 15mm Pitch B32652A3684K000

Free Delivery in India | Lowest Global Shipping Charges

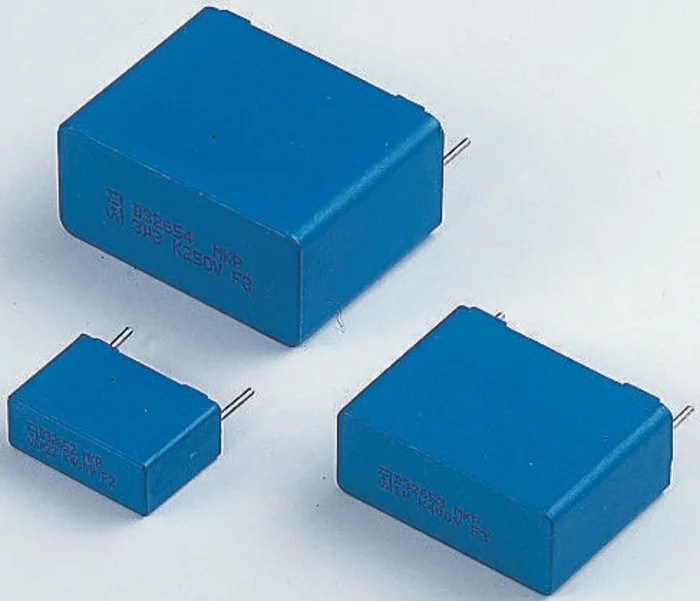

TDK B32652 Film Capacitor 680nF 160V AC 250V DC Through Hole, 2 Pin, 15mm Pitch B32652A3684K000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	17.5mm
Length	18mm
Model	B32652A3684K000
Width	9mm
Mount Type	Through Hole
Series	B32652
Maximum Operating Temperature	100°C
Capacitance	680nF
Standards/Approvals	RoHS, UL
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	15mm
Lead Diameter	0.8mm
Automotive Standard	AEC-Q200 Rev D

Key Features

Constructed with wound capacitor technology ensuring high pulse strength.
Encased in flame retardant plastic case rated UL 94 V-0 with epoxy resin sealing.
Lead pitch of 15mm and lead diameter of 0.8mm suitable for reliable PCB mounting.
Withstands maximum operating temperature up to 100°C for durability.
Complies with automotive standard AEC-Q200 Rev D for robust application use.
High contact reliability and small form factor for integration in electronic circuits.
Ideal for TV S-correction, TV flyback, and electronic ballast circuits.
RoHS compliant and UL recognized for safety and environmental standards.

Product Description

TDK B32652A3684K000 Film Capacitor is a high-quality electronic component designed for performance and reliability. This film capacitor offers a capacitance of 680nF with rated voltages of 160V AC and 250V DC, suitable for various electronic applications requiring stable and precise capacitance values.

Utilizing wound capacitor technology with internal series connection, this capacitor is constructed to endure voltages up to 1250VDC. The component is encapsulated in flame retardant plastic rated UL 94 V-0 and sealed with epoxy resin, ensuring protection against environmental factors and mechanical stresses.

The capacitor features through hole mounting with 2 pins spaced at a 15mm lead pitch, accommodating secure and durable PCB installation. Its compact size - with dimensions of 18mm length, 9mm width, and 17.5mm height - makes it well-suited for applications demanding space efficiency.

Designed to operate at maximum temperatures up to 100°C and compliant with automotive standard AEC-Q200 Rev D, the capacitor meets stringent industry requirements including RoHS and UL approvals.

The B32652 series capacitors exhibit high pulse strength and contact reliability, making them ideal for television S-correction, flyback circuitry, and electronic ballast designs. Constructed using wound capacitor technology with internal series connection.

Encapsulated in flame retardant plastic case UL 94 V-0 with epoxy resin sealing. High pulse strength and contact reliability. Compact form factor with 15mm lead pitch and 0.8mm lead diameter. Automotive grade certified to AEC-Q200 Rev D standard.

Application range includes TV S-correction, flyback, and electronic ballasts. Overcomes environmental challenges with UL and RoHS compliance. Supports industrial and consumer electronic manufacturing requirements.
