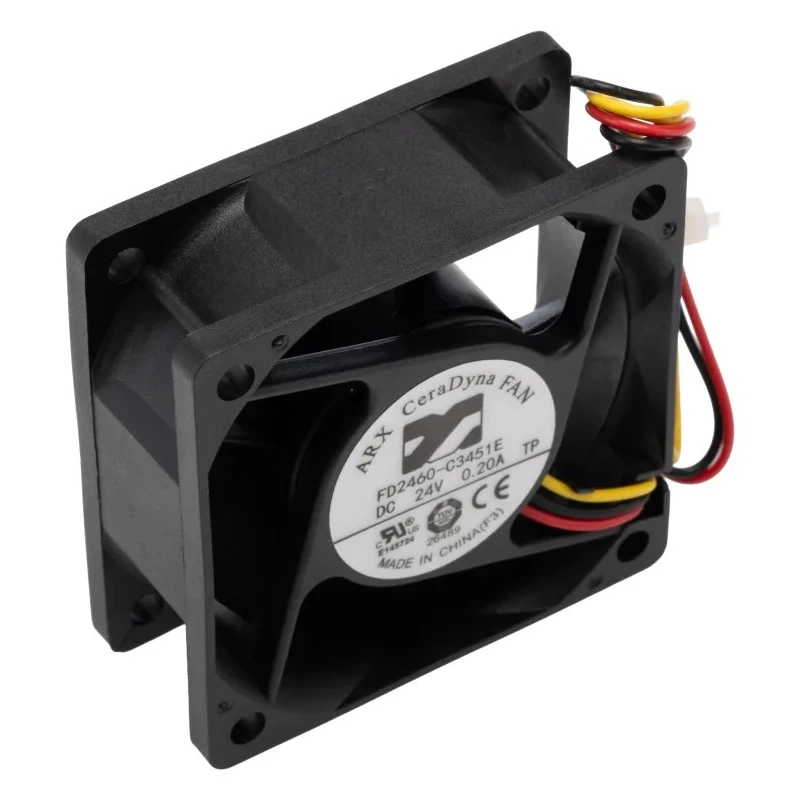

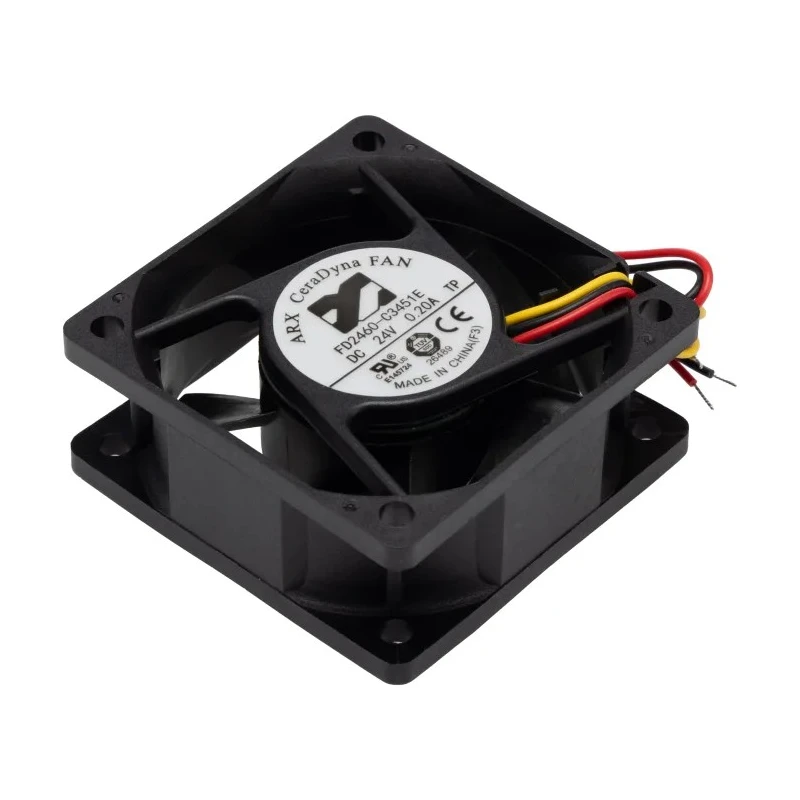

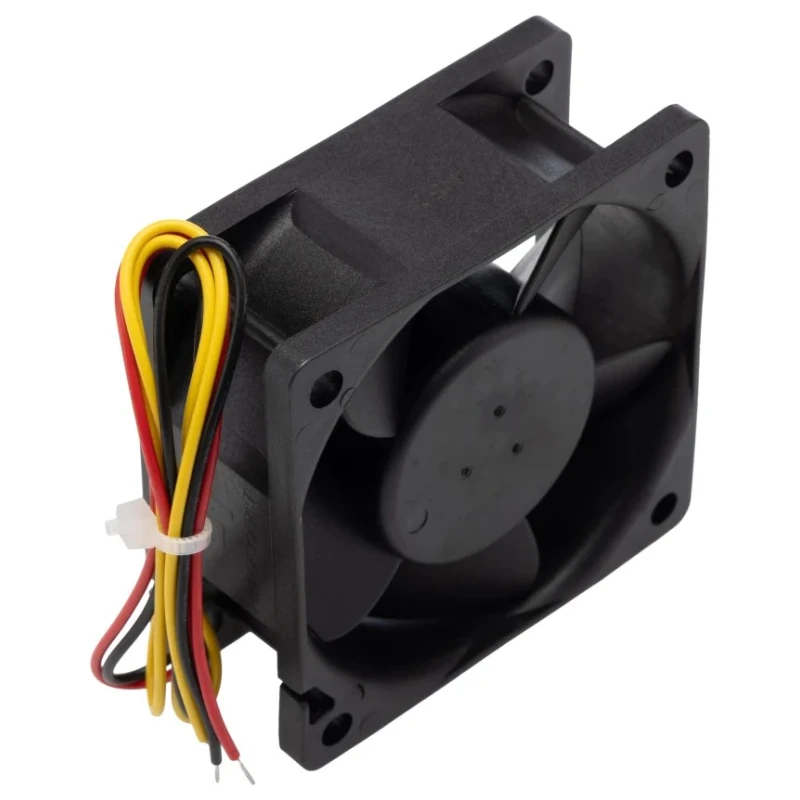

ARX CeraDyna Series Axial Fan 24 V dc 59.6 m³/h Air Flow 4.8 W Power 200 mA Max Current IP20 60 mm 60mm 25 mm

ARX FD2460-C3451E2AL CeraDyna Series Axial Fan is a 24 V dc fan designed for optimized cooling performance with a volumetric air flow of 59.6 m³/h, powered at 4.8 W and drawing a maximum current of 200 mA. It features a square 60 mm frame size with a 25 mm depth, ideal for compact applications requiring efficient ventilation.

This axial fan utilizes advanced CeraDyna ceramic bearings which provide significantly increased longevity compared to standard ball or sleeve bearings. The ceramic bearing design results in quiet operation, low friction, and self-polishing properties eliminating the need for oil lubrication. The fan achieves a low noise level of 40 dB, making it suitable for use in noise-sensitive environments.

Engineered for robust performance, this fan is fully resistant to heat and humidity. It includes reverse voltage protection to guard against electrical surges, enhancing operational safety. The airflow direction is forward curved to maximize cooling efficiency, accompanied by a high fan speed of 7500 rpm.

The fan is intended for diverse industrial and commercial use cases such as cooling electronic server racks, electrical control cabinets, computer towers, and other equipment requiring reliable airflow management. Its IP20 rating ensures protection from solid foreign objects larger than 12 mm, suitable for controlled environments.

Wire terminals facilitate simple and secure electrical connections. The lead wire length is approximately 245 to 295 mm with polarity indicated by red (+ve) and black (-ve) wires, and an optional speed output wire for monitoring fan revolutions.

Equipped with CeraDyna ceramic bearings for durability. Compact 60 mm square frame and 25 mm external depth. IP20 rated enclosure for basic protection requirements. Quiet 40 dB noise level operation. Forward curved airflow for efficient ventilation.

High speed at 7500 rpm for effective cooling. Reverse voltage protection included. Wire terminal connections. Resistant to heat and humidity, oil-free lubrication.

Widely applicable across industrial, HVAC, manufacturing, and electronics cooling sectors. ARX CeraDyna fans provide a cost-effective, reliable cooling solution with extended service life.

Explore more Axial Fan options and industrial cooling products at EnvMart for dependable equipment ventilation and thermal management.
