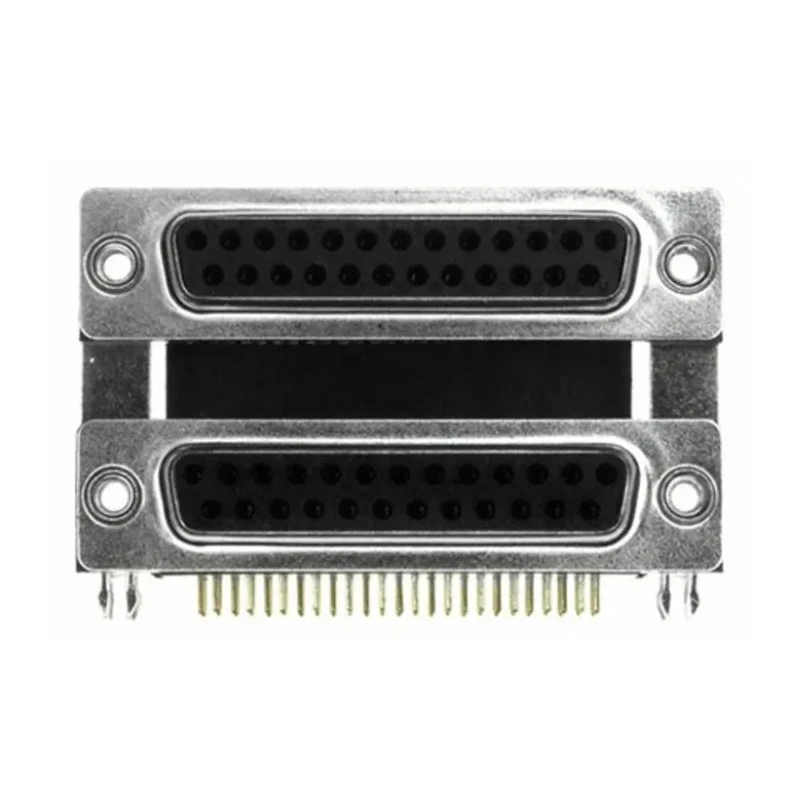

Norcomp Right Angle 25 Contact 2.769 mm Pitch PCB D-Sub Connector Steel Housing Gold Plated Brass Contacts 189-025-513R491

Norcomp 189-025-513R491 is a high-quality right angle PCB mount D-Sub connector with 25 contacts and a 2.769 mm pitch. Manufactured with precision, it features gold plated brass contacts ensuring excellent conductivity and durability. The nickel-plated steel shell provides superior shielding, grounding, and mechanical retention.

Designed as part of the 189 Series, this dual port connector optimizes PCB space by stacking dual ports at a right angle orientation. It supports a current rating of 5 A and a voltage rating up to 1 kV. The connector is built for reliable operation in harsh environments with minimum and maximum operating temperatures of -55°C and 105°C respectively. The solder termination type and high temperature UL94V-0 thermoplastic insulator further ensure secure and stable electrical connections.

The connector comes equipped with boardlocks for enhanced PCB retention, and offers flexibility with 4 to 40 insert mounting hardware options. The contact arrangement features female contacts on shell size DA-25 and male contacts on shell size DB-25, ensuring compatibility with multiple configurations.

This Norcomp D-Sub connector is ideal for industrial electronic equipment, power connectors, communications devices, and other applications where multiple connector ports must fit into a constrained PCB footprint.

Dual right angle stacked ports for optimal PCB space saving. Gold plated stamped brass contacts for high conductivity and long life. Nickel plated steel shell with ground indents for improved shielding and grounding. High temperature UL94V-0 thermoplastic insulator rated for up to 260°C process temperature.

Boardlocks and mounting hardware for strong PCB retention. Support for 25 contacts per port with female A and male B configurations. Voltage rating of 1 kV and current rating of 5 A for robust performance. Operating temperature range of -55°C to 105°C for wide application environments.
