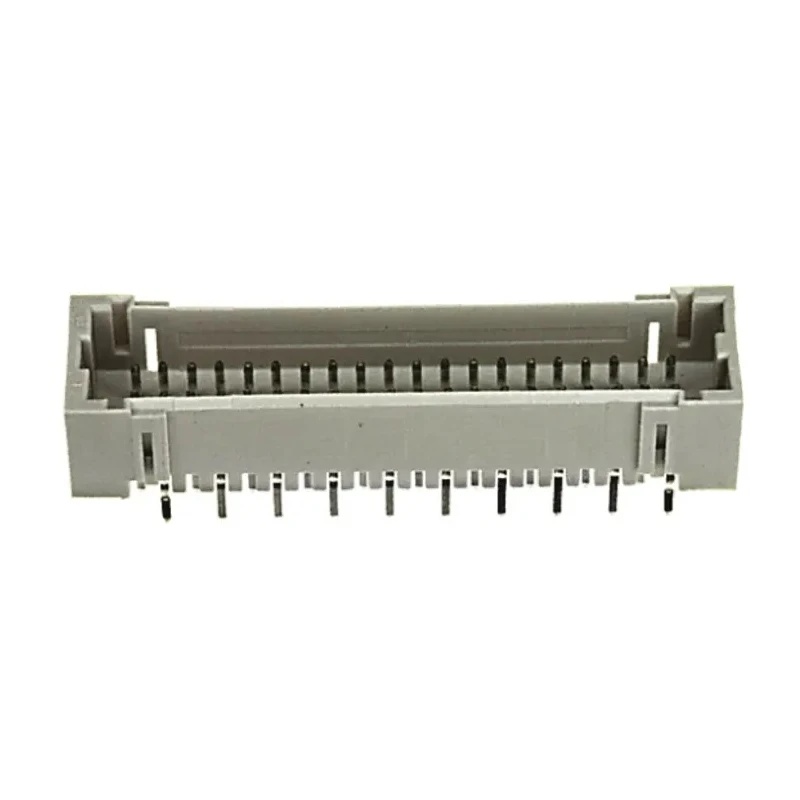

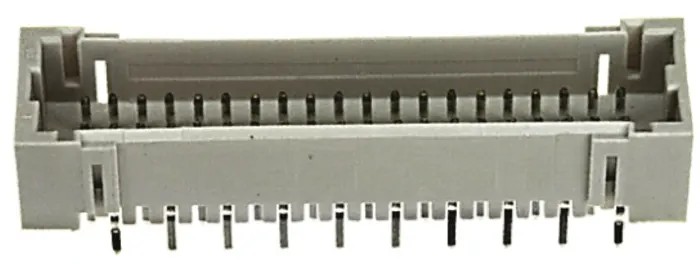

TE Connectivity AMP Mini CT Series Straight Through Hole PCB Header, 40 Contacts, 3 mm Pitch, 2 Row, Shrouded 4-292208-0

TE Connectivity 4-292208-0 Mini CT Series Straight Through Hole PCB Header is a high-quality electronic component designed for wire-to-board interconnections in various industrial applications. This PCB header features 40 male contacts arranged in 2 rows with a 3 mm pitch, ensuring compact and reliable connections on printed circuit boards.

The contacts are made from brass and have a tin plating to provide excellent electrical conductivity and corrosion resistance. The housing is manufactured from UL 94V-0 rated nylon, offering durable mechanical strength and flame resistance, suitable for demanding environments. The straight orientation and through-hole mounting type with kinked legs secure the component firmly to the PCB during assembly processes.

Operating voltage is rated at 50V with a current capacity of 2A, making it ideal for low-power electronic assemblies. The connector supports a broad temperature range from -55°C to 105°C, allowing it to function reliably in industrial, manufacturing, and electronic equipment environments.

The shrouded design enhances safety by protecting the contacts and preventing unintended contact with conductive parts. The dual row configuration with 3 mm pitch spacing enables efficient use of PCB space and compatibility with established IPC standards.

This product is suitable for applications in industrial automation, instrumentation, and electronic device manufacturing. It is part of the TE Connectivity AMP Mini CT interconnection system, known for compact design and proven wire harness performance. Compatible mating products include stock numbers 683-2238 and 683-2232.

Mini CT series with a straight orientation and 2 rows for compact PCB mounting. 40 male contacts made of brass and plated with tin to ensure conductivity. Housing constructed from durable nylon material with UL 94V-0 flame rating.

Rated for 50V operating voltage and 2A current capacity suitable for low power applications. Temperature range from -55°C to 105°C supports harsh environmental conditions. Through hole mount type with kinked legs for secure PCB retention during soldering.

Compact 3 mm pitch and row pitch facilitate high-density board layouts. Shrouded design enhances connector protection and prevents accidental contact. Intended for wire-to-board systems and compatible with related mating connectors.
