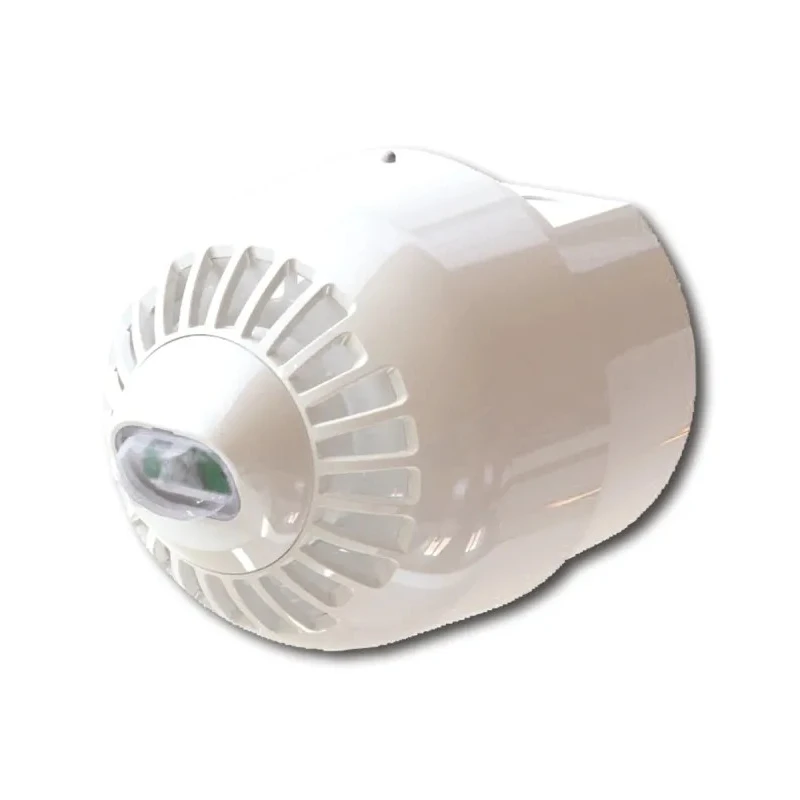

Klaxon Sonos Pulse Series White Sounder-Beacon Combination 60V DC IP21, IP65 97 dB Electronic ESC-5001
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Klaxon |
| Model | ESC-5001 |
| IP Rating | IP21, IP65 |
| Gross Weight | 0.24kg (shallow base) 0.29kg (deep base) |
| Mount Type | Ceiling, Wall |
| Housing Material | Polycarbonate |
| Bulb Type | LED |
| Series | Sonos Pulse |
| Maximum Operating Temperature | 70°C |
| Current Type | DC |
| Current consumption | 25mA |
| Minimum Operating Temperature | -10°C |
| Cable Entries | Deep Base: 2 x 20mm cable glands |
| Lens Colour | White |
| Standards/Approvals | EN 54-23, EN 54-3 |
| Sound Output | 97dB(A) at 1 metre |
| Maximum Supply Voltage | 60V dc |
| Housing Colour | White |
| Light Effect | Flashing |
| Minimum Sound Level | 94dB |
| Sounder Type | Electronic |
| Sound Level at 1m | 97dB |
| Maximum Sound Level | 97dB |
| White flash | EN54-23 coverage W-3.1-11.3 |
| Red flash | EN54-23 coverage W-2.4-7.5 |
| Shallow base | Ø100 x 100 mm high |
| Deep base | Ø122 x 97.5 mm high |
Key Features
- Features patented Pulse Alert Technology for optimized coverage and reduced power consumption.
- Combines visual and audible alarms with white LED flash and sounder.
- IP21 and IP65 rated for weather protection with polycarbonate housing.
- Suitable for industrial, commercial, and office environments.
- Complies with EN54-23 and EN54-3 standards for alarm devices.
- Offers synchronized flash to protect individuals with photosensitive epilepsy.
- Operates between -10°C and 70°C for broad environmental tolerance.
- Deep and shallow base options with cable entries designed for easy installation.
Product Description
Klaxon ESC-5001 Sonos Pulse Series White Sounder-Beacon Combination is a high-performance visual alarm device (VADS) delivering an electronic sound output of 97 dB(A) at 1 meter and equipped with patented Pulse Alert Technology. Designed for ceiling or wall mounting, it operates on a 60V DC power supply and features white color flashing LED light for clear visual indication.
This device complies with rigorous EN54-23 and EN54-3 standards, making it suitable for safety signaling in industrial automation, manufacturing plants, offices, hotels, and commercial environments. Its polycarbonate housing provides flame retardant properties and robust weatherproof protection rated to IP21 for shallow base and IP65 for deep base models.
The Pulse Alert Technology enhances system efficiency by reducing power consumption while ensuring optimum illumination and sound coverage. The synchronized flash functionality minimizes risks to people with photosensitive epilepsy. The Sonos Pulse model family offers versatile mounting options, including ceiling and wall install, and a choice between shallow and deep bases equipped with 20mm cable gland entries for convenient wiring.
Operating temperatures range from -10°C up to 70°C, accommodating various installation environments. Compact in size with shallow base dimensions of approximately Ø100 x 100 mm high and deep base Ø122 x 97.5 mm high, the device weighs 0.24 kg (shallow base) and 0.29 kg (deep base).
Features patented Pulse Alert Technology for low power consumption and optimized coverage. Combines a white LED flashing beacon with a 97 dB electronic sounder output. Ceiling or wall mountable for flexible deployment in multiple environments.
Enclosure rated IP21 and IP65 for protection against environmental ingress. Complies with European EN54-23 and EN54-3 standards for alarm signaling devices. Includes synchronized flash to reduce photosensitive epilepsy risk.
Manufactured from flame retardant polycarbonate for durability and safety. Supports easy installation with multiple cable gland entries in deep base design. Effective coverage up to 15 meters for ceiling mounts and 11.3 meters for wall mounts.
Suitable for applications in industrial, laboratory, commercial, HVAC, and manufacturing sectors.
Klaxon products are known for reliability in automation signaling solutions, and the ESC-5001 Sonos Pulse model continues this tradition with advanced alerting technology. For more options in Sounder Beacons and automation signaling devices, explore the full Klaxon range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sound output level of this model is 97 dB(A) at a distance of 1 meter.
It has an IP rating of IP21 for shallow base and IP65 for deep base models, providing protection against environmental ingress.
This unit operates within a temperature range of -10°C to 70°C, making it suitable for various environments.
It operates on a 60V DC power supply and has a current consumption of 25mA.
It can be mounted on either ceilings or walls, providing flexibility in installation.
The shallow base has dimensions of Ø100 x 100 mm high, while the deep base measures Ø122 x 97.5 mm high.
The housing is made from flame retardant polycarbonate, ensuring durability and safety.
It complies with EN54-23 and EN54-3 standards for alarm signaling devices.
The patented Pulse Alert Technology optimizes coverage and reduces power consumption, enhancing system efficiency.
The white flash provides EN54-23 coverage of W-3.1-11.3 meters for wall mounts and up to 15 meters for ceiling mounts.
Yes, it features synchronized flash functionality to minimize risks for individuals with photosensitive epilepsy.
The shallow base weighs 0.24 kg, while the deep base weighs 0.29 kg.
