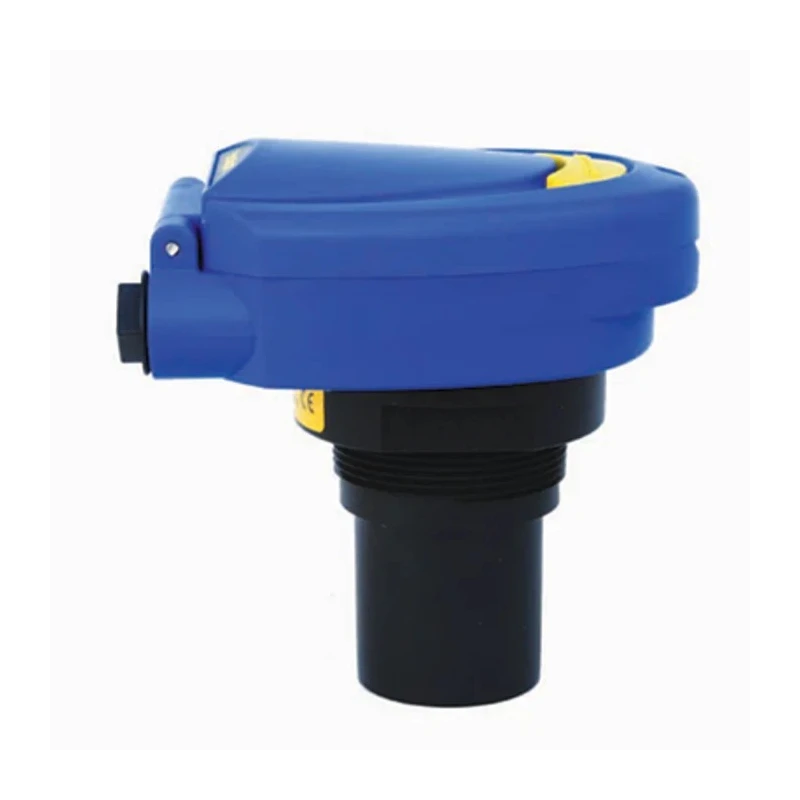

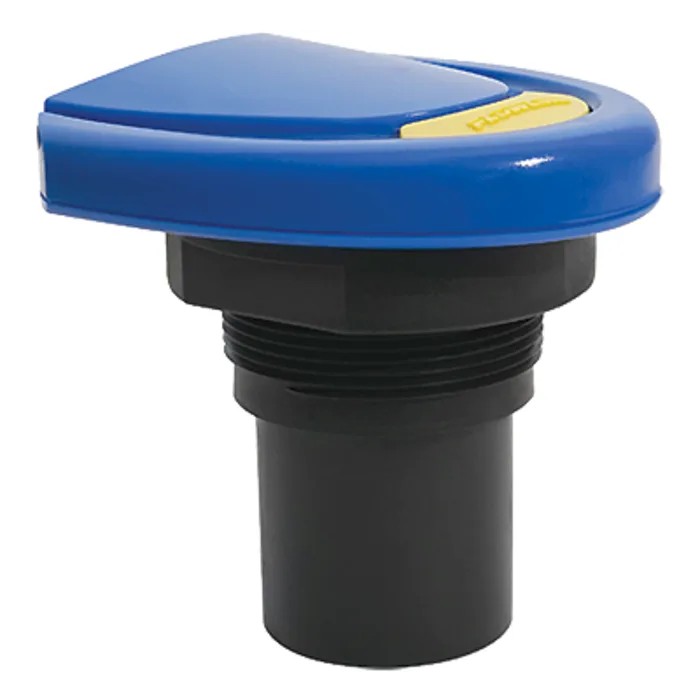

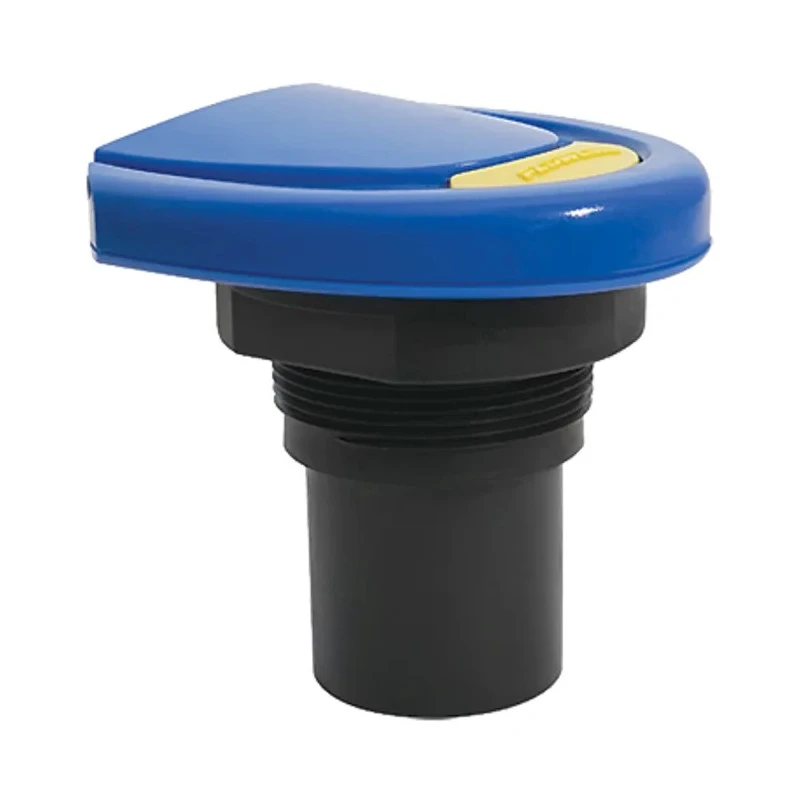

Flowline EchoSonic Series Ultrasonic Level Transmitter Vertical Mount Polycarbonate Housing Fluorelastomer Gasket LU23-01
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Flowline |
| Model | LU23-01 |
| Mount Type | Vertical |
| Housing Material | Polycarbonate |
| Series | EchoSonic |
| Maximum Operating Temperature | 60°C |
| Maximum Pressure | 2bar |
| Minimum Operating Temperature | -35°C |
| Interfaces | USB communication adapter available (RS Stock No 889-1570) |
| Maximum Current | 20mA |
| Device Type | Ultrasonic Level Transmitter |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | cFMus |
| Gasket Material | Fluorelastomer |
Key Features
- Designed for corrosive liquids with PVDF transducer and polycarbonate enclosure.
- Operates within a temperature range of -35°C to 60°C for versatile use.
- Supports maximum DC voltage of 24V and current of 20mA.
- Pressure rating up to 2 bar for reliable industrial operation.
- Certified to cFMus standards ensuring safety and compliance.
- Includes DSP auto-adaptive filters for optimal signal output.
- Compatible with USB communication adapter for configuration.
- Supports effortless calibration with Flowline WebCal software.
Product Description
Flowline LU23-01 EchoSonic Series Ultrasonic Level Transmitter features a vertical mount design with robust polycarbonate housing and fluorelastomer gasket. It is engineered to provide precise continuous level measurements in industrial environments, especially suited for corrosive liquids thanks to the PVDF transducer.
The device operates reliably within a temperature range of -35°C to 60°C and withstands pressures up to 2 bar, making it suitable for various industrial, water treatment, and manufacturing applications.
The transmitter delivers a 4-20mA output signal with a low current consumption of 20mA at 24V DC maximum voltage. It has obtained cFMus certification, ensuring adherence to strict safety standards.
Installation and setup are facilitated through plug & play DSP auto-adaptive filters that maximize signal integrity. Additionally, an optional USB communication adapter is available to allow seamless parameter adjustments and diagnostics.
This model is compatible with Flowline's free WebCal software, enabling effortless calibration and maintenance. The durable polycarbonate housing combined with the fluorelastomer gasket offers ample chemical resistance for challenging industrial conditions.
Robust vertical ultrasonic level transmitter with polycarbonate enclosure and fluorelastomer gasket. PVDF transducer for resilience against corrosive fluids. Operating temperature range from -35°C to 60°C. Maximum DC voltage 24 V with 20 mA maximum current.
Pressure rating up to 2 bar for reliable operation. cFMus certified for safety and compliance. Optional USB communication adapter supports advanced configuration.
This ultrasonic level transmitter is ideal for industrial, water treatment, chemical processing, and manufacturing applications requiring accurate, reliable level measurement. For more ultrasonic sensor options and related industrial automation devices, explore the extensive EnvMart catalog.
Explore more products in our Ultrasonic Level Sensor category.
