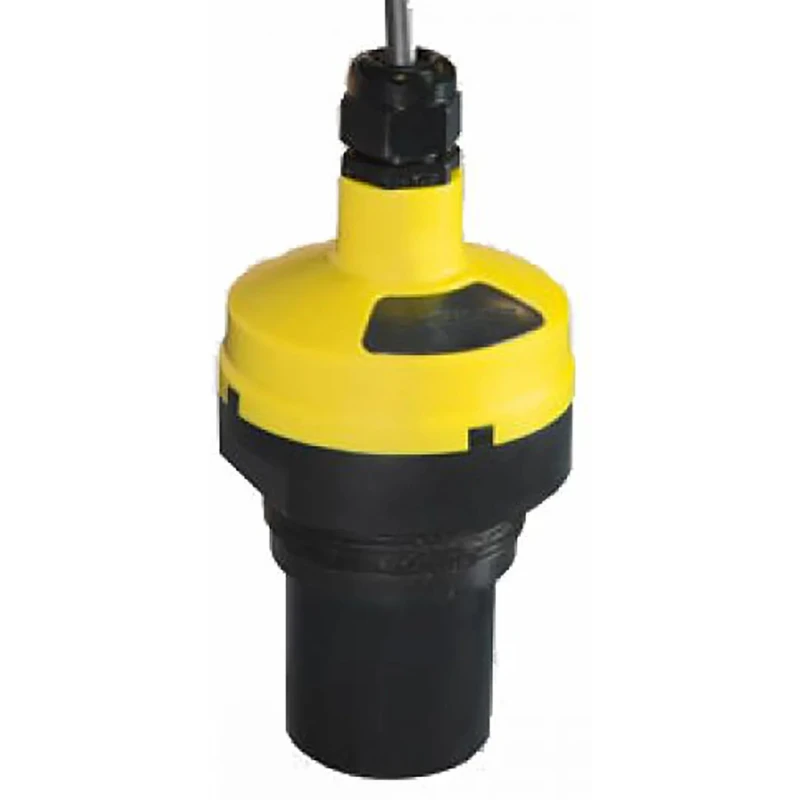

Flowline EchoPod Series Ultrasonic Level Sensor Vertical Mount Polycarbonate Housing Fluorelastomer Gasket DL34

Flowline DL34 Ultrasonic Level Sensor is a vertical mount ultrasonic sensor designed for continuous liquid level measurement with non-contact sensing technology. The sensor features a polycarbonate housing that offers mechanical durability and chemical resistance, complemented by a fluorelastomer gasket to enhance sealing and corrosive fluid compatibility.

This robust sensor is well-suited for industrial automation, water treatment, chemical processing, and manufacturing applications requiring reliable level detection in corrosive, sticky, or dirty liquid environments. Its non-contact measurement eliminates sensor contamination and wear, resulting in longer maintenance intervals.

Operating temperature ranges from -35°C to 60°C, with a maximum pressure tolerance of 2 bar, making it adaptable to moderate industrial process conditions. The sensor operates on a 24V DC power supply and draws a maximum current of 20mA, which supports efficient operation.

Included is a 1.2 meter cable length to facilitate flexible positioning and straightforward connections. The Flowline EchoPod DL34 series complies with cFMus approvals, ensuring safety standards adherence.

Non-contact level sensing for corrosive and dirty liquids. Durable polycarbonate housing with fluorelastomer gasket. Vertical mount type ideal for tank or vessel monitoring. Wide temperature range from -35°C to 60°C. 24V DC operating voltage with 20mA maximum current.

2 bar maximum pressure rating. Includes 1.2 meter cable for connectivity. cFMus safety approvals certified. Manufactured in the United States ensuring high quality.

This sensor is especially suitable for industrial, automation, manufacturing, HVAC, and water treatment sectors seeking reliable and maintenance-friendly level measurement solutions. Explore the complete range of Flowline Level Sensors at EnvMart for comprehensive fluid level management options.
