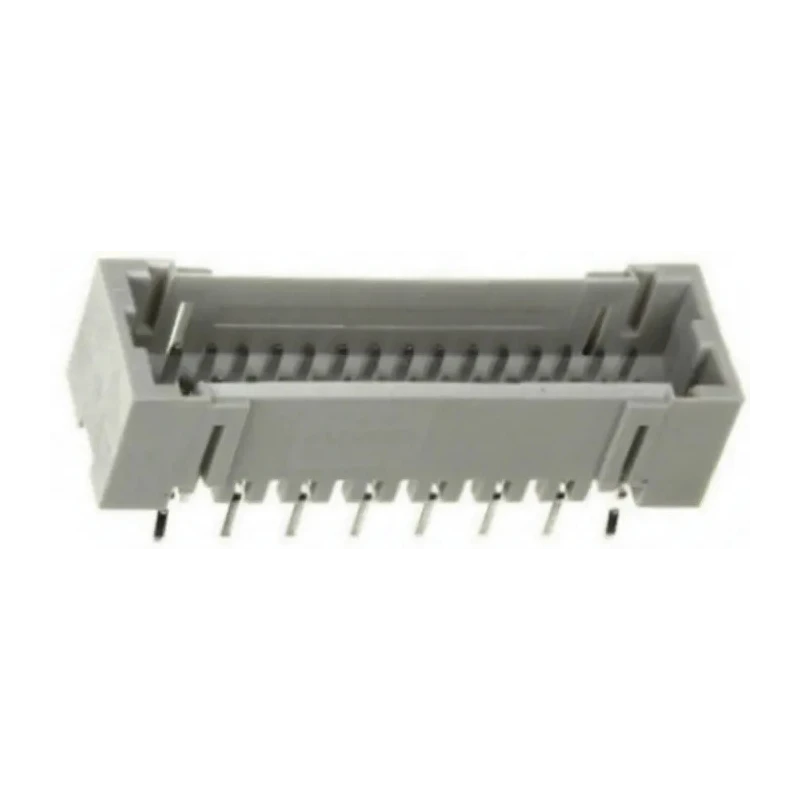

TE Connectivity AMP Mini CT Series PCB Header, 32 Contacts, 1.5 mm Pitch, 2 Row, Shrouded 3-292208-2

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP Mini CT Series PCB Header, 32 Contacts, 1.5 mm Pitch, 2 Row, Shrouded 3-292208-2

Name: TE Connectivity AMP Mini CT Series PCB Header, 32 Contacts, 1.5 mm Pitch, 2 Row, Shrouded 3-292208-2
Brand: TE Connectivity
SKU: 218702
Price: 3.14 USD
Availability: InStock



Category PCB Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	TE Connectivity
Current	2.0
Contact Material	Brass
Series	AMP Mini CT
Number of Rows	2
Pitch	1.5mm
Contact Plating	Tin
Number of Contacts	32
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header supports wire-to-board connections with a rated current of 2.0 A.
It features pre-tin plated brass contacts for reliable electrical conductivity.
The header housing is constructed of UL 94V-0 nylon ensuring flame retardance.
Designed for vertical through-hole mounting with kinked legs for enhanced PCB retention.
Operating voltage rating is 50 V suitable for low voltage applications.
The 1.5 mm pitch spacing suits compact interconnection systems.
Ideal for wire sizes 24 to 28 AWG providing flexibility for varied harnesses.
The shrouded design protects contacts and ensures secure mating.

Product Description

TE Connectivity 3-292208-2 AMP Mini CT Series PCB Header is a dual-row, 32-contact electrical connector designed for reliable wire-to-board connections in compact electronic assemblies. Featuring a 1.5 mm pitch, this shrouded header uses pre-tin plated brass contacts and UL 94V-0 nylon housing that provides excellent flame resistance and durability.

The through-hole vertical mounting configuration includes kinked legs to secure the header firmly to printed circuit boards. Its design accommodates wire sizes from 24 to 28 AWG, supporting a rated current of 2.0 A and a voltage of up to 50 V, making it suited for low voltage industrial, electronic, automotive, and communication equipment applications.

The AMP Mini CT connector system is known for small footprint interconnection needs, offering wire-to-board and wire-to-wire functionality with proven wire harness capabilities. The shrouded design protects contacts against damage and erroneous connections, while providing secure coupling with compatible mate connectors.

With a robust construction and compact form factor, this PCB header is widely used in electronics manufacturing requiring reliable signal and power transmission within confined spaces.

Applications include industrial automation, telecommunications, instrumentation, computing, and consumer electronics where compact, high-density connectors are necessary. This 32-contact, 2-row PCB header follows the AMP Mini CT series standard for pitch and mounting style.

Pre-tin plated brass contacts ensure optimal conductivity and corrosion resistance. Kinked legs enhance mechanical retention on PCBs during assembly and operation. Housing material complies with UL 94V-0 flammability standards for safety and reliability.

The connector system supports a rated current of 2.0 A and voltage up to 50 V for low voltage applications. Explore EnvMart's broad selection of PCB Connectors for commercial and industrial electronics projects.
