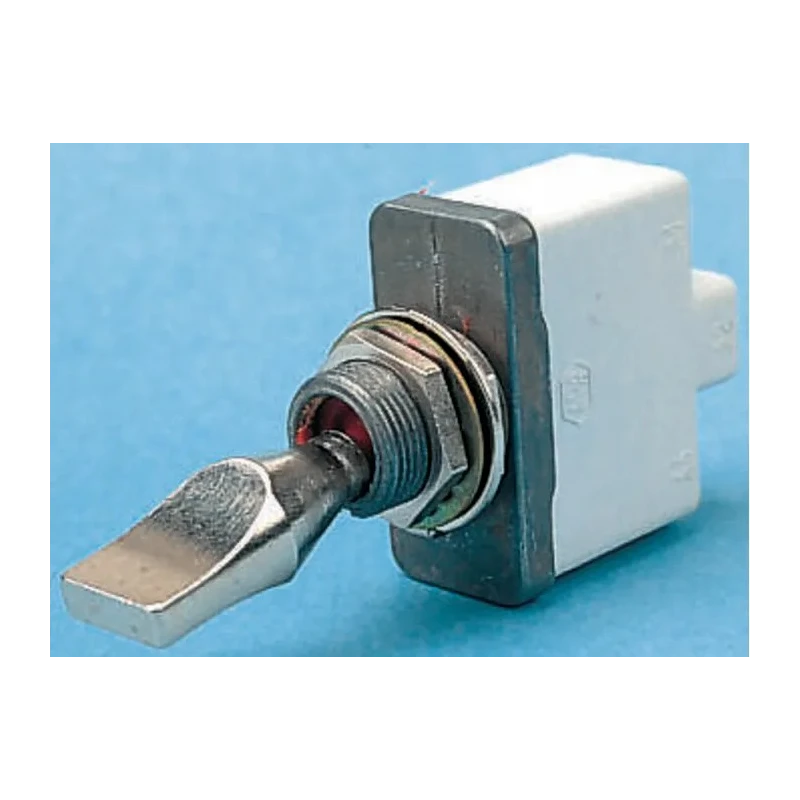

APEM 3500 Series Toggle Switch Panel Mount On-Off-On DPST Screw Terminal 28 V dc 250 V ac 3549-003N00

Free Delivery in India | Lowest Global Shipping Charges

APEM 3500 Series Toggle Switch Panel Mount On-Off-On DPST Screw Terminal 28 V dc 250 V ac 3549-003N00

Name: APEM 3500 Series Toggle Switch Panel Mount On-Off-On DPST Screw Terminal 28 V dc 250 V ac 3549-003N00
Brand: APEM
SKU: 116290



Category Toggle Switch Brand APEM Condition New

Specifications

Country of Origin	France
Brand	APEM
Height	60.3mm
Length	32mm
Model	3549-003N00
IP Rating	IP69K, IP64, IP67
Width	23mm
Mount Type	Panel
Series	3500
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Switch Configuration	On-Off-On
Minimum Operating Temperature	-40°C
Panel Cutout Size	12.5 mm
Terminal type	Screw
Standards/Approvals	CECC, UL, RoHS
Switch Operation	On-Off-On
Actuator Length	24mm
Contact DC Voltage	28V dc
Switch Contact Current	15A
Mechanical Life	40000Operations
Contact AC Voltage	250V ac

Key Features

The 3500 Series switch features a sealed design with IP69K, IP64, and IP67 ratings ensuring protection against water and dust.
It supports a switch contact current of 15A for reliable operation.
The actuator is a bright nickel finish flat lever with a length of 24 mm and overall length of 32 mm.
Constructed with silver cadmium oxide contacts and a brass actuator within a Mineral Filled Polyester case rated UL 94 V-0.
Suitable for operation between -40°C to 85°C temperature range.
The switch offers mechanical life of 40,000 operations.
Panel cutout size is 12.5 mm, with mounting type designed for panel installation.
It complies with standards CECC 96201-004, UL, and RoHS for safety and environmental compliance.

Product Description

APEM 3549-003N00 is a robust toggle switch from the 3500 Series, designed for panel mounting with an On-Off-On double pole single throw (DPST) configuration, ideal for industrial and electrical applications requiring reliable switching capabilities.

This switch operates at 28 V dc and 250 V ac, supporting a contact current of 15A, making it suitable for heavy-duty electrical control circuits in manufacturing, automation, and HVAC systems.

The fully sealed design meets IP69K, IP64, and IP67 ingress protection ratings, providing excellent resistance to water immersion and dust ingress, suitable for harsh industrial environments.

The actuator is a flat lever with a bright nickel finish, 24 mm in length, and the switch body measures 32 mm length, 23 mm width, and 60.3 mm height, constructed with a durable Mineral Filled Polyester case compliant with UL 94 V-0 flammability standards.

The switch features silver cadmium oxide contacts for reliable conductivity, a brass actuator, and moulded-in M3.5 screw terminals (15//32-32NS thread) for secure electrical connections.

Operating temperature ranges from -40°C to 85°C with a mechanical life expectancy of 40,000 operations, ensuring long-term durability in industrial settings.

Certified under CECC, UL, and RoHS standards, this Toggle Switch is manufactured in France and suitable for applications in industrial automation, control panels, electronics manufacturing, and other commercial electrical systems.

The 3500 Series switch is fully sealed with IP69K, IP64, and IP67 ratings. Switch operation is On-Off-On with DPST contact configuration. Features silver cadmium oxide contacts and a brass actuator inside a UL 94 V-0 rating case.

Mechanical lifespan is rated at 40,000 operations for robust use. Designed for panel mount installation with screw terminal connectivity. Suitable for industrial, manufacturing, HVAC, and commercial electrical applications.
