Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 10 Contacts 2.54 mm Pitch 1 Row 811-S1-010-10-015101

Free Delivery in India | Lowest Global Shipping Charges

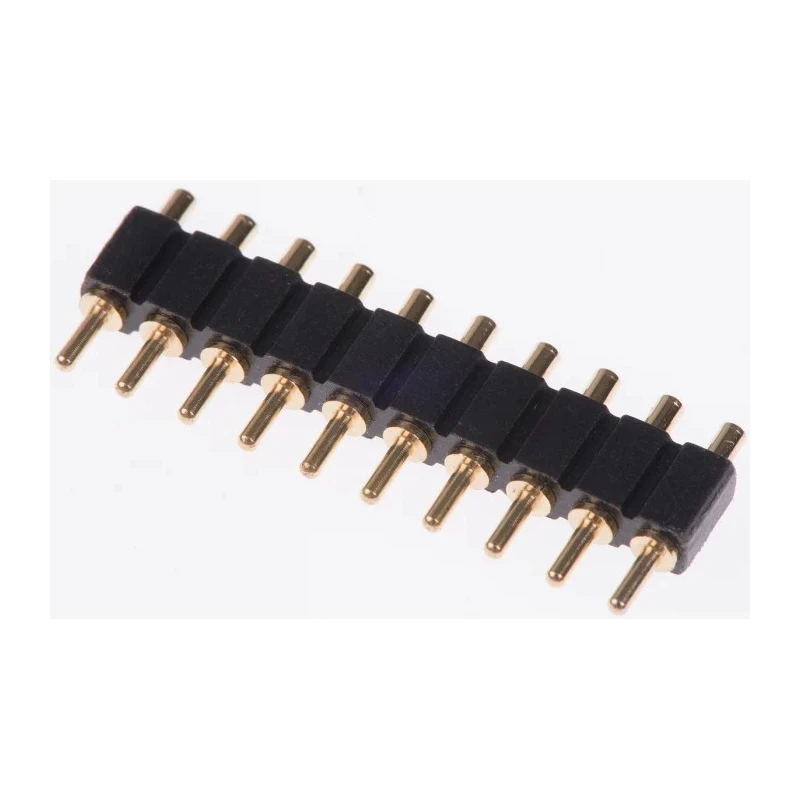

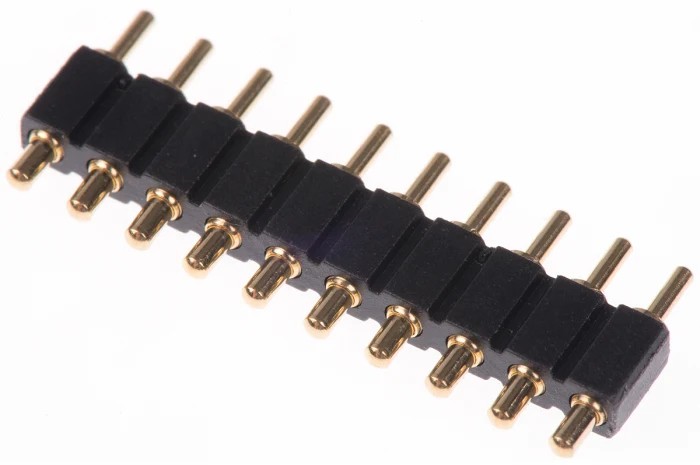

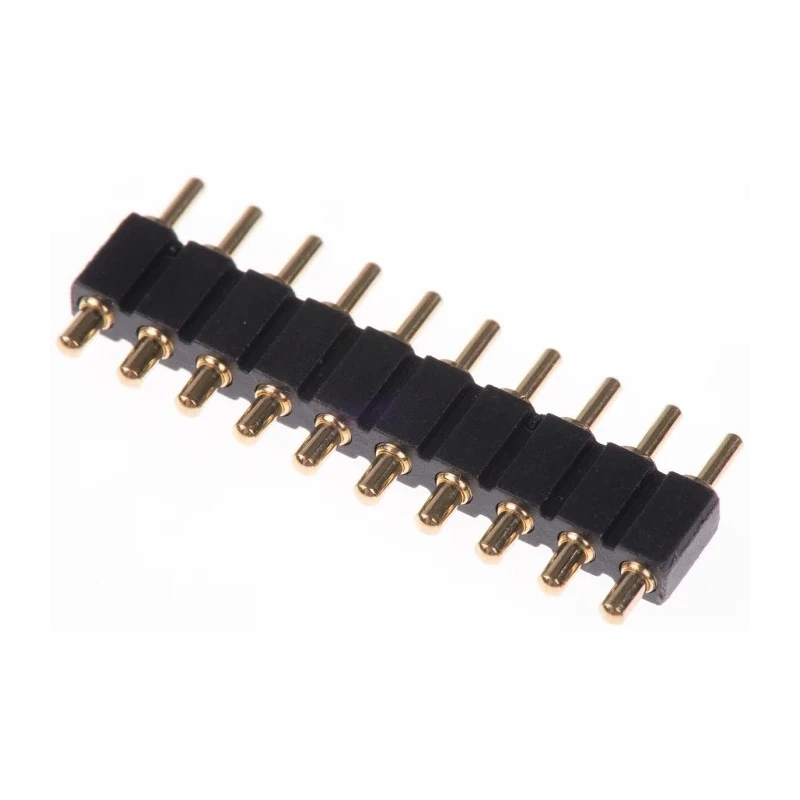

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 10 Contacts 2.54 mm Pitch 1 Row 811-S1-010-10-015101

Name: Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 10 Contacts 2.54 mm Pitch 1 Row 811-S1-010-10-015101
Brand: Preci-Dip
SKU: 215259
Price: 11.09 USD
Availability: InStock



Category PCB Connectors Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	3.5A
Model	811-S1-010-10-015101
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	811
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 10 male contacts designed for through hole mounting on PCBs.
Contact pitch is 2.54 mm suitable for standard SIL connectors.
Built with fibreglass reinforced polyethylene terephthalate housing for durability.
Brass contacts plated with gold ensure low resistance and high conductivity.
Operates reliably between -55°C to 125°C temperature range.
Supports a current rating of 3.5 A and voltage rating of 150 V.
Shrouded straight orientation improves connection reliability and protects contacts.
Termination type is solder for secure PCB installation.

Product Description

Preci-Dip 811-S1-010-10-015101 spring loaded connector is a high-quality electronic component designed for reliable PCB connections. Featuring 10 male contacts arranged in a single row with a 2.54 mm pitch, this shrouded connector supports through hole mounting, making it compatible with a wide range of printed circuit boards.

The connector housing is constructed from fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and thermal stability. The brass contact material is gold plated, ensuring stable electrical performance with low resistance and resistance to corrosion.

This connector operates over a wide temperature range from -55°C to 125°C and supports a current of 3.5 A and a voltage rating of 150 V, making it suitable for demanding industrial and electronic applications. The solder termination type guarantees secure and durable connections on assembly.

Preci-Dip's spring-loaded contact system provides consistent low resistance contact without micro-discontinuities, even under vibration or movement, which ensures maximum reliability for automated and manual connection systems.

This product is ideally suited for industrial, laboratory, manufacturing, and electronic PCB header applications where durability and stable electrical contact are critical. It is a robust and precise solution for multipoint connections.

10 male spring-loaded contacts with 2.54 mm pitch for precise PCB interfacing. Fibreglass reinforced plastic housing for enhanced mechanical durability. Gold plated brass contacts offering corrosion resistance and excellent conductivity.

Wide operating temperature range from -55°C to 125°C for harsh environments. Designed for through hole mounting to ensure sturdy installation.

The product is manufactured in Switzerland, ensuring adherence to high quality standards. Suitable for use in electronics manufacturing, automation, and control gear systems where reliable PCB connection is essential.
