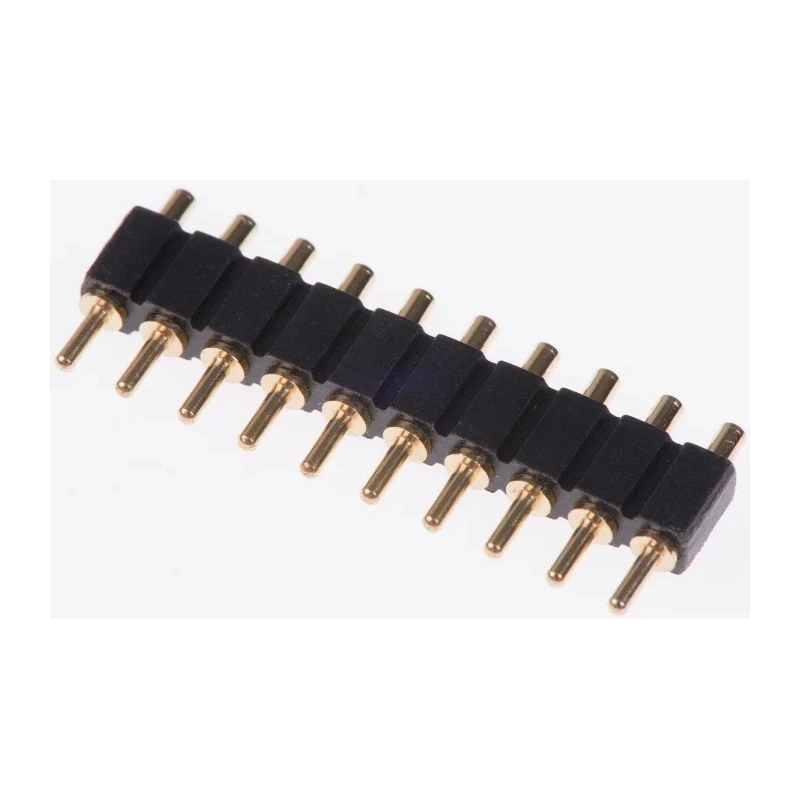

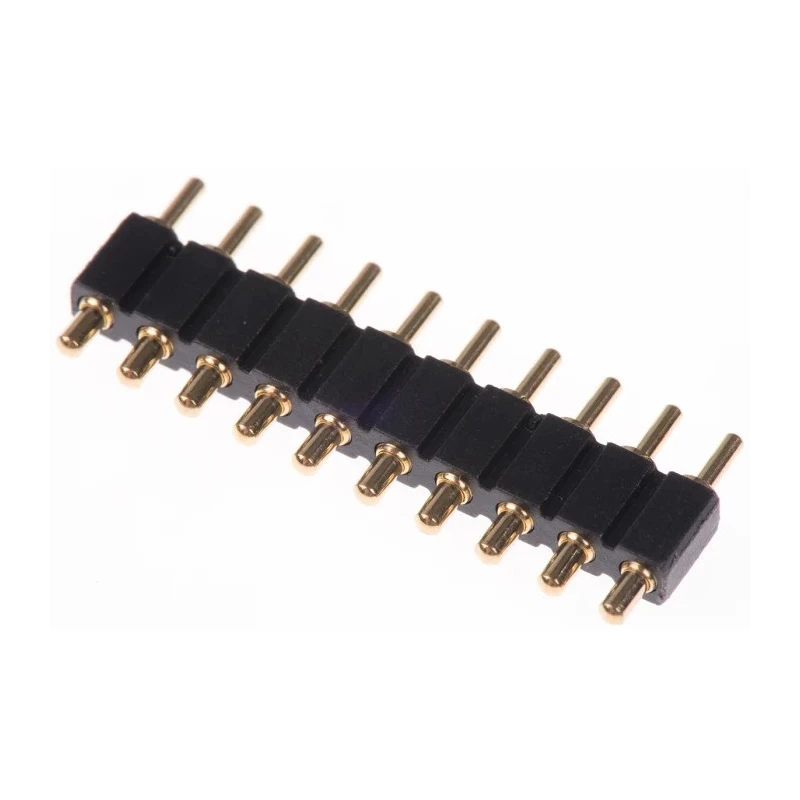

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector 10 Contacts 2.54 mm Pitch 1 Row 811-S1-010-10-015101

Preci-Dip 811-S1-010-10-015101 spring loaded connector is a high-performance electronic component designed for reliable multipoint connections on printed circuit boards. Featuring 10 contacts arranged in a single row with a 2.54 mm pitch, this connector benefits from a shrouded fibreglass reinforced polyethylene terephthalate housing that ensures insulation integrity and durability.

The spring-loaded brass contacts plated with gold provide low, stable electrical resistance with excellent vibration resistance, making them ideal for industrial, laboratory, and manufacturing environments where consistent signal quality is critical.

It supports a continuous current of up to 3.5 A and operates safely within a voltage rating of 150 V. Its operating temperature range extends from -55°C to 125°C, accommodating harsh environmental conditions. The connector employs through hole mounting with a straight orientation and features solder termination with male contact gender to ensure robust mechanical and electrical connections.

With a plunger stroke length of 1.4 mm, the spring-loaded contacts maintain reliable contact even with mechanical movement or vibration. The design complies with UL 94V-0 flammability standard, highlighting its safety features.

Manufactured in Switzerland, it meets stringent quality requirements suitable for precision electronics assembly and maintenance, electronics testing setups, and other demanding applications.

Features 10 gold-plated brass contacts ensuring reliable conductivity. Fibreglass reinforced polyethylene terephthalate housing provides durable insulation. Operates steadily between -55°C to 125°C temperature range. Designed for through hole mounting with a straight orientation.

Supports a current rating of 3.5A and a voltage of 150V. Solder termination type with male contact gender for secure connections. Spring-loaded contacts with 1.4 mm plunger stroke for stable electrical contact. Compliance with UL 94V-0 flammability standard for safety assurance.

Manufactured in Switzerland ensuring high-quality European standards.

This connector is ideal for electronics manufacturing, repair, and redesign, offering a reliable, long-lasting connection solution that improves production efficiency and reduces maintenance frequency.
