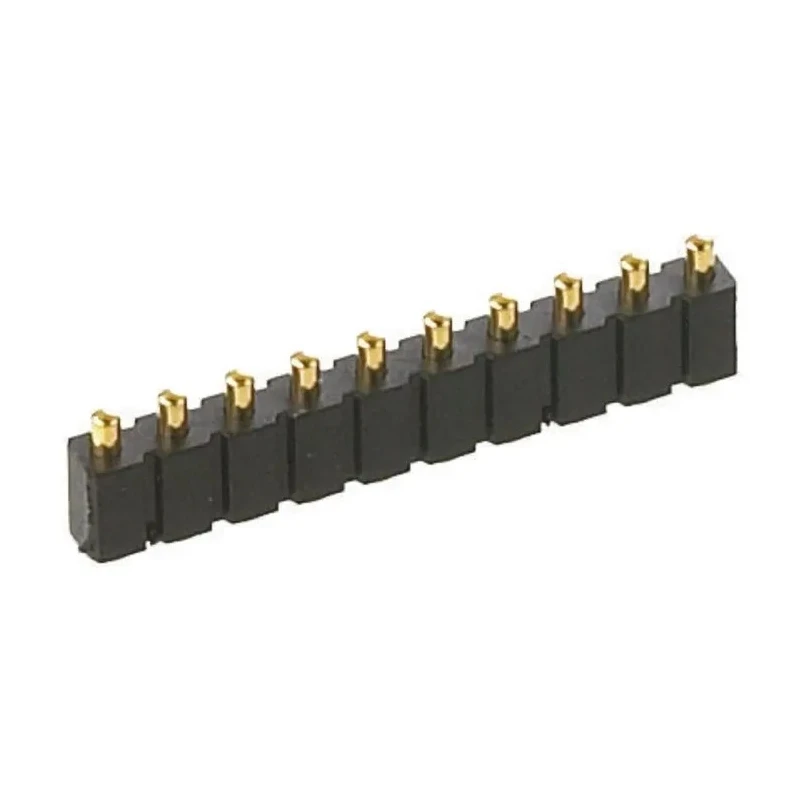

Preci-Dip 811 Series Straight Surface Spring Loaded Connector, 10 Contacts, 2.54 mm Pitch, 1 Row 811-SS-010-30-001101

Preci-Dip 811-SS-010-30-001101 spring loaded connector is a high-quality electrical component designed for surface mount applications on printed circuit boards (PCBs). Featuring 10 gold-plated brass contacts arranged in a single straight row with 2.54 mm pitch, this connector enables reliable multipoint connections with low electrical resistance and excellent vibration resistance. The connector housing is constructed from fibreglass reinforced polyethylene terephthalate, ensuring robust mechanical protection and long service life.

This connector supports a current rating of 3.5 amperes and a voltage rating of 150 volts, suitable for various industrial and electronic applications where stable electrical contact is critical. Operating temperature ranges from -55°C to 125°C, making it suitable for harsh environmental conditions.

The solder termination type combined with male contact gender simplifies PCB assembly processes. The shrouded design offers protection against physical damage and accidental contact during handling and installation.

Preci-Dip spring loaded connectors are used extensively in electronics manufacturing, industrial equipment, automation systems, laboratory instrumentation, and telecommunications modules, delivering dependable electrical performance and mechanical durability.

This connector features straight orientation with spring-loaded contacts for reliable connection. The housing is made from fibreglass reinforced polyethylene terephthalate providing durability. Contact material is brass plated with gold for optimal conductivity and corrosion resistance.

Supports a current rating of 3.5 A and voltage rating of 150 V. Operates reliably within a temperature range of -55°C to 125°C. Designed for solder termination with male contact gender. The connector series is 811 with a 2.54 mm row pitch and single row layout.

Shrouded surface mount type ensures mechanical protection and easy PCB integration. Manufactured in Switzerland, ensuring high quality and precision.

This Preci-Dip 811 series connector is ideal for engineers and technicians seeking a compact, high-reliability spring loaded connector for demanding industrial and electronics applications. Browse EnvMart to explore more connectors and electronic components for all your manufacturing needs.
