Preci-Dip Spring Loaded Connector 12 Contacts 2.54 mm Pitch 1 Row Shrouded Through Hole 150V 3.5A 811-S1-012-10-015101

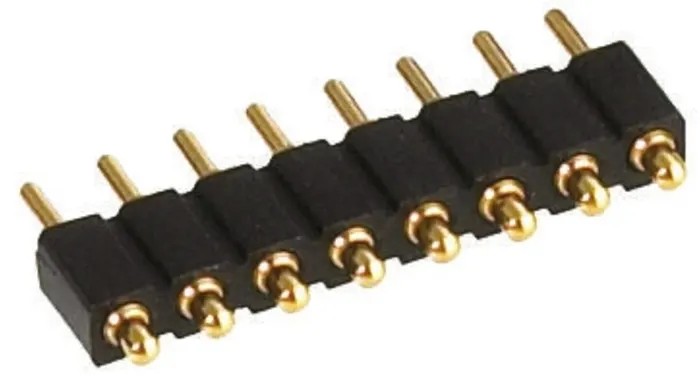

Preci-Dip 811-S1-012-10-015101 spring loaded connector is engineered for industrial and electronic applications requiring reliable PCB connections. This connector features 12 gold-plated brass contacts arranged in a single row with a 2.54 mm pitch. The shrouded straight orientation design provides protection while ensuring secure and stable connections.

The connector is mounted via through-hole technology and utilizes solder termination for robust mechanical and electrical integrity. Its fibreglass reinforced polyethylene terephthalate housing provides high durability and insulation suitable for various demanding environments.

Operating with a current rating of 3.5A and voltage up to 150V, the connector supports applications within a broad temperature range from -55°C to 125°C, ensuring performance stability under varied conditions.

The spring-loaded contacts maintain low resistance and ensure continuous multipoint electrical contact, which is essential in environments with vibrations or mobile components. This improves connection reliability and longevity compared to conventional static contacts.

Spring-loaded contacts provide low and stable electrical resistance values. Shrouded, straight orientation ensures protection and reliable contact. Made with brass contact material plated in gold for durability. Designed for 3.5A current and 150V voltage operation.

Fibreglass reinforced polyethylene terephthalate housing offers robust insulation. Solder termination suitable for through-hole PCB mounting. Operates within -55°C to 125°C temperature range. 12 contact points arranged in a single row with 2.54 mm pitch.

Manufactured in Switzerland adhering to high quality standards.

This spring loaded connector is widely used in industrial, electronic components manufacturing, assembly lines, and testing equipment, where stable and reliable multipoint connections are critical. It is an excellent solution for high-density PCB interconnections that require mechanical resilience alongside electrical reliability.
