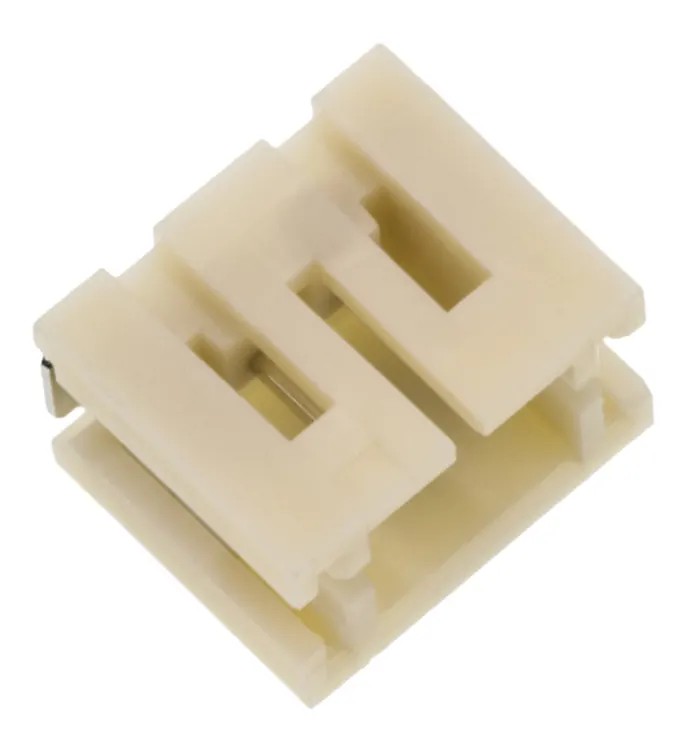

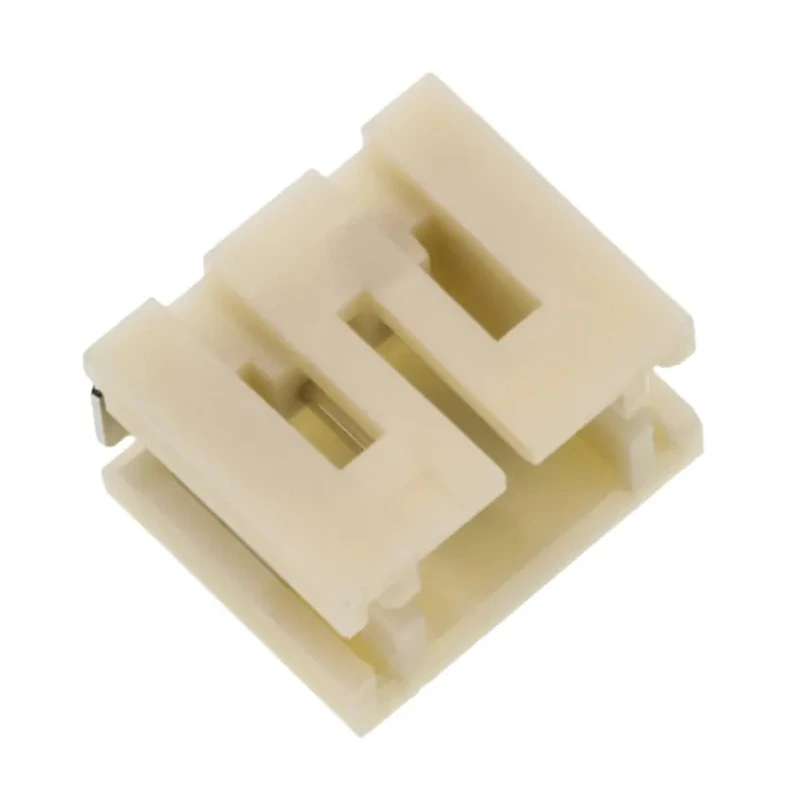

JST PH Series Straight Surface PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded B2B-PH-SM4-TB(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Straight Surface PCB Header 2 Contact 2 mm Pitch 1 Row Shrouded B2B-PH-SM4-TB(LF)(SN)



Category PCB Connectors Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Straight
Current	2A
Model	B2B-PH-SM4-TB(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Designed for high density internal wiring to printed circuit boards.
Features a fully shrouded header for secure connections.
Supports a current rating of 2A at 100 V voltage.
Constructed with polyamide housing and copper alloy contacts with tin plating.
Surface mount model with solder termination type and straight orientation.
Operates within a temperature range of -25°C to 85°C.
Compatible with wire sizes from 32 AWG to 24 AWG.
Incorporates a printed circuit board retention mechanism for stability.

Product Description

JST B2B-PH-SM4-TB(LF)(SN) is a PH Series Straight Surface PCB Header designed for reliable, compact, and cost-effective connections between internal wires and printed circuit boards. This wire-to-board connector features 2 contacts with 2 mm pitch in a single row configuration, fully shrouded to ensure secure mating and protection.

Constructed with a durable polyamide housing and copper alloy contacts plated with tin, it supports a current capacity of 2A and operates safely at voltages up to 100 V. The header is designed for surface mounting and employs solder termination for efficient assembly. Its straight orientation and low insertion force design facilitate easy and reliable installation.

The product is rated for operation in temperatures ranging from -25°C to 85°C, suitable for industrial and commercial electronic equipment. It supports wire sizes from 32 AWG to 24 AWG and includes a PCB retention mechanism to maintain connection stability even in high vibration environments.

This PCB header is ideal for applications in electronics manufacturing, assembly lines, industrial controls, automation equipment, telecommunications, and other uses requiring consistent and durable board connections.

Designed for high density internal wiring to printed circuit boards. Features a fully shrouded header for secure connections. Supports a current rating of 2A at 100 V voltage. Constructed with polyamide housing and copper alloy contacts with tin plating.

Surface mount model with solder termination type and straight orientation. Operates within a temperature range of -25°C to 85°C. Compatible with wire sizes from 32 AWG to 24 AWG. Incorporates a printed circuit board retention mechanism for stability.

Contact gender is male and connector system is wire-to-board. Suitable for electronics manufacturing and assembly applications. Explore the comprehensive lineup of JST connectors and related electronic components at EnvMart to enhance your projects and production efficiency.

Explore more products in our PCB Connectors category.
