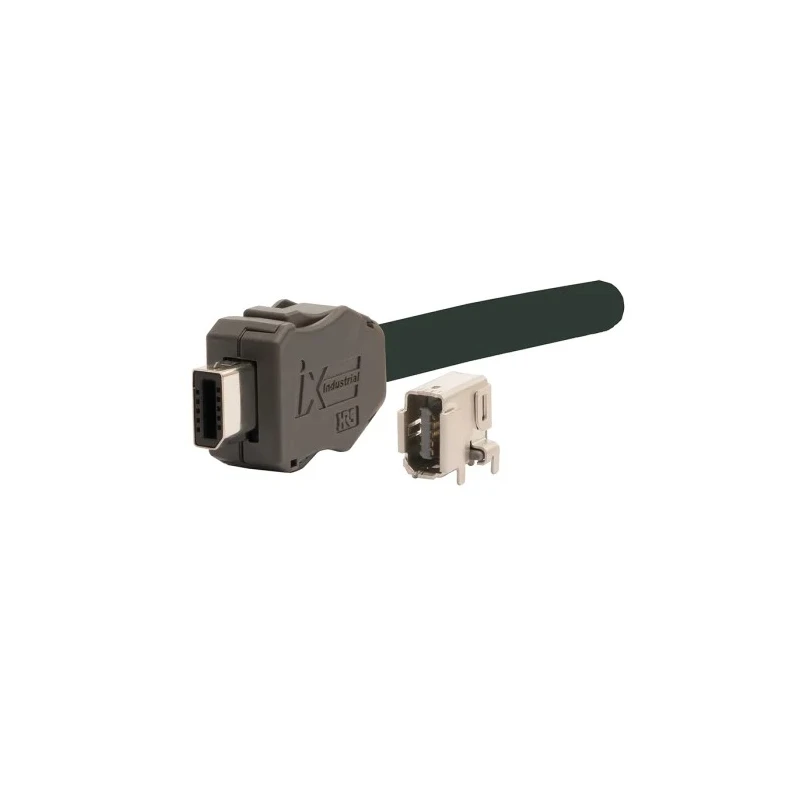

Hirose IX Surface Vertical Mini I/O Connector Female 10 Way Shielded IX80G-A-10P(01)
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Colour | Grey |
| Orientation | Vertical |
| Height | 9mm |
| Model | IX80G-A-10P(01) |
| Depth | 7.8mm |
| Connector Type | Jack |
| Number Of Ways | 10 |
| Width | 11mm |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | IX |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Interfaces | Ethernet performance |
| Shield Type | Shielded |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- Reduced size by 75% compared to conventional RJ-45 modular connectors.
- Single action lock design for easy mating and secure connection.
- Robust PCB-mounted receptacle shell resistant to mechanical wrenching forces.
- Optimized shielding ensures high EMC resistance for safe data transmission.
- Supports Cat.5e (1Gbps) and Cat.6A (10Gbps) high-speed Ethernet performance.
- Constructed with liquid crystal polymer housing and copper alloy contacts for durability.
- Surface mount with vertical orientation and solder termination type.

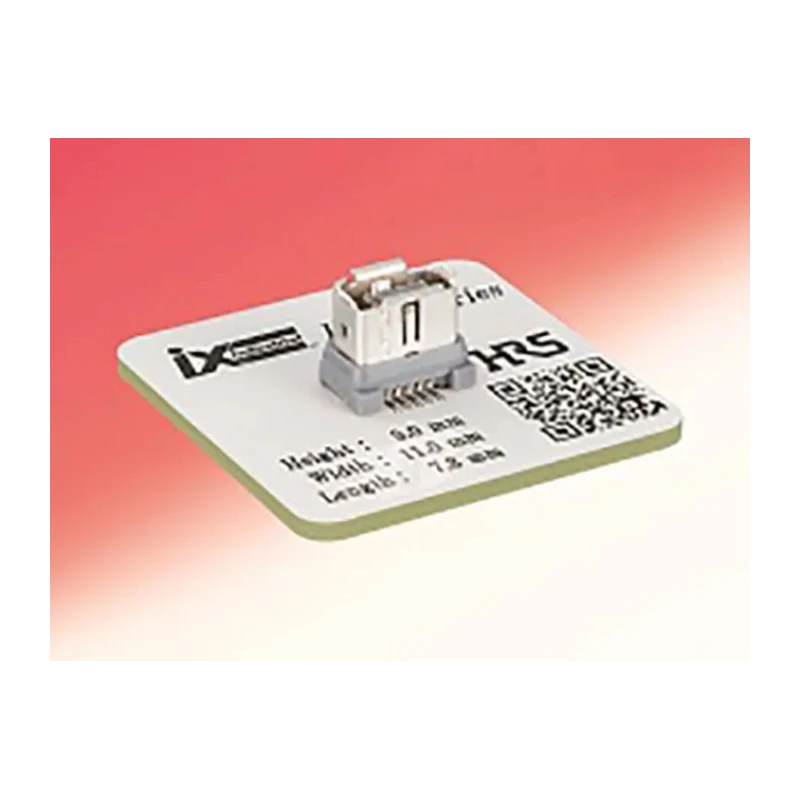

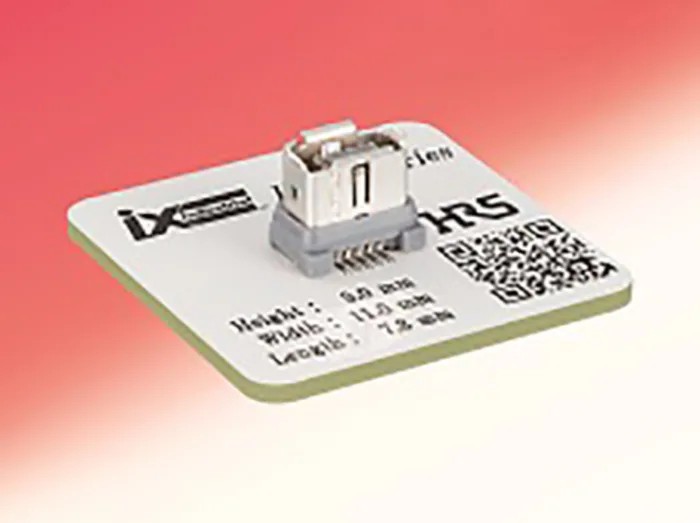

- Compact dimensions of 9mm height, 7.8mm depth, and 11mm width.
Product Description
Hirose IX80G-A-10P(01) is a surface-mount vertical mini I/O connector female with 10 ways and shielded construction designed for compact and high-performance electronic systems. Its reduced size offers 75% space saving compared to conventional RJ-45 connectors, allowing efficient installation in limited spaces.
The connector features a single action lock mechanism ensuring secure and reliable connection with audible confirmation. The robust PCB-mounted receptacle shell minimizes impact from wrenching forces, protecting contacts for extended durability. The housing is made of liquid crystal polymer, paired with copper alloy contacts that provide excellent electrical conductivity and mechanical strength.
The shielded design offers high electromagnetic compatibility (EMC) resistance, critical for stable data transmission in industrial, networking, and telecommunications environments. It supports Cat.5e (1Gbps) and Cat.6A (10Gbps) Ethernet standards, meeting demanding high-speed data requirements.
Mounting versatility is enhanced by the ability to parallel mount at 10mm pitch, while the Pin-In-Paste (PIP) mounting technique strengthens PCB mounting durability and reduces assembly time. Its compact dimensions of 9mm height, 7.8mm depth, and 11mm width make it suitable for space-constrained applications.
This connector is ideal for use in industrial automation, networking equipment, telecommunications, and electronic component assemblies demanding reliable, high-speed, and shielded connectivity solutions.
Compact size reduces installation footprint by 75% compared to RJ-45 connectors. Single action locking ensures quick and secure mating with audible click. Robust PCB mounting design protects contacts from mechanical stress.
High EMC resistance guarantees safe and noise-free data transmission. Supports high-speed Ethernet standards Cat.5e and Cat.6A. Liquid crystal polymer housing and copper alloy contacts provide durability. Surface mount, vertical orientation with solder termination for PCB assembly.
Enables parallel mounting at 10mm pitch to optimize board layout. Pin-In-Paste mounting for enhanced assembly strength and efficiency. Explore more in the Mini I/O Connectors category to find compatible components and accessories for your industrial and electronics design needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 9mm in height, 7.8mm in depth, and 11mm in width, making it suitable for space-constrained applications.
It is a female jack connector designed for surface mount applications with a vertical orientation.
The housing is made of liquid crystal polymer, and the contacts are constructed from copper alloy, providing good electrical conductivity and mechanical strength.
It features a single action lock design that ensures a secure connection with audible confirmation, enhancing reliability during use.
This connector supports Cat.5e (1Gbps) and Cat.6A (10Gbps) high-speed Ethernet performance, suitable for demanding data transmission needs.
It has a shielded design that provides high EMC resistance, ensuring safe and noise-free data transmission in various environments.
The IX80G-A-10P(01) is designed for surface mounting with solder termination, suitable for PCB assembly.
Yes, it allows for parallel mounting at a 10mm pitch, optimizing board layout for various applications.
This model features 10 ways, allowing for multiple connections in a compact form factor.
The connector is designed with a vertical orientation, which is beneficial for specific installation scenarios.
The country of origin for this connector is India.
It is ideal for use in industrial automation, networking equipment, telecommunications, and electronic component assemblies that require reliable, high-speed connectivity.
