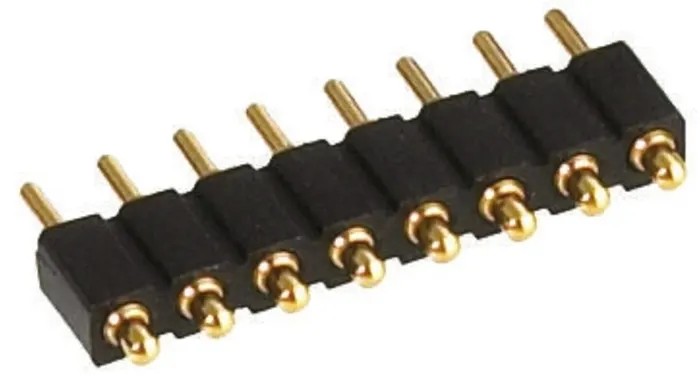

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 11 Contacts, 2.54 mm Pitch, 1 Row 811-S1-011-10-016101

Free Delivery in India | Lowest Global Shipping Charges

Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 11 Contacts, 2.54 mm Pitch, 1 Row 811-S1-011-10-016101

Name: Preci-Dip 811 Series Straight Through Hole Spring Loaded Connector, 11 Contacts, 2.54 mm Pitch, 1 Row 811-S1-011-10-016101
Brand: Preci-Dip
SKU: 215274
Price: 13.41 USD
Availability: InStock



Category PCB Connectors Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Straight
Current	3.5A
Model	811-S1-011-10-016101
Mount Type	Through Hole
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	811
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	11
Contact Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features spring-loaded contacts for stable, low resistance connections.
Suitable for through hole mounting on PCBs with straight orientation.
Constructed with fibreglass reinforced polyethylene terephthalate housing.
Brass male contacts plated with gold for high conductivity and corrosion resistance.
Operates in a temperature range from -55°C to 125°C.
Rated for 3.5A current and 150V voltage operation.
Single row with 2.54 mm pitch ensures precise alignment on PCB.
Shrouded design improves connector protection and reliability.

Product Description

Preci-Dip 811-S1-011-10-016101 Spring Loaded Connector is engineered for high reliability in electronic applications requiring durable electrical connections. It features 11 straight, through hole spring-loaded male contacts arranged in a single row with a 2.54 mm pitch, designed to fit precisely onto PCBs.

The connector housing is made of fibreglass reinforced polyethylene terephthalate, providing excellent mechanical strength and thermal stability from -55°C to 125°C. The brass contacts are gold plated to ensure low electrical resistance and high corrosion resistance, which maintains stable performance even under vibration or movement.

This 811 Series connector operates at a maximum current of 3.5A and voltage rating of 150V, making it suitable for diverse industrial and commercial electronics assemblies requiring reliable multipoint connections.

The spring-loaded contact technology guarantees stable electrical interface with minimal micro-discontinuities, perfect for environments where vibration or movement is expected. This connector's shrouded design enhances durability and protection of contacts during handling and installation.

Features spring-loaded contacts for stable, low resistance connections. Suitable for through hole mounting on PCBs with straight orientation. Constructed with fibreglass reinforced polyethylene terephthalate housing. Brass male contacts plated with gold for high conductivity and corrosion resistance.

Operates in a temperature range from -55°C to 125°C. Rated for 3.5A current and 150V voltage operation. Single row with 2.54 mm pitch ensures precise alignment on PCB. Shrouded design improves connector protection and reliability.

This connector is ideal for a broad range of industrial, electronic manufacturing, laboratory, and commercial applications where dependable, high-quality PCB connections are required. It is compliant with UL 94V-0 standards for material flammability.
