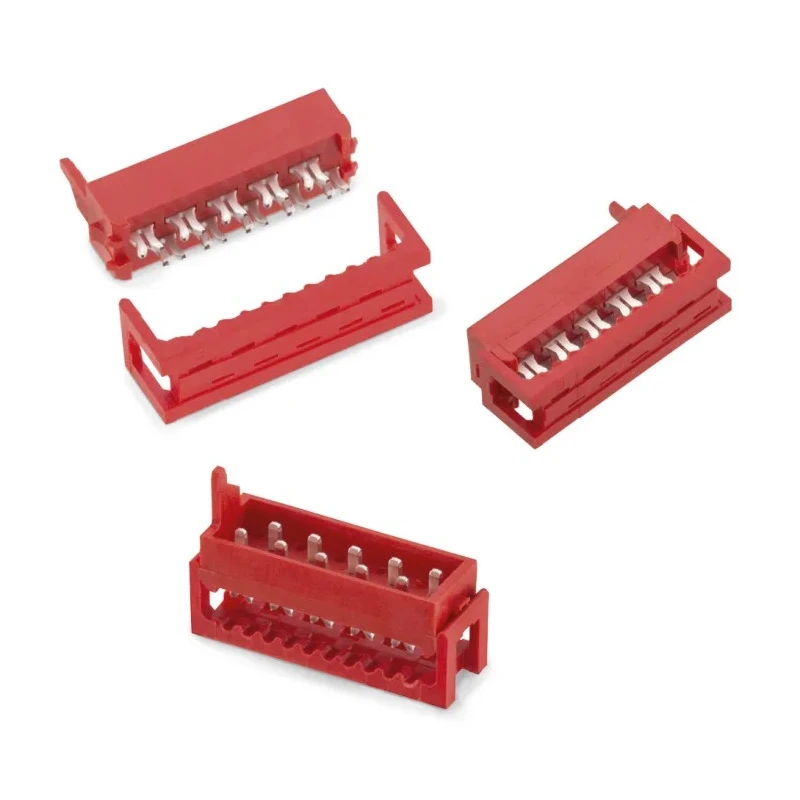

Wurth Elektronik 18-Way IDC Connector Male for Cable, 2 Row, 500V AC, Tin over Nickel Plating 690157001872

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 18-Way IDC Connector Male for Cable, 2 Row, 500V AC, Tin over Nickel Plating 690157001872

Name: Wurth Elektronik 18-Way IDC Connector Male for Cable, 2 Row, 500V AC, Tin over Nickel Plating 690157001872
Brand: Wurth Elektronik
SKU: 218269
Price: 1.87 USD
Availability: InStock



Category IDC Connector Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Voltage	500V ac
Brand	Wurth Elektronik
Orientation	Straight
Current	1A
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Contact Material	Phosphor Bronze
Series	WR-MM
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Tin over Nickel
Number of Contacts	18
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Features 18 contact points arranged in 2 rows for reliable connections.
Rated for a current of 1A and voltage of 500V AC ensuring robust performance.
Designed with straight orientation and shrouded construction for safety and durability.
Contacts are plated with tin over nickel for corrosion resistance.
Housing is made from high-quality polybutylene terephthalate for insulation and durability.
Operates within a temperature range from -40°C to 105°C for varied environments.
Termination type is insulation displacement connection (IDC) for efficient assembly.
Meets WR-MM series specifications with phosphor bronze contact material.

Product Description

Wurth Elektronik 690157001872 IDC Connector is an 18-way male connector designed for use in cable connections with 2 rows of contacts. It is built for industrial, electronic components, and power connector applications, supporting a voltage of 500V AC and current up to 1A. The tin over nickel plating and phosphor bronze contact material ensure reliable conductivity and corrosion resistance. Housed in robust polybutylene terephthalate, it provides strong mechanical stability and insulation.

This connector features a straight orientation and a shrouded design, which helps protect the contacts and increases safety during connection and disconnection processes. The IDC termination type simplifies the assembly process, making it suitable for high-volume manufacturing environments.

Operating temperature ranges from -40°C to 105°C allow usage in diverse industrial and commercial settings. The solder profile must comply with Wurth Elektronik's technical specifications to maintain warranty validity. The product is not intended for washing or immersion in cleaning agents as this could lead to malfunction.

Typical industrial applications include electronic circuit housing, power distribution assemblies, and automation equipment. The WR-MM series standards ensure compatibility with various electronic systems. Careful storage and cleaning methods are recommended to preserve connector integrity.

Features 18 contacts in 2 rows for multi-connection reliability. Electrical ratings of 1A current and 500V AC voltage. Robust shrouded male connector design with straight orientation. Durable polymer housing material providing insulation and strength.

Corrosion-resistant tin over nickel plating on contacts. Suitable for industrial automated assembly via IDC termination. Wide operating temperature range from -40°C to 105°C. Ideal for use in electronic components, power connectors, and cable assemblies.

Discover this IDC Connector and more at EnvMart to fulfill industrial and electronic component needs with trusted Wurth Elektronik quality and standards.
