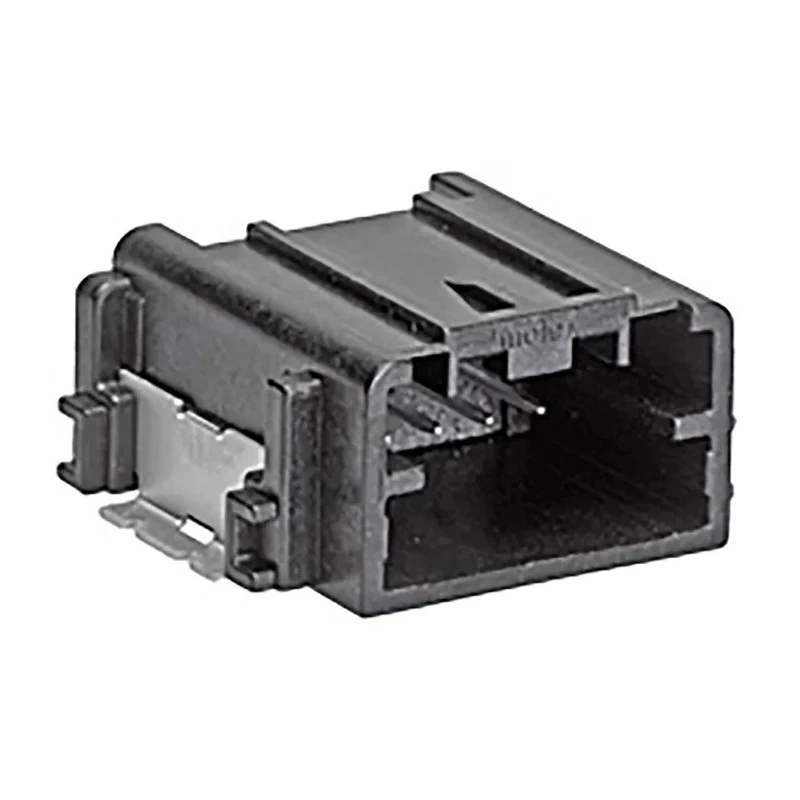

Molex Mini50 Automotive Connector Male Black Surface Mount 4 Contacts 5A 105°C 34912-6040
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Colour | Black |
| Current | 5A |
| Height | 9.6mm |
| Depth | 17.8mm |
| Width | 19.04mm |
| Gender | Male |
| Mount Type | Surface |
| Housing Material | Glass Filled Syndiotactic Polystyrene |
| Contact Material | Brass |
| Series | Mini50 |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 105°C |
| Sub Type | PCB Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | EU RoHS, REACH SVHC |
| Number of Contacts | 4 |
Key Features
- Supports 5A current with up to 105°C operating temperature.
- Features a single row 4 contact configuration with surface mount termination.
- Constructed with brass contacts and glass filled syndiotactic polystyrene housing for durability.
- Compact 19.04mm width, 17.8mm depth, and 9.6mm height dimensions ensure space-saving PCB mounting.
- Includes independent secondary lock for secure terminal retention.
- Meets EU RoHS and REACH SVHC standards for environmental compliance.
- Polarization option A ensures correct mating orientation.
- Designed 50% smaller than USCAR 0.64mm unsealed interfaces for miniaturization.
Product Description
Molex 34912-6040 Mini50 Automotive Connector Male Black Surface Mount 4 Way is a high precision automotive electrical connector engineered for demanding PCB mounting environments. It supports a robust 5A current rating and operates reliably within a temperature range from -40°C to 105°C, making it suitable for automotive and industrial electronic assemblies.
This connector features a compact single row 4 contact configuration with surface mount termination optimized for space-constrained applications. The housing is made of glass filled syndiotactic polystyrene which provides excellent mechanical strength and thermal resistance. Contacts are crafted from brass and plated with gold (Au) for enhanced conductivity and corrosion resistance.
Innovative design elements include an independent secondary lock (ISL) terminal-retention feature to prevent accidental disconnection, polarization option A to ensure proper mating orientation, and board alignment and retention features to simplify assembly. The connector is approximately 50% smaller than standard USCAR 0.64mm unsealed interfaces, enabling miniaturized automotive electronic systems integration.
The black housing with dimensions 19.04mm (width), 17.8mm (depth), and 9.6mm (height) facilitates efficient PCB usage. The connector series Mini50 complies with stringent EU RoHS and REACH SVHC environmental standards, assuring safe use in regulated applications.
Applications include automotive wiring harnesses, engine control units, infotainment systems, and other industrial control electronics where secure, low-profile, multi-contact PCB connectors are essential. This surface mount male connector comes packaged on tape and reel, ready for automated assembly processes.
Supports 5A current and operating temperatures from -40°C to 105°C. Single row 4 contact surface mount male PCB header. Housing of glass filled syndiotactic polystyrene for durability. Brass contact material with gold plating for conductivity and corrosion resistance.
Features independent secondary lock and polarization for reliable connections. 50% smaller design than USCAR 0.64mm unsealed connectors. Complies with EU RoHS and REACH SVHC standards. Ideal for automotive and industrial electronic applications requiring compact connectors.
Explore Molex connectors and automotive electrical connectors on EnvMart for complementary components and system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 5A.
The connector operates reliably within a temperature range from -40°C to 105°C.
The connector has a width of 19.04mm, a depth of 17.8mm, and a height of 9.6mm.
It features a housing made of glass filled syndiotactic polystyrene and brass contacts plated with gold for enhanced conductivity.
This model has 4 contacts in a single row configuration.
It utilizes surface mount termination for PCB mounting.
Yes, it includes an independent secondary lock for secure terminal retention, preventing accidental disconnection.
It complies with EU RoHS and REACH SVHC standards for environmental safety.
It features polarization option A to ensure correct mating orientation during assembly.
This model is suitable for automotive wiring harnesses, engine control units, and infotainment systems, among other industrial control electronics.
The weight of this connector is not specified in the provided data.
It comes packaged on tape and reel, ready for automated assembly processes.
