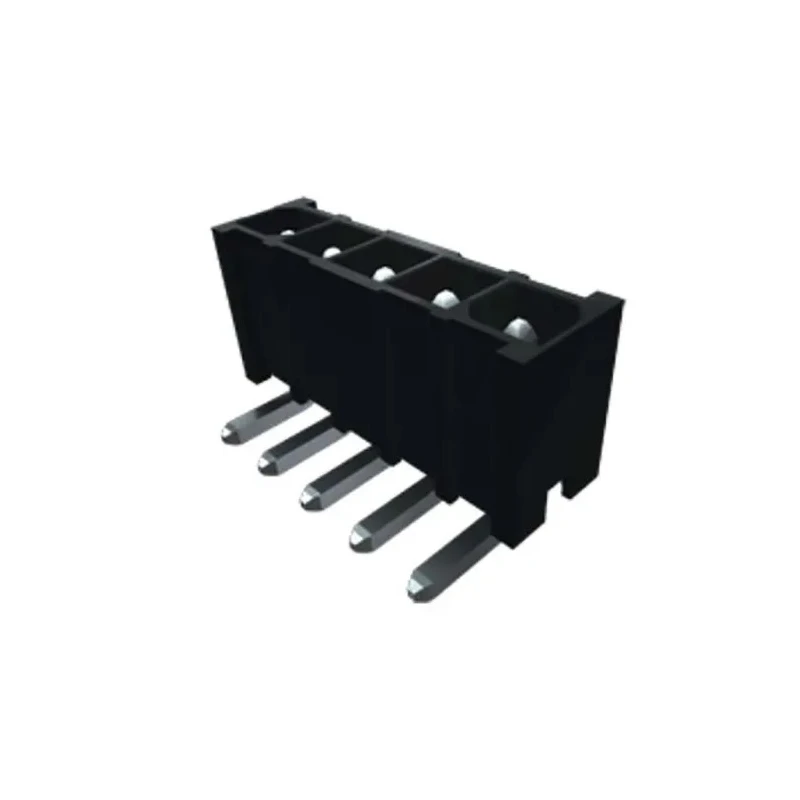

Samtec Right Angle Through-Hole PCB Header, 5 Contacts, 4.19 mm Pitch, 1 Row, Shrouded, IPBT-105-H1-T-S-RA-K
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Model | IPBT-105-H1-T-S-RA-K |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper Alloy |
| Series | IPBT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 4.19mm |
| Contact Plating | Gold or Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Features five shrouded contacts for secure board-to-board connections.
- Offers a 4.19 mm pitch, optimizing spacing for power and signal lines.
- Durable liquid crystal polymer housing withstands high temperatures.
- Copper alloy contacts with gold or tin plating ensure high conductivity and corrosion resistance.
- Right angle, through-hole design enables stable mounting to the PCB.
- Rated for operation between -55°C and 125°C, suitable for industrial environments.
- Single row, shrouded header provides guided and protected mating.
- Solder termination promotes robust mechanical and electrical joint quality.
Product Description
The Samtec IPBT-105-H1-T-S-RA-K is a precision-engineered right angle PCB header designed for industrial, electronic, and instrumentation applications where secure and reliable connections are essential. With five individually shrouded contacts, this header ensures stable board-to-board connectivity and minimizes the risk of misalignment or electrical disturbance.
This header features a 4.19 mm pitch, which provides optimal separation for both power and signal lines. The single-row, shrouded design provides increased protection and guiding during mating, reducing the chance of pin damage or accidental short circuits. Its right angle orientation makes it highly suitable for applications with limited height or where side-entry connectors are required.
The housing is made from high-strength liquid crystal polymer (LCP), renowned for its dimensional stability, resistance to heat, and robust insulation properties. This makes the header suitable for environments where temperature fluctuations are common, with an operational range from -55°C to 125°C.
The header utilizes copper alloy contacts, offering excellent conductivity and mechanical resilience. Contacts are plated in either gold or tin, providing a combination of superior signal transmission and corrosion protection. Reliable solder termination ensures strong mechanical attachment and consistent electrical performance over extended lifecycles.
The Samtec IPBT series is engineered for compatibility with standard PCB assembly processes and is ideal for use in industrial controls, embedded systems, laboratory instrumentation, communications equipment, and high-performance power management circuits. The shrouded and polarized options further enhance mating reliability in demanding settings.
This connector is an excellent choice where precise board-to-board connectivity, robustness, and compactness are required. The through-hole mounting offers a mechanically strong interface for vibration- or shock-prone environments. With a versatile temperature tolerance, it is suitable for applications in industrial electronics, test equipment, and manufacturing automation.
Explore more technical interconnect and PCB Header solutions by browsing the Samtec range in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this PCB header is 4.19 mm, optimizing the spacing for power and signal lines.
It features five contacts, which are individually shrouded for secure board-to-board connections.
The header is rated for operation between -55°C and 125°C, making it suitable for industrial environments.
The housing is made from liquid crystal polymer, while the contacts are made of copper alloy with gold or tin plating.
This model uses solder termination, which promotes a robust mechanical and electrical joint quality.
The orientation of the header is right angle, which is suitable for applications with limited height or side-entry connectors.
It is designed for through-hole mounting, providing a mechanically strong interface for vibration-prone environments.
The contact gender is male, allowing for board-to-board connectivity.
This header is ideal for use in industrial controls, embedded systems, laboratory instrumentation, and communications equipment.
The shrouded design offers increased protection and guides during mating, reducing the risk of pin damage or accidental short circuits.
This PCB header belongs to the IPBT series, which is engineered for compatibility with standard PCB assembly processes.
The country of origin for this product is India.
