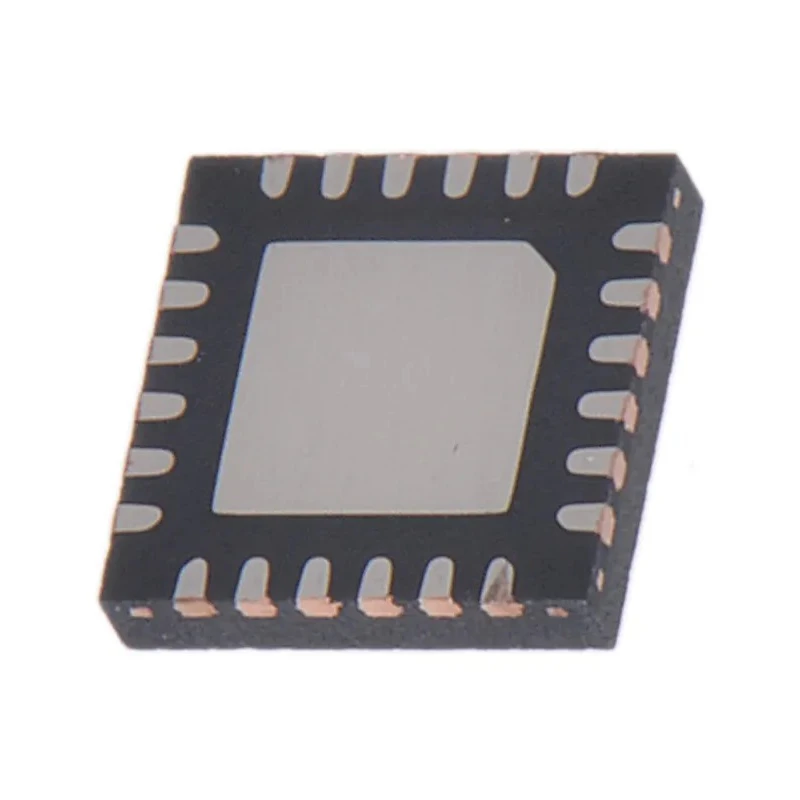

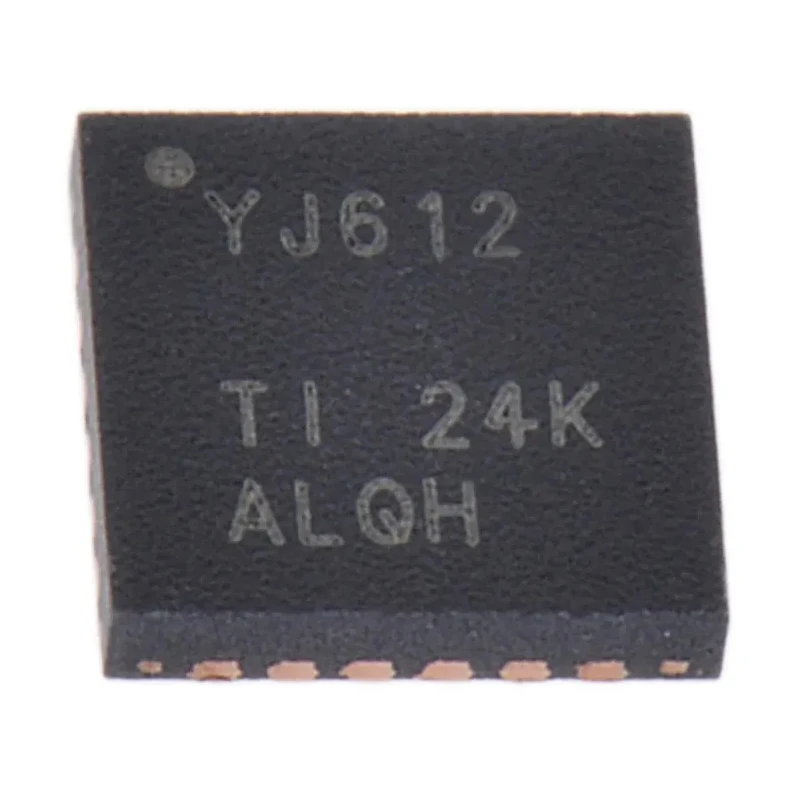

Texas Instruments Multiplexer 6 CMOS Hex SPDT Logic IC 24-Pin WQFN TXS02612RTWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 750μm |
| Length | 4.15mm |
| Model | TXS02612RTWR |
| Width | 4.15mm |
| Mount Type | Surface |
| Output type | CMOS |
| Series | TXS02612RTWR |
| Configuration | Hex SPDT |
| Maximum Operating Temperature | 85°C |
| Package Type | WQFN |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 24 |
| Number of Elements per Chip | 6 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 1.1V |
| Multiplexer/Demultiplexer | Multiplexer, Demultiplexer |
Key Features
- Belongs to the CMOS logic family ensuring low power consumption.
- Features six hex SPDT switches per chip for multiplexing.
- Packaged in compact 24-pin WQFN surface mount format.
- Operates with supply voltage from 1.1V to 3.6V.
- Functions reliably between -40°C to 85°C operating temperatures.
- Compact dimensions of 4.15mm length and width, 750μm height.
- Suitable for multiplexing and demultiplexing signal applications.
- Certified RoHS compliant ensuring environmental safety.
Product Description
Texas Instruments TXS02612RTWR is a high-performance multiplexer and demultiplexer IC designed for precise signal routing in electronic applications. It features a CMOS logic family with six independent hex SPDT switches encapsulated in a compact 24-pin WQFN surface mount package. The device operates efficiently within a supply voltage range of 1.1V to 3.6V, making it suitable for low-voltage applications.
It is built to withstand industrial temperature conditions ranging from -40°C to 85°C, making it reliable for various environmental conditions. The hex SPDT configuration allows for multiple single-pole double-throw switching on a single chip, ideal for complex signal multiplexing tasks.
The compact form factor, measuring 4.15mm by 4.15mm with a height of 750μm, supports dense PCB layouts and space-constrained designs. Surface mount mounting type facilitates automated assembly in manufacturing processes.
Compliant with RoHS standards, this multiplexer IC meets environmental regulations for reduced hazardous substances, suitable for commercial, industrial, and automotive electronics applications.
CMOS logic family ensures low power consumption and high noise immunity. Six hex SPDT switches for versatile signal multiplexing and demultiplexing. 24-pin WQFN package supports surface mounting for compact PCB design. Operating voltage range between 1.1V and 3.6V for flexible power configurations.
Wide temperature range of -40°C to 85°C for robust industrial use. Small footprint of 4.15mm length and width, with a 750μm height dimension. RoHS compliant to meet environmental safety requirements.
This multiplexer IC is widely applicable in industrial machines, electronic instruments, telecommunication devices, and automated control systems requiring reliable multiplexing and demultiplexing of signals.
Explore further Texas Instruments semiconductor products and multiplexer ICs in EnvMart’s electronics and electrical components category for sophisticated electronic design solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently within a supply voltage range of 1.1V to 3.6V.
This model functions reliably between -40°C and 85°C, making it suitable for industrial applications.
It features six independent hex SPDT switches per chip for versatile signal multiplexing and demultiplexing.
The compact dimensions are 4.15mm in length and width, with a height of 750μm.
It is packaged in a compact 24-pin WQFN surface mount format, facilitating automated assembly.
Yes, this multiplexer IC is certified RoHS compliant, ensuring it meets environmental safety standards.
It belongs to the CMOS logic family, which ensures low power consumption and high noise immunity.
The output type is CMOS, suitable for various electronic applications.
It utilizes a surface mount type, which supports dense PCB layouts and space-constrained designs.
It is widely applicable in industrial machines, electronic instruments, telecommunication devices, and automated control systems.
This multiplexer IC has a pin count of 24, allowing for multiple connections.
It supports a hex SPDT configuration, allowing for multiple single-pole double-throw switching on a single chip.
