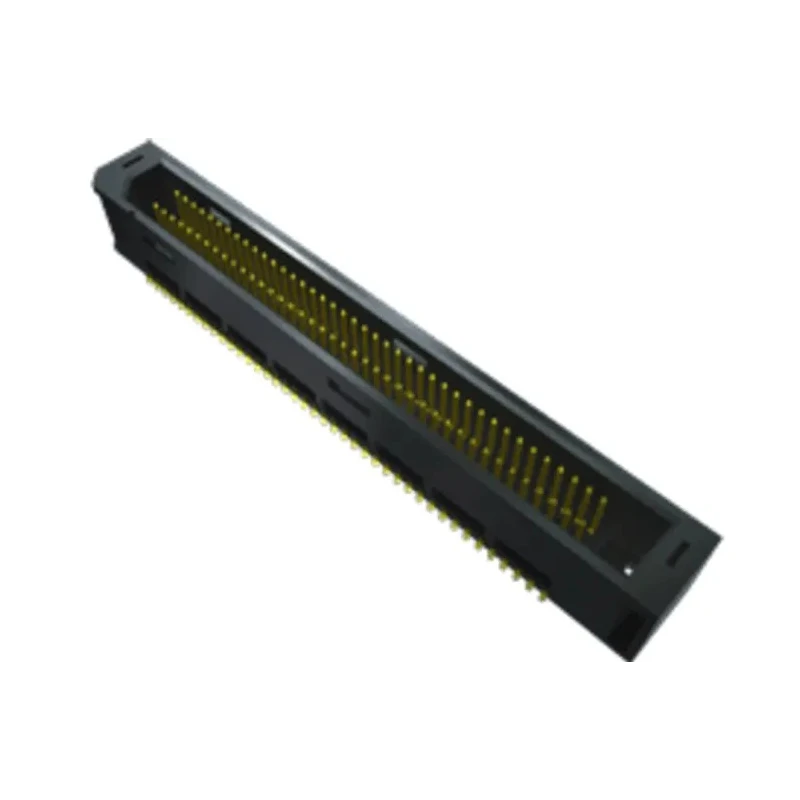

Samtec TEM Series Straight Through Hole PCB Header, 30 Contacts, 0.8 mm Pitch, 2 Row, Shrouded TEM-115-02-03.0-H-D-WT

The Samtec TEM Series Straight Through Hole PCB Header, model TEM-115-02-03.0-H-D-WT, is an industrial-grade connector used for robust board-to-board connections in electronic assemblies. This header features 30 male contacts arranged in two rows, offering reliable connectivity for dense PCB designs where compact dimensions are required.

With a fine pitch of 0.8 mm, the TEM series enables space-efficient layout while maintaining structural integrity. The contacts are constructed from high-quality phosphor bronze and finished with gold plating, ensuring excellent conductivity, corrosion resistance, and long-term performance for digital and analog signal transmission. The shrouded housing design adds further protection for the contact pins, reducing the risk of accidental bending or short circuiting during installation or maintenance.

The header is designed for straight through-hole mounting, which facilitates firm soldering onto the PCB, enhancing both mechanical durability and electrical continuity. Glass-filled polyester is used for the housing material, providing superior insulation and mechanical strength in diverse operating environments. Its solder termination type streamlines the assembly process while ensuring enduring connections.

The TEM-115-02-03.0-H-D-WT operates reliably within a wide temperature range from -55°C to +125°C, making it well-suited for industrial, laboratory, and commercial electronic applications, including communication equipment, instrumentation, automation systems, and embedded devices. Each contact offers a current rating of up to 2.9A, suitable for both signal and power distribution needs.

Designed to compatible with board-to-board connector systems, the product supports a variety of circuit arrangements, thanks to its male contact gender and straight orientation. The shrouded design ensures additional protection for the pins, especially in environments prone to mechanical stress or contamination.

Key technical highlights include two rows of contacts, gold-plated phosphor bronze terminals, glass-filled polyester housing, and reliable soldering capability, making it an optimal choice for electrical engineers and designers seeking high-quality PCB headers. Its compliance with recognized standards guarantees operational safety and reliability.

Use cases span industrial electronics, automation, laboratory instrumentation, and embedded system design. For more advanced PCB connectivity components, explore further Samtec TEM Series PCB Headers and related board-to-board connectors in the EnvMart catalogue.
