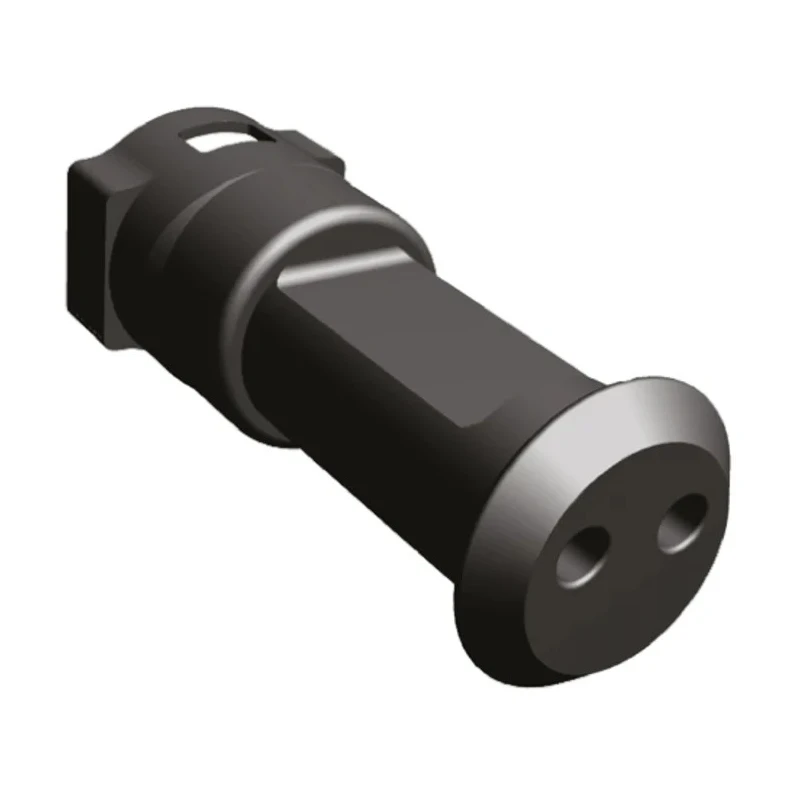

TE Connectivity Econoseal E Automotive Connector Male Black Cable 2 Way Crimp Termination 826883-1

TE Connectivity 826883-1 Econoseal E Automotive Connector is a male 2 way crimp termination connector engineered for reliable sealed connections in automotive and industrial environments. This connector features a black PA66 GF 13 nylon housing with a neoprene seal and cone style collar that supports heat shrink tube or rubber boot sealing options.

The connector is dimensioned compactly with a width and diameter of 17.4 mm, height of 19.3 mm, and depth of 48.5 mm making it suitable for confined spaces. It accepts cables from 0.5 mm² up to 2.5 mm² cross-sectional area ensuring wiring versatility. The contacts are tin-plated brass rated for continuous current of 20A and operational temperature up to 105°C, providing robust electrical and thermal performance.

The Econoseal connector series is designed to meet stringent automotive specifications and also finds use in any application requiring a reliable sealed connector. Its crimp termination and male contact gender coupled with polarization features aid in secure mating and ease of assembly.

The housing material is nylon 66 which confers high mechanical strength while resisting environmental degradation. The connector conforms to RoHS compliance standards indicating environmentally responsible material choices.

Connector designed for automotive and industrial sealed wiring applications. Features black nylon body with reliable neoprene seal for moisture protection. Accepts cable size between 0.5mm² to 2.5mm² for flexible wiring.

Rated for 20A current and temperature up to 105°C for robust performance. Made with nylon 66 housing and tin-plated brass pins for durability and corrosion resistance. Compact dimensions of 17.4mm width and diameter, and 48.5mm depth for space saving.

Termination type is crimp with male gender and single row 2 contacts configuration. Complies with RoHS standards ensuring environmentally safe materials. Manufactured in Hungary to meet automotive industry quality standards.

This connector is ideal for applications in automotive, industrial controls, electrical wiring harnesses, HVAC systems, and machinery requiring robust sealed electrical connections. EnvMart provides high-quality TE Connectivity Econoseal series connectors trusted by professionals worldwide.
