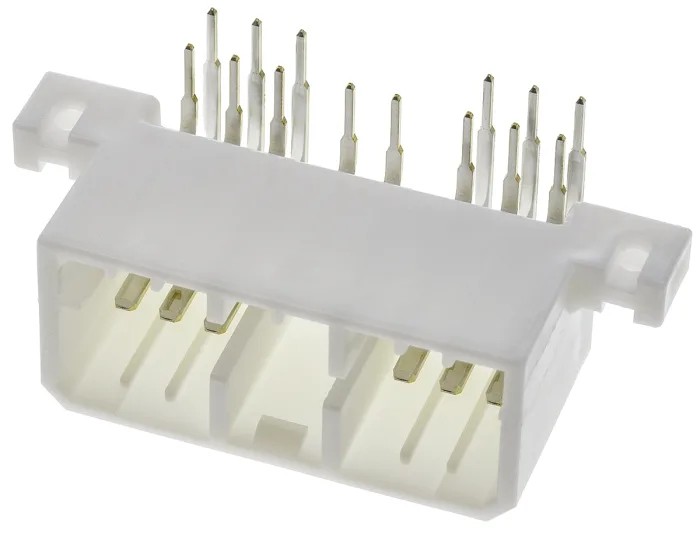

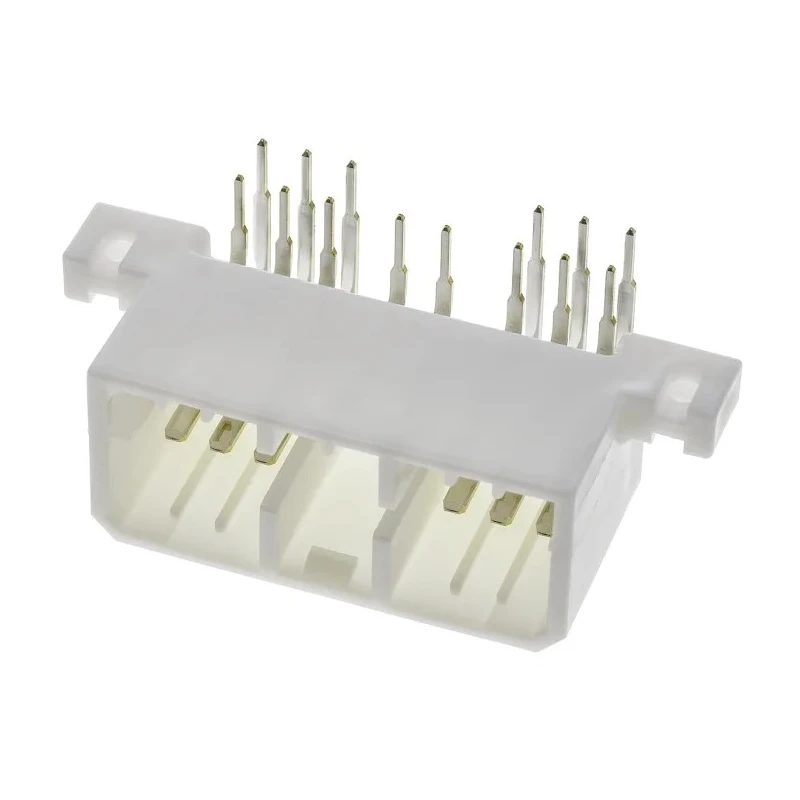

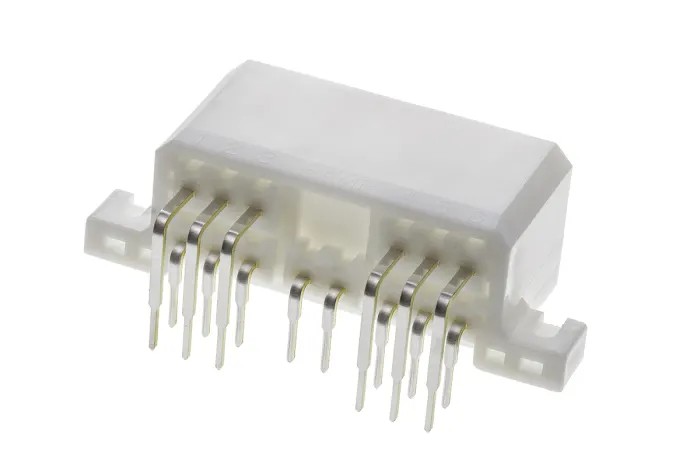

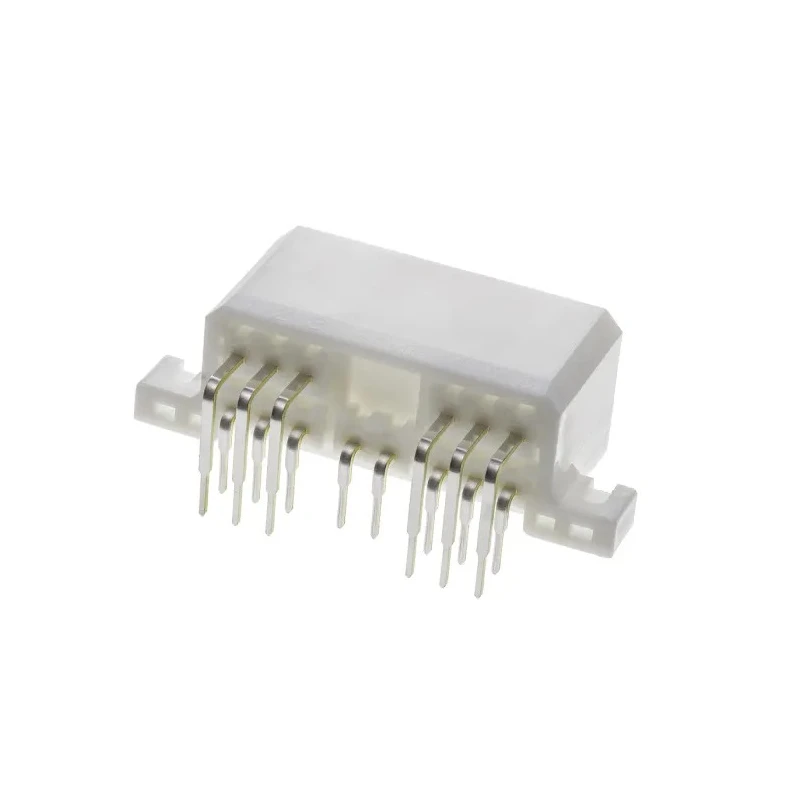

TE Connectivity MULTILOCK 070 Automotive Connector Male Natural Through Hole 14 Way Solder Termination 173860-1
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Colour | Natural |
| Current | 15A |
| Height | 15.8mm |
| Model | 173860-1 |
| Depth | 49.8mm |
| Width | 18.5mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate Fibreglass |
| Contact Material | Brass |
| Series | MULTILOCK 070 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Interfaces | lance design |
| Number of Rows | 2 |
| Standards/Approvals | UL 94V-2, RoHS, REACH, ELV |
| Contact Plating | Tin |
| Number of Contacts | 14 |
Key Features
- Compact and durable design with high density 3.5 mm pitch.
- Male gender with 14 contacts arranged in 2 rows.
- Solder termination for secure wire-to-board connection.
- Rated for 15A current and temperature range from -65°C to 105°C.
- Polybutylene terephthalate fiberglass housing for mechanical strength.
- Brass contacts plated with tin to prevent corrosion.
- Integral double locking mechanism prevents partial insertion.
- Complies with UL 94V-2, RoHS, REACH, and ELV standards.
Product Description
TE Connectivity 173860-1 MULTILOCK 070 Automotive Connector is a high-density, compact connector designed specifically for automotive wire-to-wire and wire-to-board connectivity. Featuring a durable natural polybutylene terephthalate fiberglass housing and brass contacts with tin plating, this male connector supports a current rating of 15A.
The connector includes 14 solder termination contacts arranged in two rows with 3.5 mm pitch spacing. It utilizes a through-hole mount method to ensure robust board attachment. The housing incorporates a lance design to protect contacts from damage caused by rocking action (KOJIRI Action) during mating and unmating cycles.
The MULTILOCK 070 series includes a reliable integral double locking system that maintains secure contact retention and prevents partial insertion, enhancing connection safety in automotive environments. This connector is suitable for various automotive systems including powertrain, safety, security, driver information, and body and chassis applications.
Compact and durable connector design with high density 3.5 mm pitch. Male 14-way contacts in a two-row configuration. Solder termination type for strong electrical and mechanical connection. 15A current rating with wide thermal tolerance from -65°C to 105°C.
Polybutylene terephthalate fiberglass housing provides mechanical stability. Brass contacts plated with tin ensure excellent conductivity and corrosion resistance. Integral double locking mechanism secures contact retention and prevents partial mating.
Compliant with safety and environmental standards including UL 94V-2, RoHS, REACH, and ELV.
Manufactured in Japan, the TE Connectivity MULTILOCK 070 series meets stringent automotive industry requirements. Its versatility makes it an ideal choice for automotive manufacturing and repair sectors requiring dependable, high-density connectors.
Explore more industrial-grade connectors and automotive components on EnvMart for your specialized applications and procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 15A, making it suitable for various automotive applications.
The dimensions of this connector are 15.8mm in height, 18.5mm in width, and 49.8mm in depth.
It features a solder termination type for a strong electrical and mechanical connection.
The connector operates within a temperature range of -65°C to 105°C, accommodating various environmental conditions.
This automotive connector has 14 contacts arranged in two rows.
The housing is made of polybutylene terephthalate fiberglass, and the contacts are brass plated with tin for corrosion resistance.
It utilizes a through-hole mounting method for robust attachment to the board.
This model complies with UL 94V-2, RoHS, REACH, and ELV standards, ensuring safety and environmental compliance.
It incorporates a lance design to protect contacts from damage caused by rocking action during mating and unmating cycles.
This connector is male gender, designed for secure connections in automotive applications.
This connector is manufactured in Japan, meeting stringent automotive industry requirements.
This model is part of the MULTILOCK 070 series, known for its high-density and compact design.
