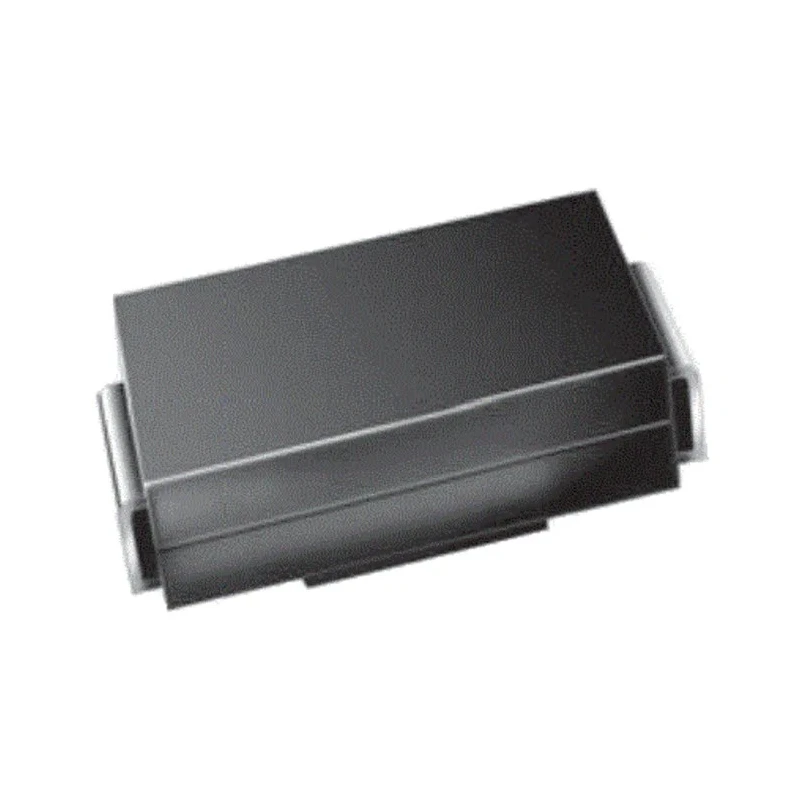

Vishay 39 V General Purpose Zener Diode Single 1 W Surface Mount DO-214AC (SMA) SML4754A-E3/61

Free Delivery in India | Lowest Global Shipping Charges

Vishay 39 V General Purpose Zener Diode Single 1 W Surface Mount DO-214AC (SMA) SML4754A-E3/61

Name: Vishay 39 V General Purpose Zener Diode Single 1 W Surface Mount DO-214AC (SMA) SML4754A-E3/61
Brand: Vishay
SKU: 218061
Price: 0.31 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.29mm
Length	4.5mm
Model	SML4754A-E3/61
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	DO-214AC (SMA)
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	1W
Diode Configuration	Single
Test Current It	6.5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	39V
Zener Type	General Purpose
Maximum Zener Impedance	60Ω

Key Features

Nominal Zener voltage of 39 V with ±5% tolerance.
Maximum power dissipation rating of 1 watt.
Low maximum reverse leakage current of 5 microamperes.
Two-pin surface mount package type DO-214AC (SMA) for compact PCB integration.
Test current is 6.5 mA ensuring stable operation.
Maximum Zener impedance is 60 ohms for consistent voltage regulation.
Operating temperature range from -65°C to 150°C for industrial applications.
Measuring 4.5 mm in length and 2.29 mm in height for space-efficient mounting.

Product Description

Vishay SML4754A-E3/61 is a 39 V general purpose Zener diode designed for voltage regulation and protection in electronic circuits. This single diode configuration supports stable voltage regulation with power dissipation up to 1 watt within a compact surface mount DO-214AC (SMA) package.

Engineered to operate reliably between temperatures of -65°C and 150°C, this diode is suitable for diverse industrial, automotive, and electronic component applications. Its low maximum reverse leakage current of 5 microamps and Zener impedance of 60 ohms ensure minimal energy loss and consistent voltage clamp performance.

The diode's test current of 6.5 mA verifies precise voltage regulation behavior. Its small dimensions (4.5 mm length, 2.29 mm height) enable integration into tightly packed printed circuit boards where size and efficiency are paramount.

Certified to the AEC-Q101 automotive standard, the SML4754A-E3/61 diode meets rigorous reliability requirements, making it appropriate for automotive electronic systems and other demanding environments.

Nominal Zener voltage of 39 V with ±5% tolerance ensures precise voltage regulation. Maximum power dissipation of 1 W supports robust operation under load. Surface mount DO-214AC (SMA) package for efficient assembly and soldering.

Wide operating temperature range suitable for harsh industrial settings. Low leakage current minimizes power losses in circuits. Compact form factor facilitates high-density PCB layouts. Automotive standard AEC-Q101 compliance ensures long-term reliability.

Two-pin configuration simplifies circuit design. This Zener diode is ideal for industrial machines, automotive electronics, power supply regulation, and general semiconductor applications. Explore more high-quality semiconductor components in the Electronics & Electricals category at EnvMart for robust and reliable industrial solutions.
