Vishay TEMT Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01

Free Delivery in India | Lowest Global Shipping Charges

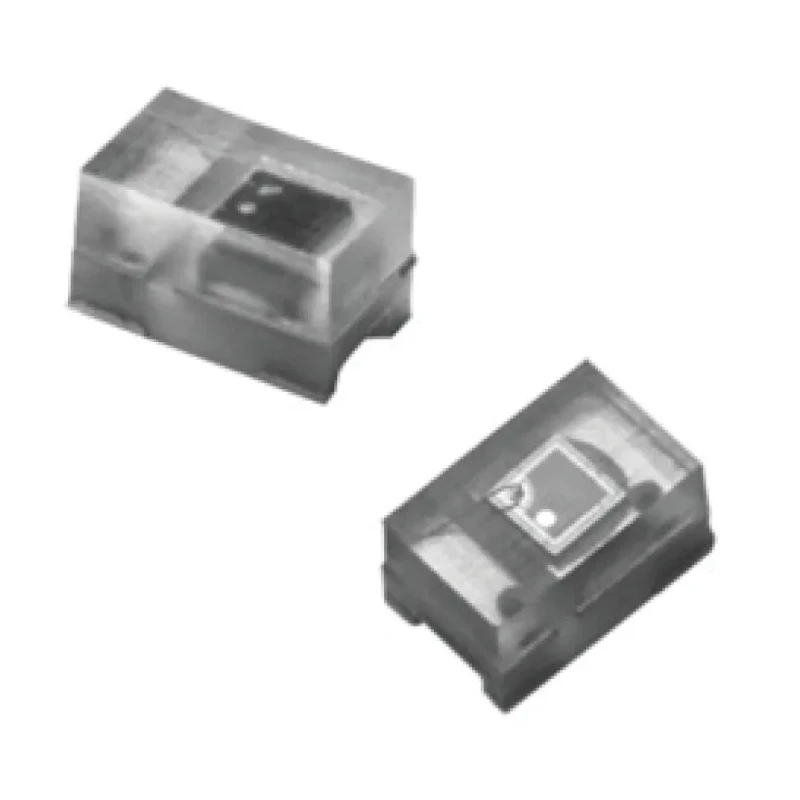

Vishay TEMT Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01

Name: Vishay TEMT Visible Light Phototransistor Surface Mount 2-Pin 0805 Package TEMT6200FX01
Brand: Vishay
SKU: 218024
Price: 0.7 USD
Availability: InStock



Category Phototransistor Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Dimensions	2 x 1.25 x 0.85 mm
Height	0.85mm
Length	2mm
Model	TEMT6200FX01
Packaging	Tape & Reel
Width	1.25mm
Mount Type	Surface
Series	TEMT
Maximum Operating Temperature	100°C
Package Type	0805
Minimum Operating Temperature	-40°C
Number Of Channels	1
Standards/Approvals	J-STD-020
Number of Pins	2
Typical Rise Time	4.5μs
Typical Fall Time	5.6μs
Automotive Standard	AEC-Q101
Peak Wavelength	550nm
Spectrums Detected	Visible Light
Angle of Half Sensitivity	±60 °
Collector Current	20mA
Maximum Light Current	39μA
Maximum Dark Current	50nA
Collector Emitter Voltage	6V
Emitter Collector Voltage	1.5V

Key Features

Compact 0805 surface mount package measuring 2 x 1.25 x 0.85 mm.
Detects visible light with a peak wavelength of 550 nm similar to human eye sensitivity.
Features low maximum dark current of 50 nA and maximum light current of 39 μA.
Wide operating temperature range from -40°C to 100°C ensures reliable performance.
Typical rise time is 4.5 μs and fall time is 5.6 μs for fast response.
Complies with automotive standard AEC-Q101 and J-STD-020.
Ideal for automotive sensors and display backlight control in mobile devices and dashboards.
Supplied in tape and reel packaging suitable for automated insertion.

Product Description

Vishay TEMT6200FX01 Visible Light Phototransistor features a compact 0805 surface mount design with 2 pins, optimized for ambient light sensing applications. It consists of an NPN epitaxial planar phototransistor in a transparent package with high photo sensitivity and suppression filter for near IR radiation.

Its detection angle of half sensitivity is ±60°, matching the human eye’s visible light spectrum with a peak wavelength of 550 nm. The device operates reliably across a temperature range from -40°C to 100°C and supports a collector current of 20 mA with low dark current leakage.

This phototransistor is commonly used in automotive sensors and is compliant with the rigorous AEC-Q101 standard, as well as J-STD-020 standards for reliability and quality. It is especially useful for display backlight control in mobile phones, notebooks, tablets, cameras, and vehicle dashboards.

The compact footprint measuring only 2 mm length, 1.25 mm width, and 0.85 mm height makes it suitable for space-constrained PCB layouts. The product is supplied in tape and reel packaging, compatible with automated surface-mount assembly processes, enhancing production efficiency.

Compact 0805 footprint enables integration in miniature electronic devices. High sensitivity to visible light with IR suppression enhances measurement accuracy. Fast response times with 4.5 μs typical rise and 5.6 μs fall times.

Low dark current of 50 nA minimizes background noise. Wide operating temperature range suitable for industrial and automotive environments. Automotive standard AEC-Q101 ensures suitability for automotive applications. Packaging in tape and reel supports high volume manufacturing.

This Vishay TEMT6200FX01 phototransistor is part of the TEMT series of ambient light sensors designed for industrial, automotive, and consumer electronics applications. It offers reliable, accurate light detection to optimize power use, display brightness, and sensor functionality. Explore more Phototransistors and light sensing components in the Electronics Components category at EnvMart to find complementary parts and advanced sensor solutions.
