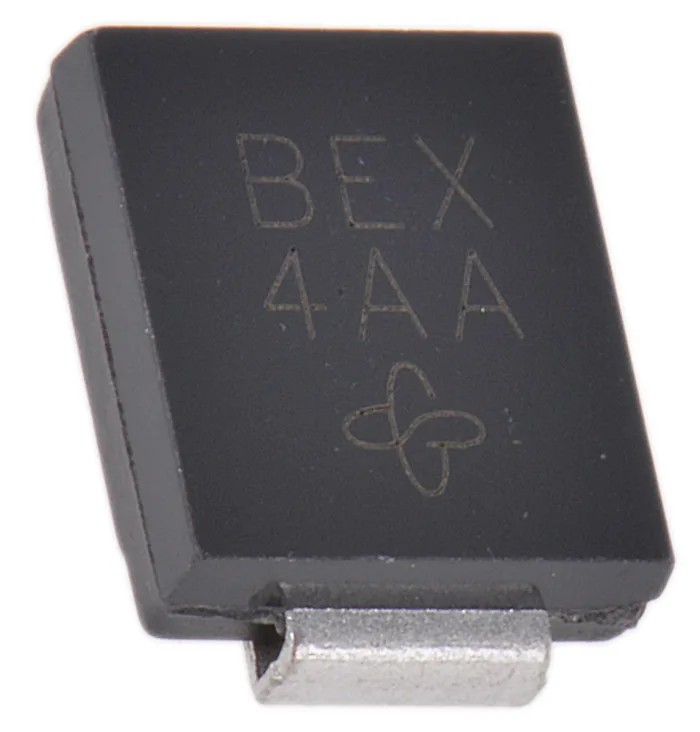

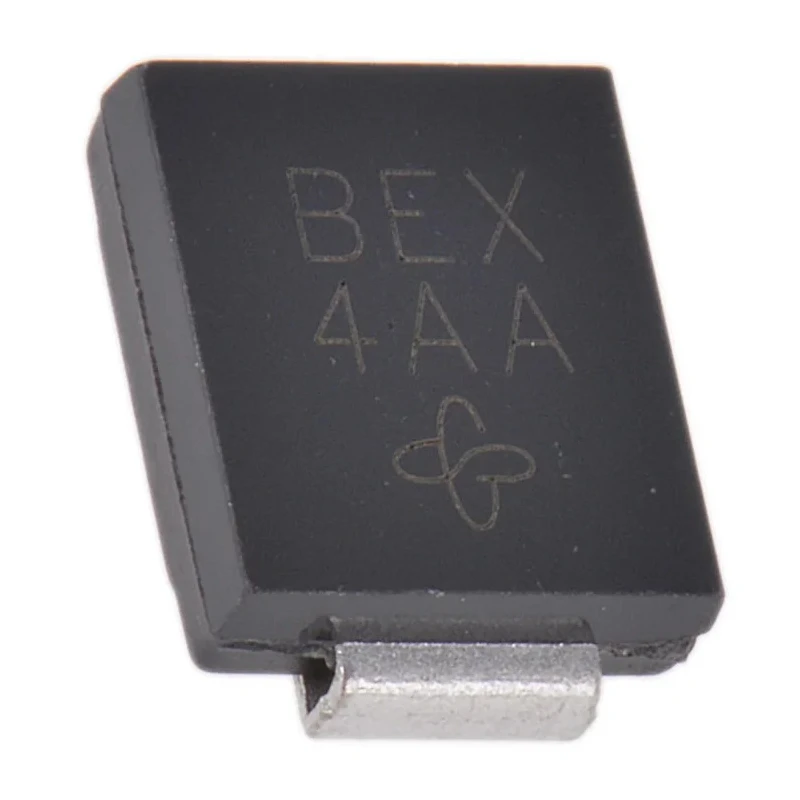

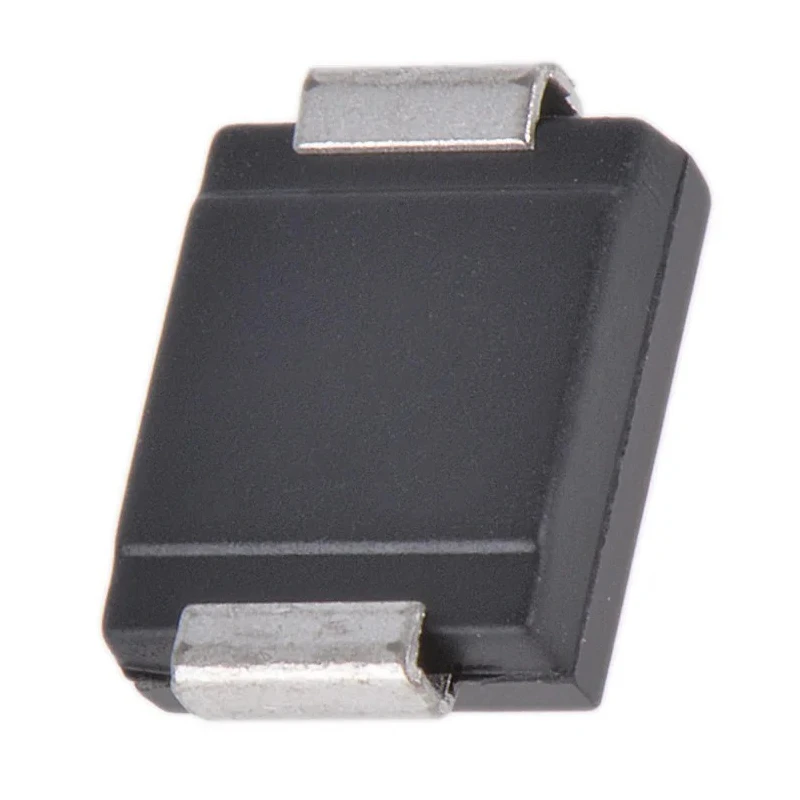

Vishay 1-Element Bi-Directional TVS Diode 1.5 kW Surface Mount SMC Package SMCJ22CA-E3/57T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ22CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | SMC |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 35.5V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 24.4V |
| Maximum Reverse Stand-off Voltage Vwm | 22V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 42.3A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode features bi-directional configuration for effective AC and DC protection.
- Minimum breakdown voltage of 24.4 V ensures reliable voltage clamping.
- Maximum reverse stand-off voltage of 22 V and clamping voltage of 35.5 V protect sensitive circuits.
- Operates efficiently within a temperature range of -55°C to 150°C.
- ESD protection compliant, suitable for robust industrial applications.
- Compact dimensions of 7.11 mm length, 6.22 mm width, and 2.42 mm height optimize PCB space.
- Automotive grade AEC-Q101 certified for high reliability.
- Designed for surface mounting to enable easy assembly in high-volume production.
Product Description
Vishay SMCJ22CA-E3/57T 1-Element Bi-Directional TVS Diode is engineered for transient voltage suppression in industrial and electronic applications requiring robust surge protection. This diode delivers 1.5 kW peak pulse power dissipation ensuring protection against voltage spikes and transients.
Featuring a bi-directional diode configuration, it safeguards circuits against both positive and negative voltage surges, making it ideal for AC and DC power lines. The device is housed in a compact 2-pin SMC surface mount package measuring 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height, suitable for space-constrained PCB layouts.
The diode operates reliably across a wide temperature range from -55°C to 150°C, suitable for harsh environmental conditions including automotive and industrial sectors. It complies with AEC-Q101 automotive standards, ensuring high quality and durability.
Electrical characteristics include a minimum breakdown voltage (Vbr) of 24.4 V, a maximum reverse stand-off voltage (Vwm) of 22 V, and a clamping voltage (Vc) of 35.5 V, providing effective transient voltage suppression. The maximum peak pulse current (Ippm) is 42.3 A with a test current (It) of 1 mA, while the maximum reverse leakage current is only 1 μA, minimizing power loss during normal operation.
The diode configuration is single element with bi-directional direction type. Designed for surface mount (SMC) installation on PCBs. Electrical peak pulse power dissipation of 1.5 kW for high surge capacity. Low leakage current and high clamping efficiency optimize circuit protection.
Meets industrial and automotive quality standards for reliable long-term performance. Compact and robust package suitable for automated assembly processes. Applications include industrial, automotive, and consumer electronic device transient voltage protection.
This product is made in China and fulfills the demand for high-quality transient voltage suppression devices in various electronic circuits. For designers and engineers, the SMCJ22CA-E3/57T offers dependable surge protection to enhance product safety and longevity.
Explore more from Vishay's range of semiconductor protection devices in the TVS Diode category on EnvMart for comprehensive circuit safeguarding solutions.
