Microchip Operational Amplifier 1 MHz 14-Pin PDIP 1.8V to 6V MCP6004-E/P

Free Delivery in India | Lowest Global Shipping Charges

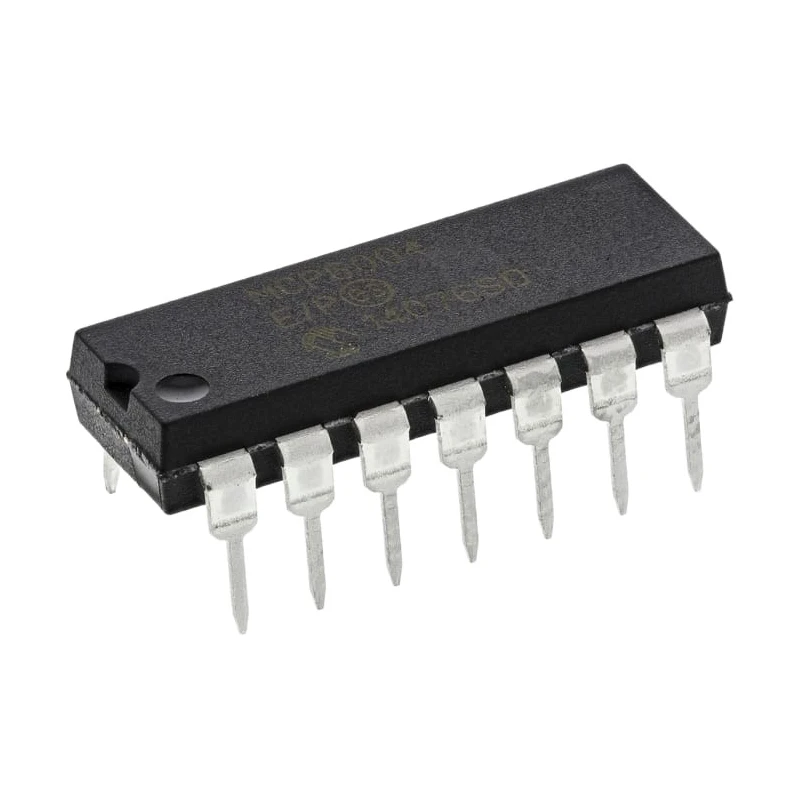

Microchip Operational Amplifier 1 MHz 14-Pin PDIP 1.8V to 6V MCP6004-E/P

Name: Microchip Operational Amplifier 1 MHz 14-Pin PDIP 1.8V to 6V MCP6004-E/P
Brand: Microchip
SKU: 211110
Price: 1.42 USD
Availability: InStock



Category Operational Amplifier Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	4.95mm
Length	19.69mm
Model	MCP6004-E/P
Width	7.11mm
Mount Type	Through Hole
Series	MCP6004
Output Current	23mA
Maximum Operating Temperature	125°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number Of Channels	4
Pin Count	14
Maximum Supply Voltage	6V
Minimum Supply Voltage	1.8V
GBP - Gain Bandwidth Product	1MHz
Input Bias Current	1 pA
Vos - Input Offset Voltage	4.5 mV
Slew Rate	0.6V/μs
MCP6004-E/P Microchip, Op Amp, RRIO, 1MHz, 1.8 → 6 V, 14-Pin PDIPBrand	Microchip

Key Features

Four channels in a single package providing high versatility for circuit designs.
Low input bias current of 1 picoampere enhancing signal integrity.
Operating temperature range from -40°C to 125°C suitable for industrial applications.
Slew rate of 0.6 V/μs enabling moderate speed signal amplification.
Output current capability of 23 mA catering to varied output load requirements.
Input offset voltage typically at 4.5 mV ensuring accurate amplification.
Package type is PDIP for through hole mounting on circuit boards.

Product Description

Microchip MCP6004-E/P is a quad-channel operational amplifier optimized for low voltage applications between 1.8 to 6 volts, housed in a 14-pin PDIP through-hole package. This amplifier features a gain bandwidth product of 1 MHz, making it suitable for signal conditioning, filtering, and voltage amplification in embedded systems and industrial electronics.

Designed for robust performance, it offers low input bias and offset currents that maintain signal fidelity. The device operates reliably within a temperature range of -40°C to 125°C, making it ideal for harsh environments.

The slew rate of 0.6 V/μs ensures moderate speed response for most analog signal processing needs. Its 23 mA output current capability supports driving various load types without external buffering.

Typical applications include industrial control systems, sensor interface amplification, precision signal conditioning, and data acquisition modules in manufacturing and laboratory environments. The compact PDIP form factor allows for easy prototyping and integration into power and control circuits.

Four independent amplifier channels in a single device. Low input bias current to minimize error in sensitive signal applications. Wide operating temperature range for industrial reliability. Moderate slew rate for balanced speed and noise performance.

Robust output current handling capability. Compact PDIP through-hole package preferred for prototyping and board repair. Operates from 1.8 V to 6 V supply for versatile low voltage use. High gain bandwidth product of 1 MHz suitable for many analog applications.

This product is new and originates from India. For related products and additional Operational Amplifier selections, explore the Electronics & Electricals category on EnvMart.
