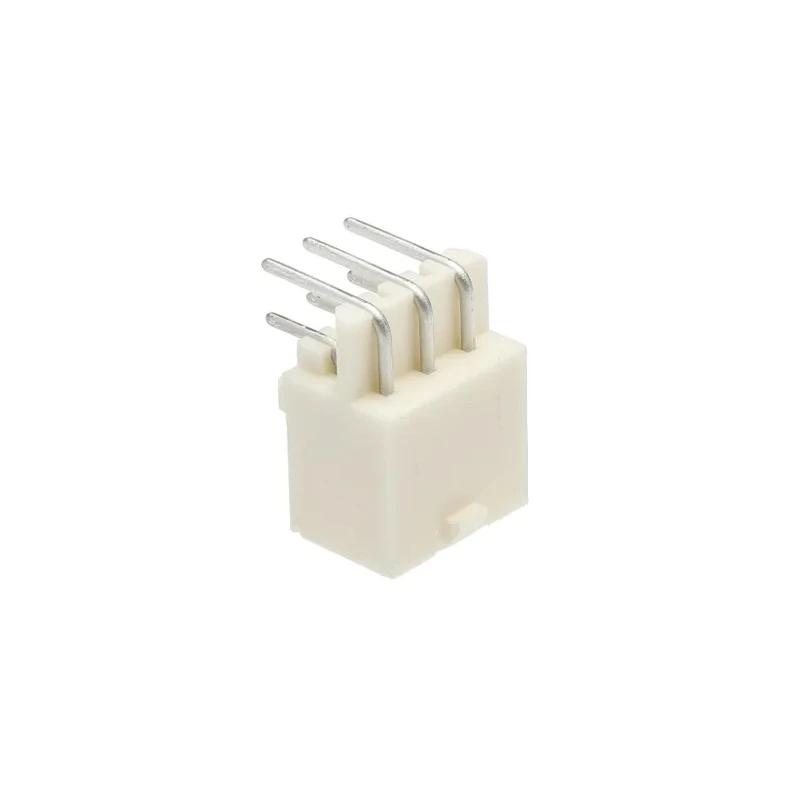

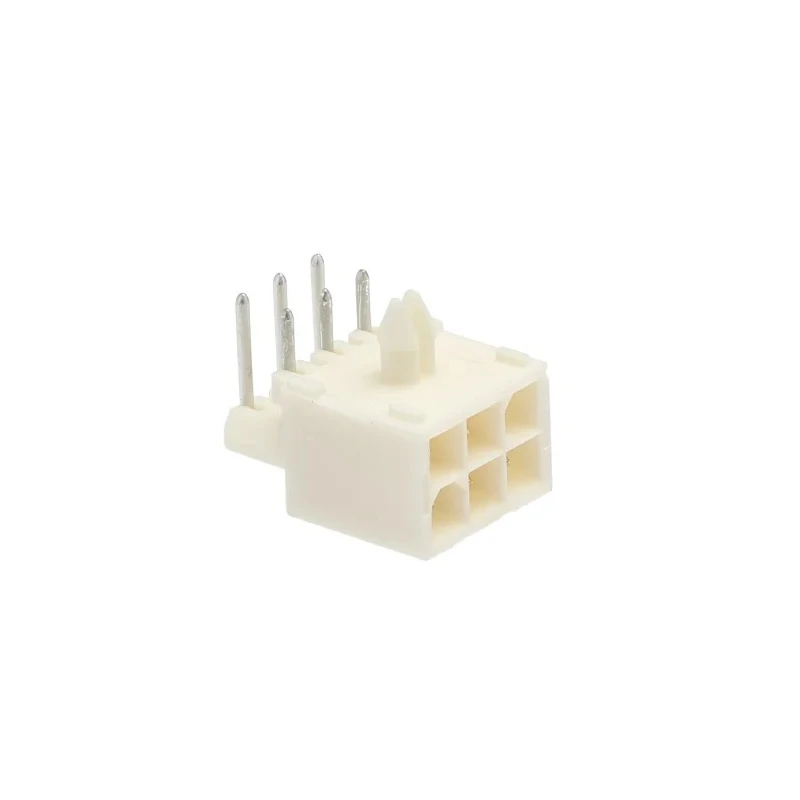

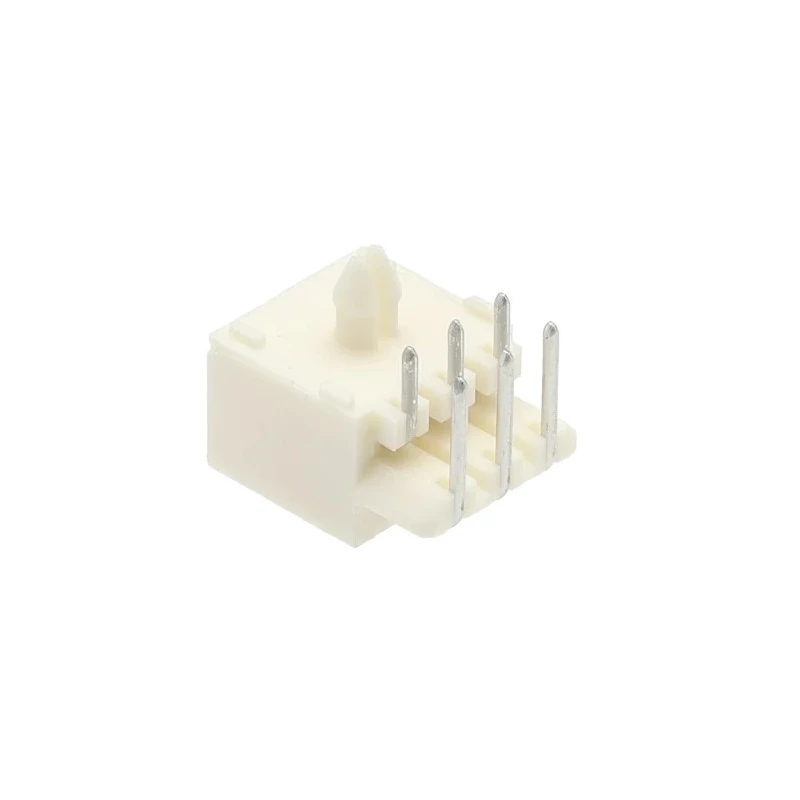

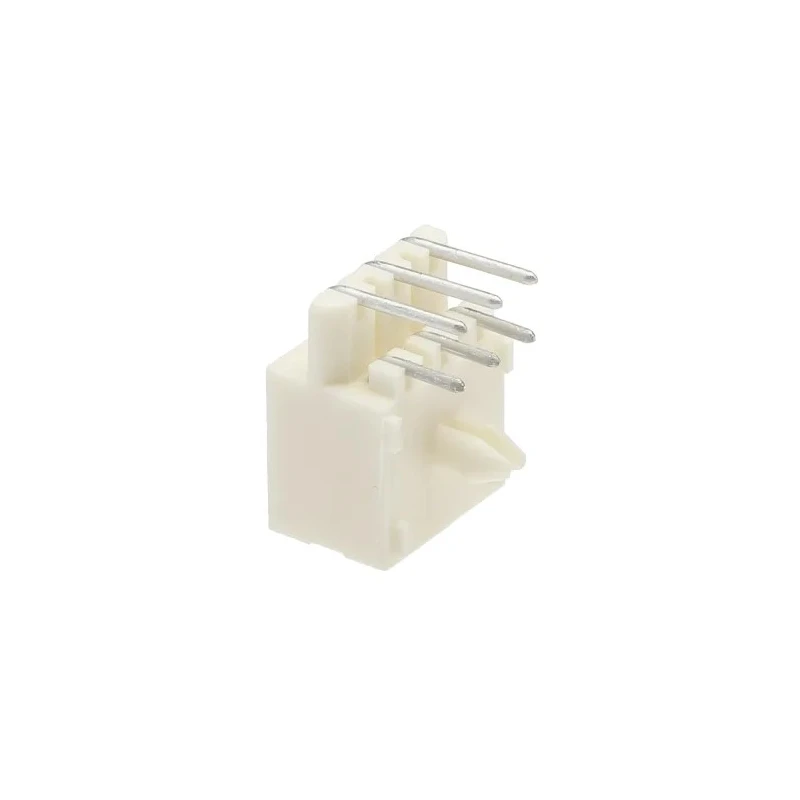

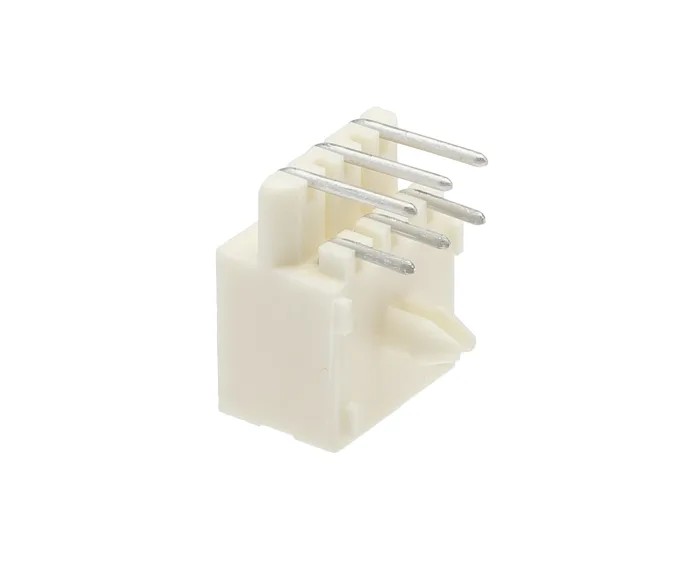

TE Connectivity Mini-Universal MATE-N-LOK Series 6 Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series 6 Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series 6 Right Angle Through Hole PCB Header 6 Contacts 4.14 mm Pitch 1-770969-1
Brand: TE Connectivity
SKU: 217932



Category PCB Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Right Angle
Current	9.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-20°C
Number of Rows	2
Pitch	4.14mm
Contact Plating	Gold
Number of Contacts	6
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This PCB header supports a current rating of 9.5A for reliable electrical performance.
Features a shrouded design with nylon housing ensuring safety and durability.
Gold-plated brass contacts provide excellent corrosion resistance and conductivity.
Suitable for wire-to-board connector system with solder termination type.
Designed for operation within a temperature range of -20°C to 85°C.
Rated for voltage up to 600V, compatible with various electronic applications.
The header includes two rows of male contacts for secure mating connections.
Right angle orientation facilitates PCB layout flexibility and space saving.

Product Description

TE Connectivity 1-770969-1 Mini-Universal MATE-N-LOK Series 6 Right Angle Through Hole PCB Header features 6 male contacts arranged in 2 rows, with 4.14 mm pitch suitable for wire-to-board applications. This PCB header is rated for 9.5A current and 600V voltage, supporting reliable electrical connectivity in industrial and electronic applications.

The housing is constructed from UL94V-0 nylon, providing flame retardance and mechanical durability. The right angle orientation allows for optimized PCB layout and easy board insertion. Gold-plated brass contacts enhance conductivity and resistance to corrosion. The connector system incorporates a positive locking latch and board locks to ensure secure mating and retention.

Designed for solder termination through hole mounting, this connector is ideal for applications in manufacturing, industrial controls, automation, and electronic assembly.

The Mini Universal MATE-N-LOK system offers reliable, high-performance connections with operating temperature ranging from -20°C to 85°C. Its robust design meets the demands of a wide range of electrical and electronic equipment.

This PCB header supports a current rating of 9.5A for reliable electrical performance. Features a shrouded design with nylon housing ensuring safety and durability. Gold-plated brass contacts provide excellent corrosion resistance and conductivity.

Suitable for wire-to-board connector system with solder termination type. Designed for operation within a temperature range of -20°C to 85°C. Rated for voltage up to 600V, compatible with various electronic applications.

The header includes two rows of male contacts for secure mating connections. Right angle orientation facilitates PCB layout flexibility and space saving. UL94V-0 rated nylon housing ensures flame retardant properties. Explore more high quality PCB Connectors at EnvMart for your industrial, manufacturing, and electronics projects.
