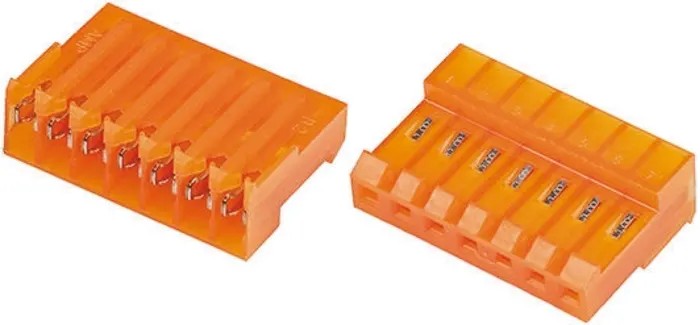

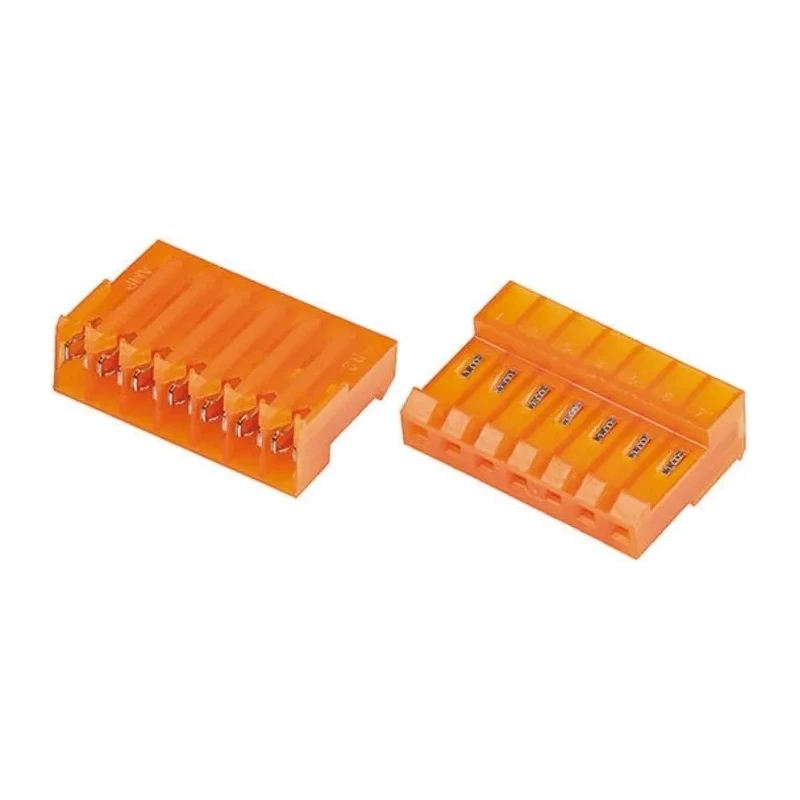

TE Connectivity 7-Way IDC Connector Female Cable Mount, 1 Row, 7A, 600V, Nylon Housing, MTA-156 Series 3-640426-7

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity 7-Way IDC Connector Female Cable Mount, 1 Row, 7A, 600V, Nylon Housing, MTA-156 Series 3-640426-7

Name: TE Connectivity 7-Way IDC Connector Female Cable Mount, 1 Row, 7A, 600V, Nylon Housing, MTA-156 Series 3-640426-7
Brand: TE Connectivity
SKU: 217842
Price: 1.58 USD
Availability: InStock



Category IDC Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	7A
Mount Type	Cable
Housing Material	Nylon
Contact Material	Copper
Series	MTA-156
Termination Type	IDC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	3.96mm
Contact Plating	Tin over Nickel
Number of Contacts	7
Contact Gender	Female
Connector Gender	Female
Shrouded/Unshrouded	Shrouded

Key Features

This IDC connector features 7 contacts arranged in a single row for efficient wire termination.
The 3.96mm pitch ensures precise mating and electrical continuity.
Rated for 600V AC voltage with tin over nickel plated copper contacts for corrosion resistance.
Shrouded design with right-angle orientation provides secure and space-saving cable mounting.
Operates reliably between -55°C and 105°C in demanding industrial environments.
The MTA-156 series housing is constructed from durable nylon 6/6, UL94V-2 rated for fire resistance.
Compatible with 18 to 26 AWG stranded discrete wires via insulation displacement contact technology.

Product Description

TE Connectivity 3-640426-7 is a 7-Way IDC Connector designed for cable mounting applications, featuring a single row configuration with a 3.96mm pitch. This female IDC connector belongs to the MTA-156 series, known for simplifying wire termination with fast, tool-assisted assembly using insulation displacement contact technology.

The connector supports a current rating up to 7 amperes and withstands voltages up to 600V AC, making it suitable for a wide range of electronic and electrical applications, including industrial automation, manufacturing, HVAC systems, and control panels.

It incorporates tin over nickel plated copper contacts to ensure excellent electrical performance and resistance to corrosion. The connector housing is made from nylon 6/6, UL94V-2 flame retardant material, providing durability and safety in harsh operating environments.

The shrouded design with right-angle orientation optimizes PCB and cable assembly layouts by providing secure mating and minimizing reverse mating through molded ribs. Temperature operation range from -55°C to 105°C allows use in extreme ambient conditions.

The MTA-156 IDC connectors accommodate stranded discrete wires from 18 to 26 AWG, making them ideal for labor-saving mass termination in wire-to-board and wire-to-wire configurations. These connectors are stackable end to end and feature locking ramps and polarization tabs for secure connections.

This connector's 7 contacts provide a compact connection solution for multi-wire applications. Durable nylon material ensures long service life and resistance to environmental factors. The insulation displacement contact technology allows one-step assembly without wire stripping.

Designed for use in industrial electronics, control equipment, telecommunications, and power distribution modules. Facilitates rapid, cost-effective assembly and maintenance in manufacturing settings.

This TE Connectivity 7-Way IDC Connector is a trusted component engineered to meet demanding industrial standards. Browse other high-quality connectors and accessories at EnvMart to suit your electronic interfacing needs.
