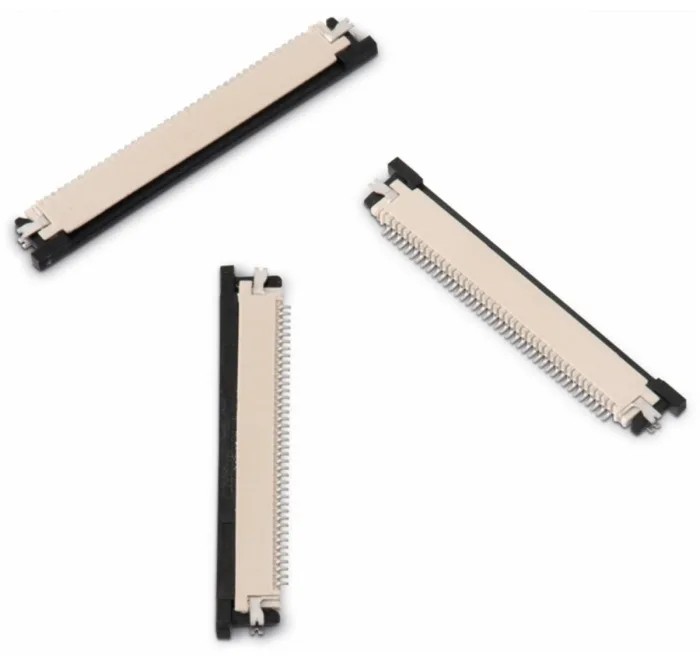

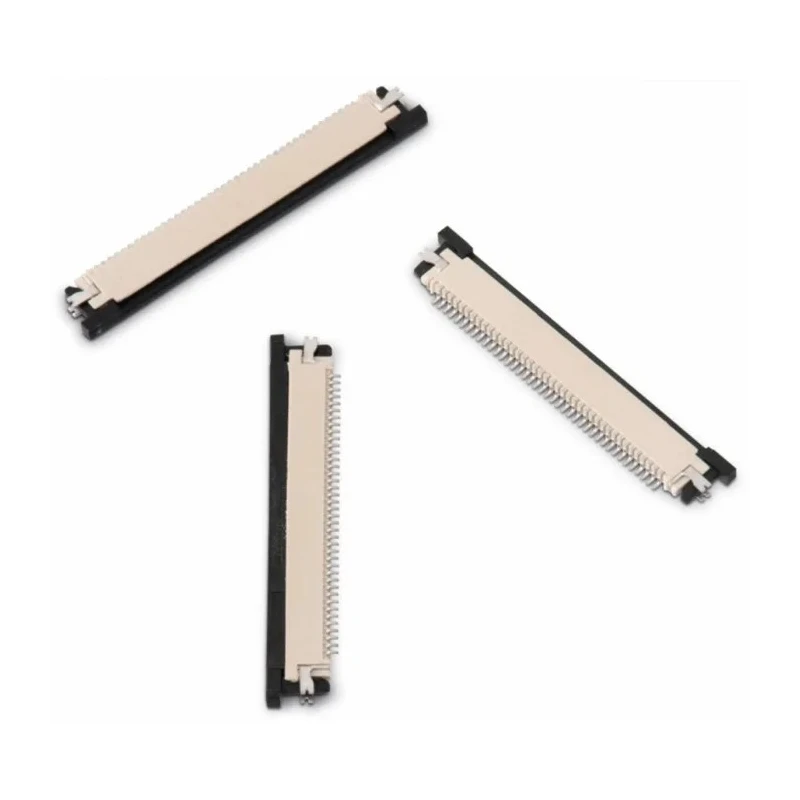

Wurth Elektronik 30 Way Horizontal Female FPC Connector 0.5 mm Pitch Surface Mount WR-FPC 687130183622

Wurth Elektronik 687130183622 is a 30 Way Horizontal Female FPC Connector designed with a 0.5 mm pitch and surface mount termination. It features Zero Insertion Force (ZIF) technology enabling effortless cable insertion by using a rotating flip lock actuator mechanism. This actuator secures the flexible printed circuit (FPC) reliably, ensuring stable electrical and mechanical connections.

The connector's compact 1.2 mm height low profile design is suitable for high-density electronics such as displays, touch panels, and screens. The contact material is phosphor bronze plated with tin over nickel to provide reliable conductivity and corrosion resistance, housed in a durable liquid crystal polymer body for enhanced mechanical strength.

Electrical specifications include a voltage rating of 50V AC and a current rating of 400mA, with operational temperatures ranging from -25°C to 85°C. The connector supports a single row configuration with 30 contacts, making it versatile for miniaturized electronic assemblies.

Solder tabs on each side enhance retention to the printed circuit board (PCB), providing mechanical stability and ease of mounting during assembly. The top contact position and horizontal orientation add flexibility in design placement, suitable for consumer electronics, industrial equipment, and medical devices.

Low profile 0.5 mm pitch design for compact applications. Flip lock actuator for Zero Insertion Force and secure locking. Phosphor bronze contacts plated with tin over nickel for durability. Liquid crystal polymer housing for mechanical stability.

Voltage rating of 50V AC and current rating of 400mA. Operating temperature from -25°C to 85°C for reliability. Solder tabs ensure secure PCB attachment. Supports 30 contacts in a single row horizontal layout.

This Wurth Elektronik FPC Connector series is ideal for use in consumer electronics, industrial automation, medical instruments, and other applications where compact, reliable FPC connections are required. Browse additional high-quality connectors and FPC components in the Electronics Components category at EnvMart.
