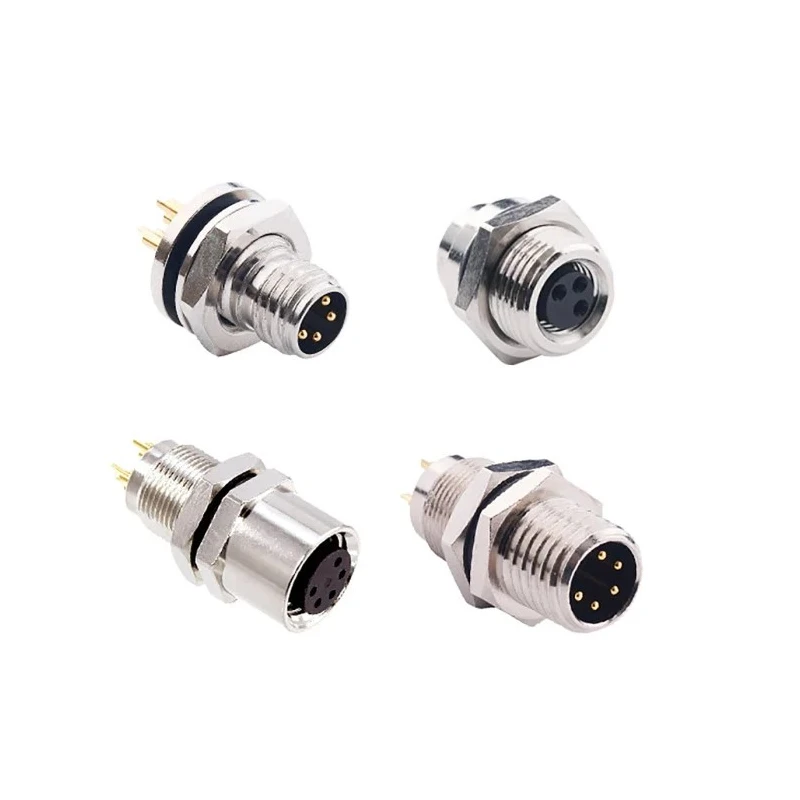

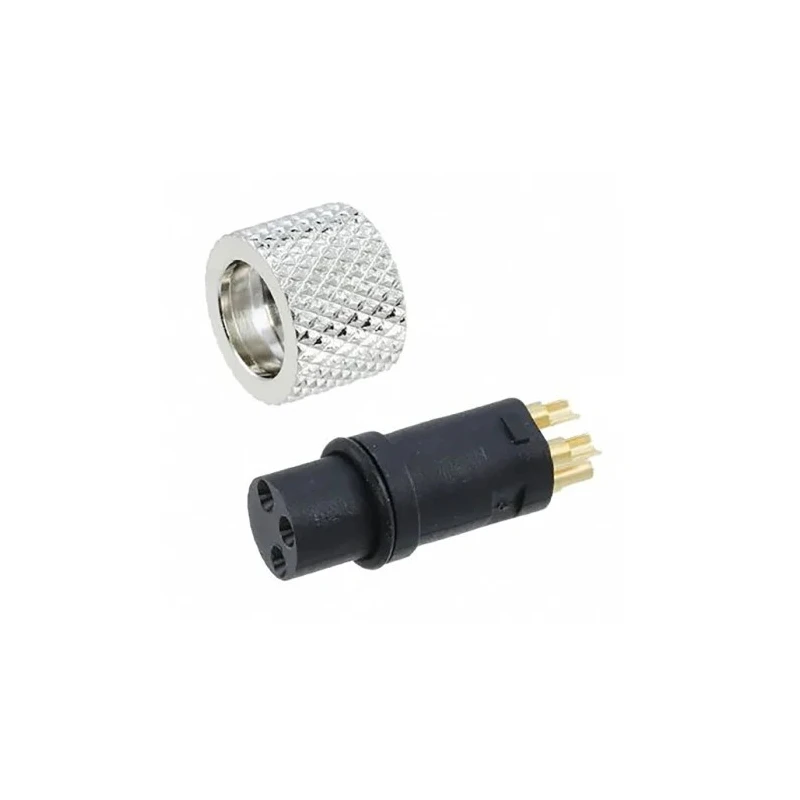

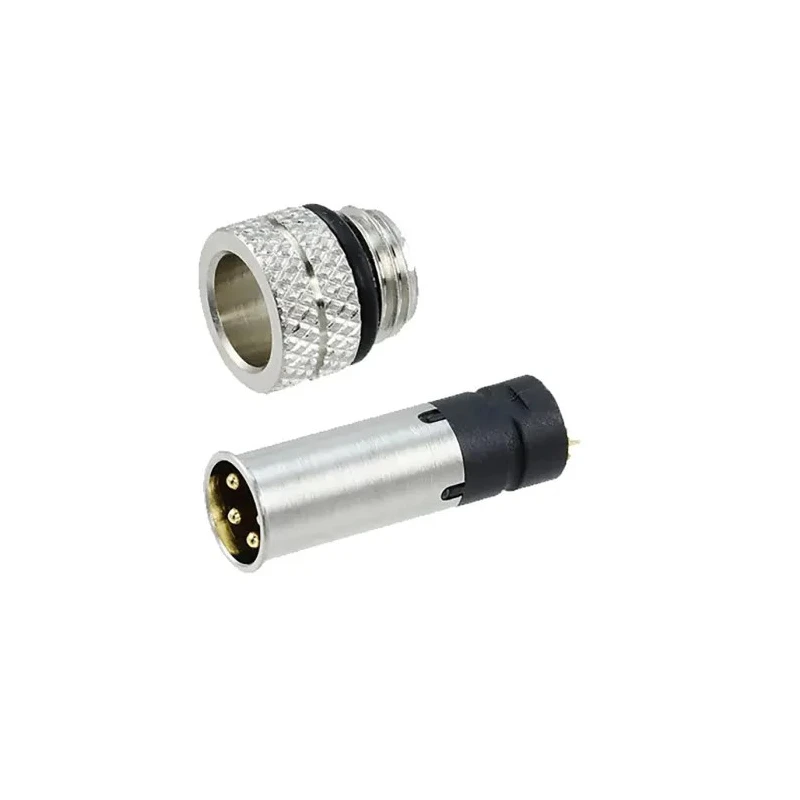

Norcomp Circular Connector 4 Contacts Panel Mount M8 Plug Male IP67 5A 125V Brass-Nickel Plated Thermoplastic 855-004-103R004

Norcomp 855-004-103R004 is a high-quality Industrial Circular Connector featuring 4 contacts and a robust panel mount design. Engineered for demanding electronic and automation environments, this connector is ideal for applications requiring secure connections, high current, and enhanced environmental protection.

With an IP67 rating, the connector provides superior sealing against dust and water ingress, allowing its use in outdoor, wet, or harsh industrial locations. The plug is male with threaded mating, ensuring a reliable and vibration-resistant connection.

It supports a maximum current of 5A and voltage of 125V, suitable for transmission of signals or power in various electronic circuits and systems. The four gold-plated brass contacts provide excellent conductivity and minimize contact resistance, supporting stable performance.

The housing is constructed from thermoplastic, offering both electrical insulation and mechanical durability. The shell is nickel-plated brass, adding corrosion resistance and longer service life. The connector operates reliably across a wide temperature range, from -40°C to 85°C, making it versatile for industrial automation, machinery, sensor wiring, robotics, and automotive electronics.

The panel mount form factor ensures easy integration into control cabinets, panels, and custom enclosures. Threaded mating provides a secure, tamper-resistant installation, suitable for environments where vibration or accidental disconnect could be a concern. The connector is also compatible with loose piece installations or pre-made M8 cables, adapting to a range of wiring needs.

Norcomp's 855 Series M8 connectors are used in manufacturing, industrial automation, measurement systems, and any electrical system requiring robust, waterproof, and reliable M8 connectivity. The four-pin format allows flexibility for signal, power, or mixed-use circuits.

IP67 rated for excellent protection against dust and water ingress. Features 4 gold-plated brass contacts for reliable conductivity. Panel mount design with threaded mating for secure installation. Thermoplastic housing ensures durability in industrial environments.

Supports a maximum current of 5A and voltage of 125V for demanding applications. Suitable for harsh temperature ranges from -40°C to 85°C. M8 connector shell is brass-nickel plated for corrosion resistance. Browse more circular connectors and Norcomp industrial interconnect solutions in the Electronics Components category at EnvMart.
