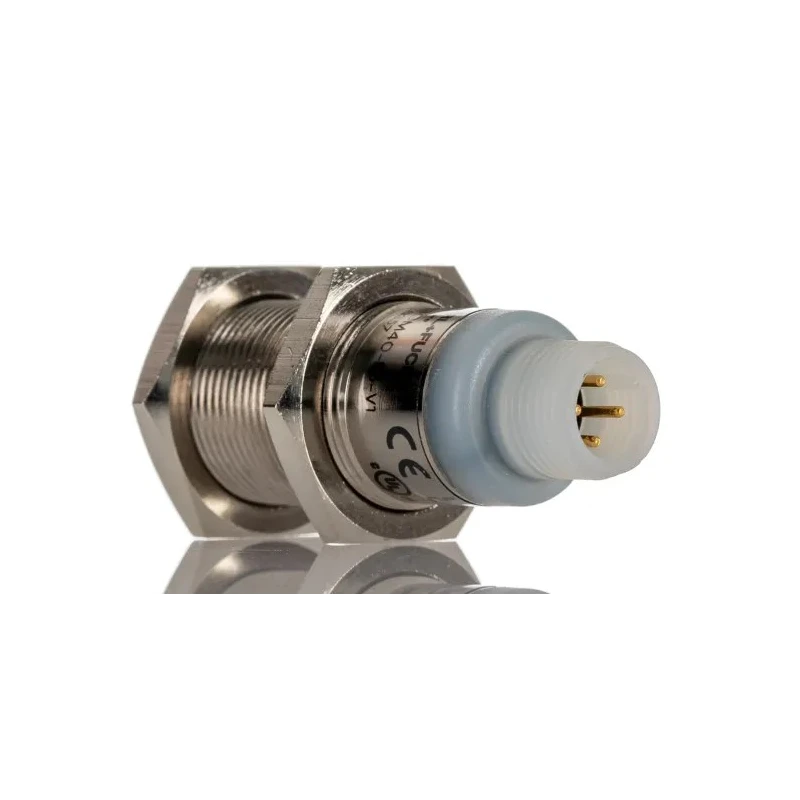

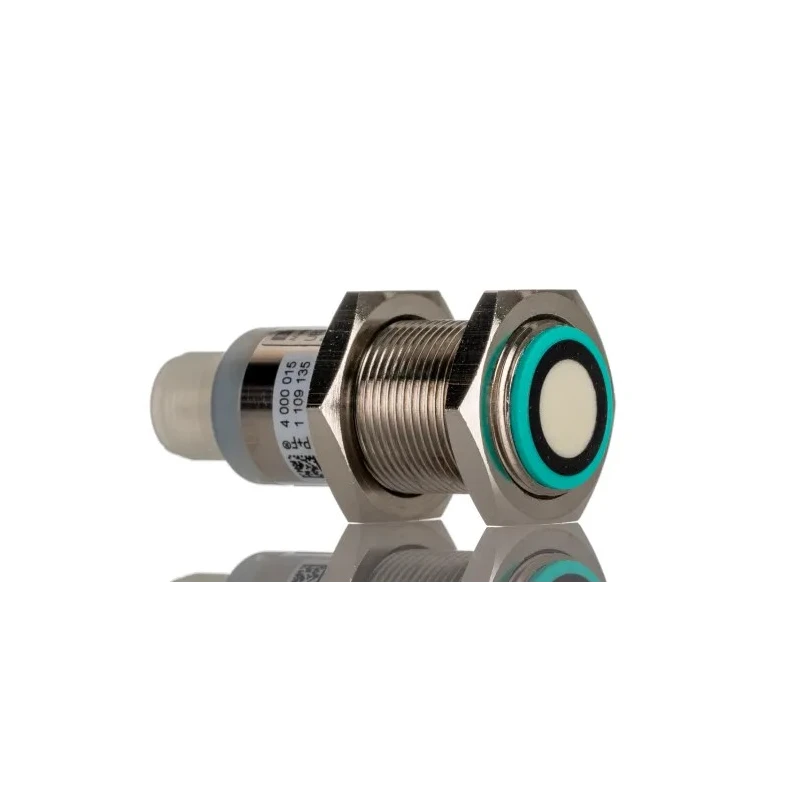

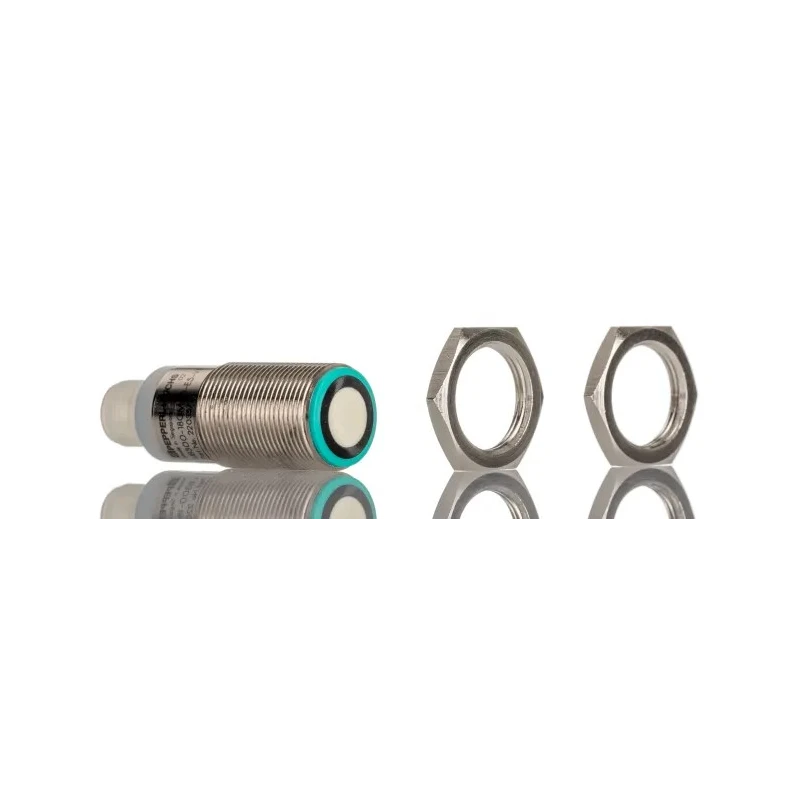

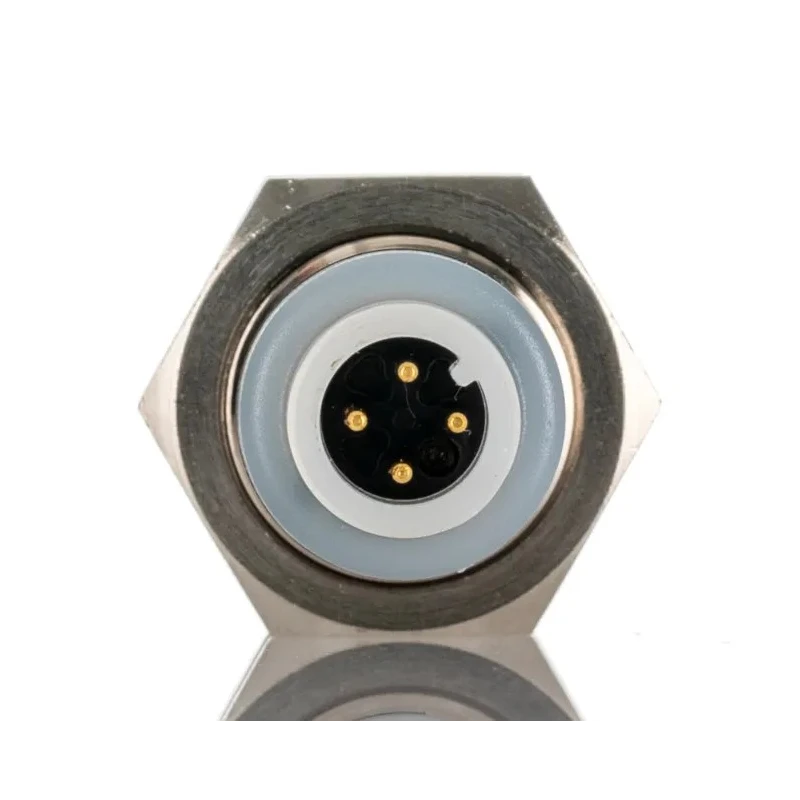

Pepperl + Fuchs Threaded Barrel Ultrasonic Proximity Sensor M18 x 1 300 mm 200mA PNP 3V 30 V dc UB300-18GM40-E5-V1

Pepperl + Fuchs UB300-18GM40-E5-V1 is a high-quality threaded barrel ultrasonic proximity sensor designed for precise detection with a maximum detection distance of 300 mm. Its M18 x 1 threaded body made of nickel-plated brass offers ruggedness and durability, suitable for demanding industrial environments. The sensor features an IP67 rating providing full protection against dust ingress and temporary immersion in water.

This sensor operates on a low supply voltage of 3V with a maximum DC voltage tolerance of 30 V, enabling compatibility with various automation systems. It delivers a switching current of 200mA with a PNP output type and maintains a maximum switching frequency of 13Hz, ensuring rapid and reliable signal response with a response time of 50ms.

Designed to perform reliably across a broad temperature range from -25°C to 70°C, it is well suited for industrial machinery, assembly lines, and automation control where ultrasonic sensing for presence and distance measurement is essential. The device complies with IEC 60947-5-2:2007 and is certified under cCSAus and cULus standards, guaranteeing safe and consistent operation.

The UB300 series includes features such as different settable output functions in the single switch version and synchronization options. Compared to the UB500 series, it provides reliable ultrasonic detection with a compact and robust design.

Nickel-plated brass body ensures durability in industrial environments. IP67 protection makes it suitable for harsh conditions including dust and moisture. Supports a 3V supply voltage with a maximum operating voltage of 30 V dc.

Fast response time of 50ms with a switching frequency up to 13Hz. 200mA switching current and PNP output type for versatile application. Operating temperature range from -25 to 70°C for wide industrial usability. Certified with IEC 60947-5-2 and approved for cCSAus and cULus standards compliance.

This sensor is ideal for industrial automation, manufacturing processes, and quality control systems requiring precise ultrasonic proximity detection. It supports easy integration with mounting brackets and other automation control hardware.
