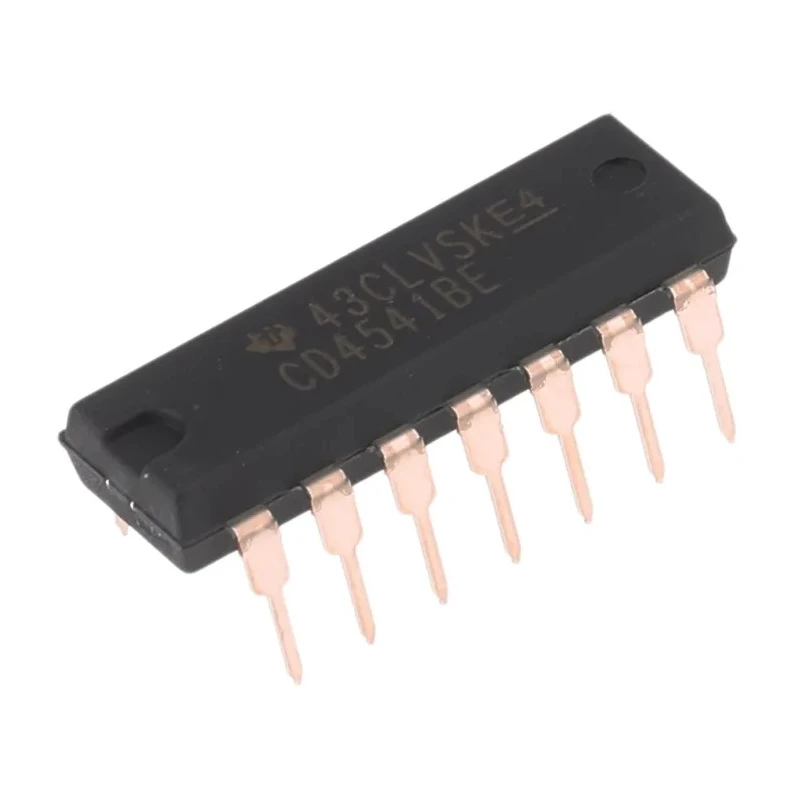

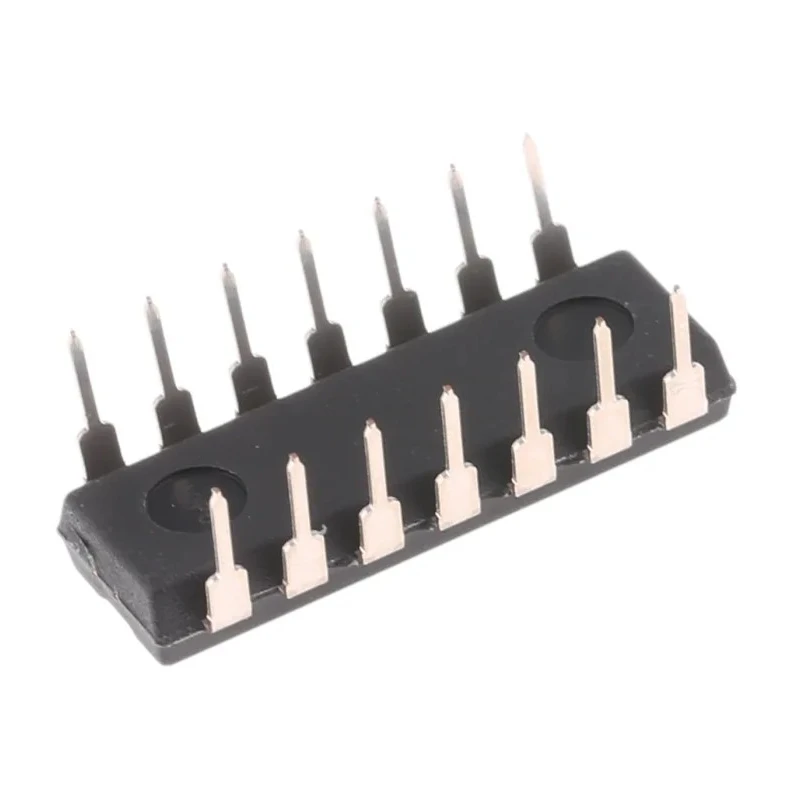

Texas Instruments Programmable Timer Circuit 14-Pin PDIP CD4541BE
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | CD4541BE |
| Mount Type | Through Hole |
| Series | CD |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Sub Type | Programmable |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 3V |
| Wide operating voltage range | 3 to 18V |
| Number of Internal Timers | 1 |
Key Features
- Operates over a wide voltage range of 3V to 18V for versatile use.
- Includes one internal timer suitable for precise timing applications.
- Designed to function within a temperature range of -55°C to 125°C for robust performance.
- Complies with RoHS standards ensuring environmental safety.
- Compact size with a length of 19.3mm and height of 4.57mm facilitating PCB space efficiency.
- Part of the 4000 Series CMOS logic family known for low power consumption and reliability.
- Use in industrial and electronic timing, clock generation, and frequency control circuits.
- Through hole mount type enables easy prototyping and repair.
Product Description
Texas Instruments CD4541BE Programmable Timer Circuit is a versatile integrated circuit from the 4000 Series CMOS logic family, housed in a 14-Pin PDIP package with through-hole mounting. It operates over a supply voltage range of 3V to 18V and supports a wide operating temperature from -55°C to 125°C, making it suitable for many industrial and electronic applications.
This programmable timer circuit features one internal timer that can be configured for various timing and frequency control uses. The compact dimensions of 19.3mm length and 4.57mm height allow efficient use of PCB space in your designs.
Compliant with RoHS standards, this timer circuit ensures environmentally safe operation. The device belongs to Texas Instruments’ CD series, well-known for reliable performance in timing and multivibrator circuits.
Typical applications include industrial control systems, clock generation, delay circuits, and other timing-related functions in commercial and laboratory settings. Operates from 3V to 18V supply voltage. One internal timer for flexible programmable timing.
Wide temperature operation from -55°C to 125°C. RoHS compliant for eco-friendly applications. Dimensions: 19.3mm length by 4.57mm height. Through-hole PDIP package for ease of assembly. Part of the 4000 Series CMOS logic family by Texas Instruments.
This programmable timer circuit is ideal for use in electronic, industrial, and laboratory equipment requiring precise timing control. Browse more timer circuits and Semiconductors at EnvMart for a wide selection of integrated circuits to support your project and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of the CD4541BE are 19.3mm in length and 4.57mm in height, facilitating efficient PCB space usage.
This model features a through-hole mount type, which enables easy prototyping and repair.
Yes, this programmable timer circuit complies with RoHS standards, ensuring environmentally safe operation.
It is part of the 4000 Series CMOS logic family, known for low power consumption and reliability.
Typical applications include industrial control systems, clock generation, delay circuits, and other timing-related functions.
This model has a pin count of 14, which is standard for its package type.
The package type is PDIP, which is suitable for through-hole mounting.
The wide operating voltage range of 3V to 18V allows the timer circuit to be used in a variety of electronic and industrial applications.
The country of origin for this model is India.
