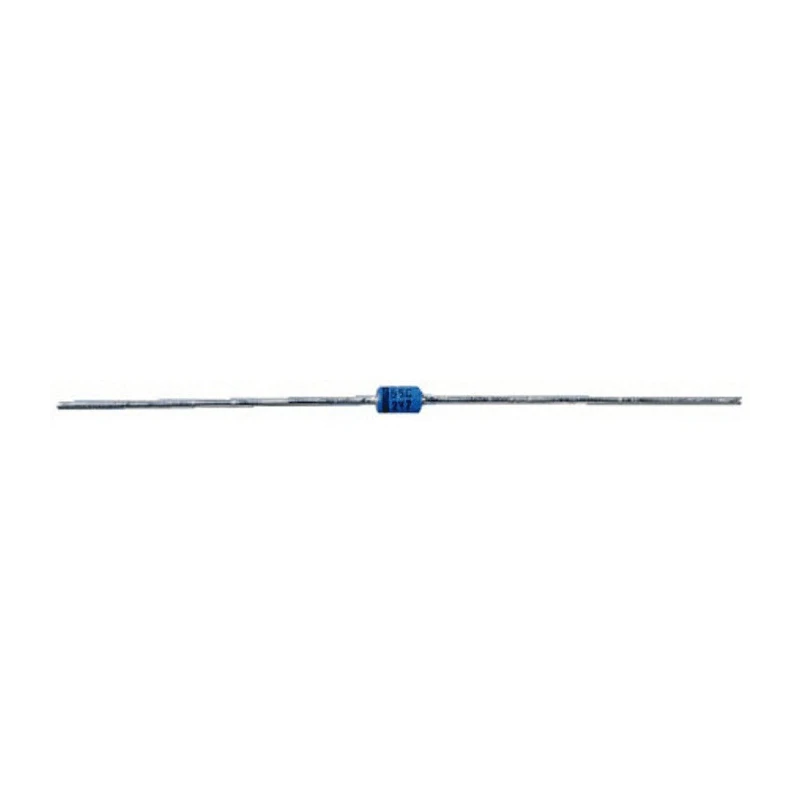

Vishay 20 V 1.3 W Voltage Regulator Zener Diode, Single Element, Through Hole DO-41 Package BZX85C20-TAP

Free Delivery in India | Lowest Global Shipping Charges

Vishay 20 V 1.3 W Voltage Regulator Zener Diode, Single Element, Through Hole DO-41 Package BZX85C20-TAP

Name: Vishay 20 V 1.3 W Voltage Regulator Zener Diode, Single Element, Through Hole DO-41 Package BZX85C20-TAP
Brand: Vishay
SKU: 217684
Price: 0.09 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	2.6mm
Length	4.1mm
Model	BZX85C20-TAP
Mount Type	Through Hole
Series	BZX85
Maximum Operating Temperature	175°C
Package Type	DO-41
Minimum Operating Temperature	-55°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	1.3W
Diode Configuration	Single
Test Current It	10mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	20V
Zener Type	Voltage Regulator
Maximum Zener Impedance	24Ω

Key Features

Designed for voltage regulation and stabilising circuits with a nominal Zener voltage of 20 V.
Capable of dissipating a maximum power of 1.3 watts ensuring effective voltage clamping.
Features a zener voltage tolerance of ±6% suitable for precise voltage regulation.
Comes in a DO-41 plastic axial-lead package facilitating easy through-hole mounting.
Maximum operating temperature up to 175°C for reliable performance in demanding environments.
Maximum reverse leakage current is 500 nA, ensuring low leakage in reverse-bias operation.
Test current is rated at 10 mA for electrical characterization.
Maximum zener impedance of 24 ohms supports stable voltage regulation properties.

Product Description

Vishay BZX85C20-TAP is a Silicon Planar power Zener diode designed for use in stabilising and clipping circuits requiring a stable 20 V voltage regulation. This single-element semiconductor diode operates reliably at a power dissipation of 1.3 watts, making it suitable for industrial and commercial electronic applications.

The diode is housed in a DO-41 through-hole package, providing easy handling and mounting flexibility on printed circuit boards. The package dimensions are compact with a length of 4.1 mm and a height of 2.6 mm, allowing for efficient use of space in dense assemblies.

Rated for a maximum operating temperature of 175°C and a minimum of -55°C, this Zener diode ensures robust performance in harsh thermal environments, making it ideal for automotive, industrial, and laboratory applications.

Key electrical parameters include a nominal Zener voltage of 20 V with a tolerance of ±6%, test current of 10 mA, maximum reverse leakage of 500 nA, and a maximum Zener impedance of 24 ohms. These features enable effective voltage regulation and protection against voltage spikes.

This component is widely used in power supply circuits, voltage reference circuits, and as a voltage stabilizer in industrial, laboratory, manufacturing, and commercial electronic equipment.

Designed for voltage regulation at 20 V nominal voltage. Maximum power dissipation of 1.3 W ensures stability under load. Robust through-hole DO-41 package suitable for manual or automated assembly. Wide operating temperature range from -55°C to 175°C for reliability.

Low leakage current and stable impedance characteristics. Compact size enabling dense circuit designs. Ideal for use in industrial, commercial, and automotive electronics. Provides protection against voltage transients and voltage stabilization.

Single element diode configuration with silicon planar technology. Package dimensions enable compatibility with standard PCB layouts. Explore more Vishay electronic components and Zener Diodes in EnvMart’s comprehensive catalog of semiconductor devices.
