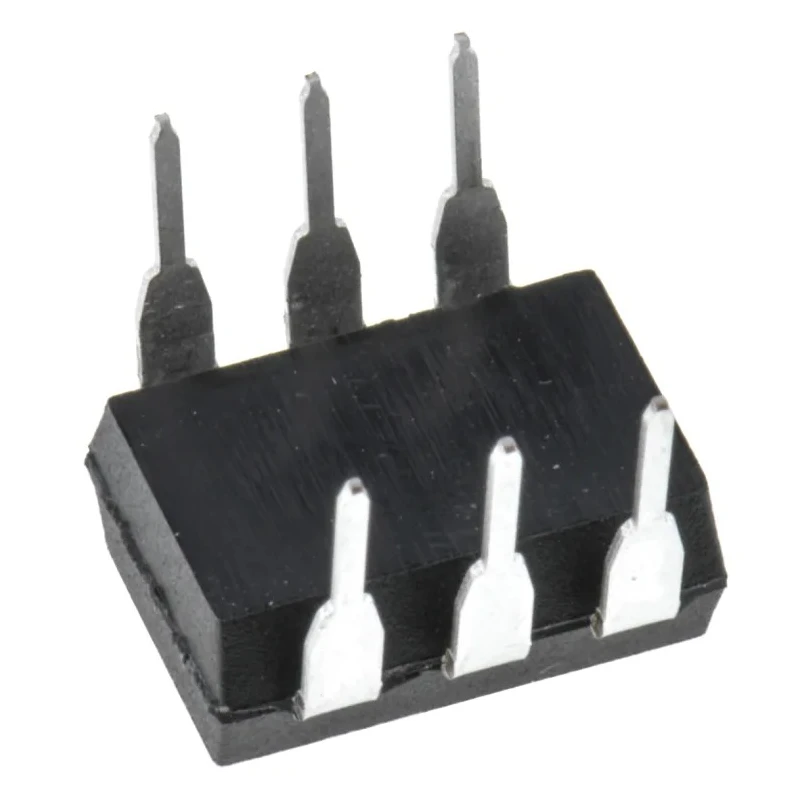

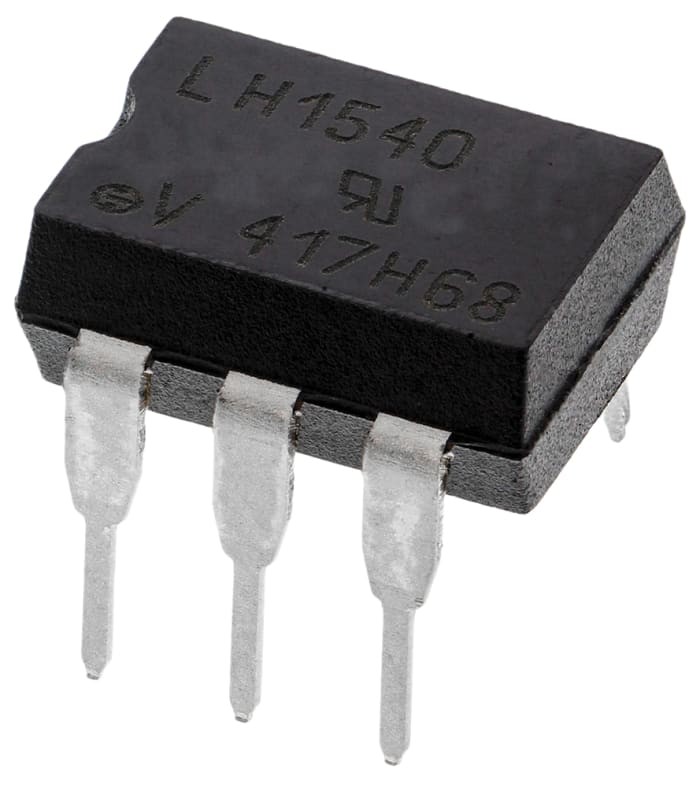

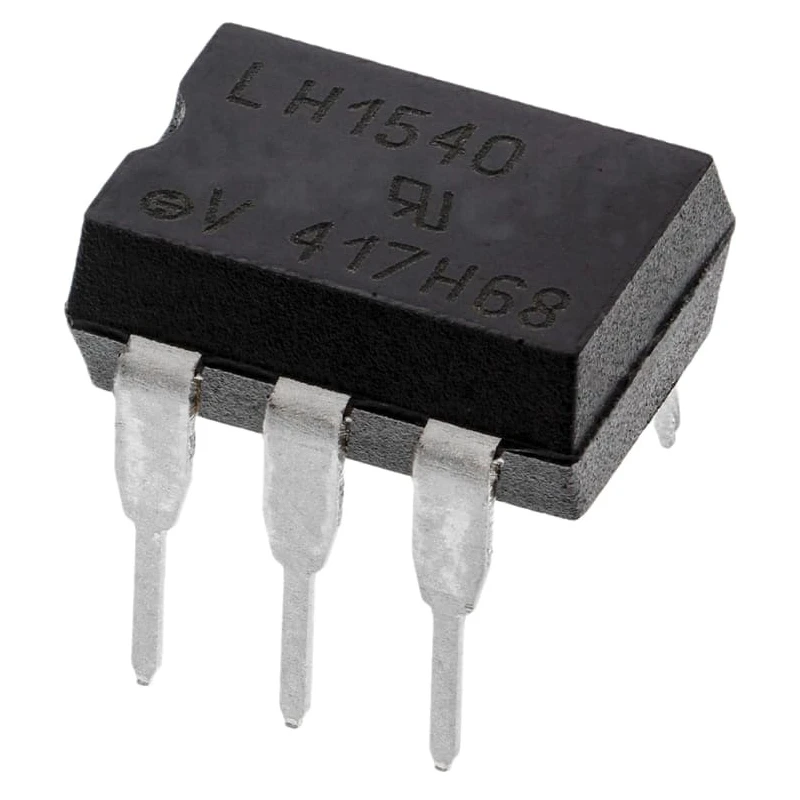

Vishay LH1540AT Solid State Relay, 0.25 A Load, PCB Mount, 350 V Load, 1.45 V Control LH1540AT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 3.8mm |
| Length | 8.7mm |
| Model | LH1540AT |
| Width | 6.5mm |
| Mount Type | PCB |
| Output type | MOSFET |
| Series | LH1540A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NO |
| Package Type | DIP-6 |
| Capacitance | 39pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | DC Switching |
| Maximum Load Current | 0.25A |
| Standards/Approvals | FIMKO RoHS, UL 1577, DIN EN 60747-5-5, BSI, CSA |
| Maximum Load Voltage | 350V |
| Minimum Load Voltage | 0V ac |
| Maximum Control Voltage | 1.45V |
| Off State Leakage Current | 200nA |
| On State Resistance | 27Ω |
Key Features
- Designed for efficient DC switching with a low on state resistance of 27Ω.
- Equipped with through hole terminal type and SPST-NO contact configuration.
- Operates reliably between -40°C to 85°C temperature range.
- Compact DIP-6 package with dimensions 8.7mm length, 6.5mm width, and 3.8mm height.
- Low off state leakage current of 200nA ensuring minimal power loss.
- Capacitance of 39pF provides stable electrical characteristics.
- Meets standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, BSI, and CSA approvals.
Product Description
Vishay LH1540AT solid state relay is designed for precision DC switching applications, supporting a maximum load current of 0.25 A and maximum load voltage of 350 V. Its PCB mount type and through hole terminals facilitate easy integration in industrial and electronic circuit boards.
This solid state relay operates with a low on state resistance of 27Ω, reducing power dissipation, and features a contact configuration of SPST-NO. It supports reliable operation within a broad temperature range from -40°C to 85°C, making it suitable for industrial, automation, and signal conditioning environments.
The unit is packaged in a compact DIP-6 form factor measuring 8.7mm in length, 6.5mm in width, and 3.8mm in height. It exhibits low off state leakage current of only 200nA, ensuring minimal standby power consumption. Its capacitance rating of 39 pF contributes to stable switching performance.
Vishay LH1540AT complies with international standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, BSI, and CSA certifications, ensuring quality and safety in demanding applications.
Designed for efficient DC switching with a low on state resistance of 27Ω. Equipped with through hole terminal type and SPST-NO contact configuration. Operates reliably between -40°C to 85°C temperature range. Compact DIP-6 package with dimensions 8.7mm length, 6.5mm width, and 3.8mm height.
Low off state leakage current of 200nA ensuring minimal power loss. Capacitance of 39pF provides stable electrical characteristics. Meets standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, BSI, and CSA approvals.
This relay is applicable in industrial automation, electrical control systems, manufacturing equipment, and various signal conditioning circuits where compact, reliable, and low power solid state switching is required. It supports enhancing production efficiency and reducing mechanical wear in relay operations.
Explore more Vishay Solid State Relays and related components at EnvMart for industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.25 A.
It supports a maximum load voltage of 350 V.
The on state resistance is 27Ω, which helps reduce power dissipation during operation.
The relay operates reliably between -40°C and 85°C.
It is equipped with through hole terminals for easy PCB mounting.
The contact configuration is SPST-NO (Single Pole Single Throw - Normally Open).
This model measures 8.7 mm in length, 6.5 mm in width, and 3.8 mm in height.
The off state leakage current is 200 nA, ensuring minimal power loss when not in operation.
It has a capacitance rating of 39 pF, contributing to stable electrical characteristics.
It meets several standards including FIMKO RoHS, UL 1577, DIN EN 60747-5-5, BSI, and CSA.
This relay is suitable for industrial automation, electrical control systems, manufacturing equipment, and signal conditioning circuits.
