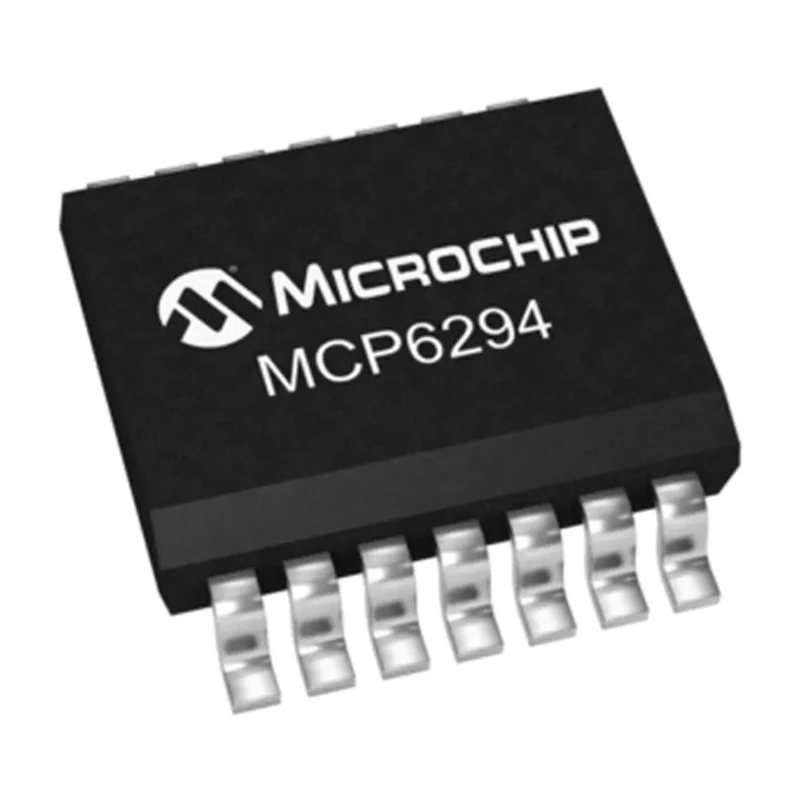

Microchip Operational Amplifier 10 MHz, 14-Pin SOIC, 6V, 4 Channels MCP6294-E/SL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.5mm |
| Length | 8.65mm |
| Model | MCP6294-E/SL |
| Width | 3.9mm |
| Mount Type | Surface |
| Series | MCP6294 |
| Output Current | 25mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.4V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | 1 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 7V/μs |
Key Features
- Operates on a supply voltage range of 2.4V to 6V.
- Low input bias current of 1 picoampere ensures minimal error.
- Input offset voltage is ±5 millivolts for precise performance.
- Slew rate of 7 V/μs supports fast signal changes.
- Designed for operation between -40°C and 125°C for industrial reliability.
- Output current capability of 25 mA enhances drive strength.
- Package dimensions are 8.65mm length, 3.9mm width, and 1.5mm height.
- Automotive standard compliant with AEC-Q100 certification.
Product Description
Microchip MCP6294-E/SL is a high-performance operational amplifier featuring a 10 MHz gain bandwidth product and four independent channels housed in a 14-pin SOIC surface-mount package. It operates within a supply voltage range of 2.4V to 6V, making it suitable for diverse electronic applications requiring low voltage operation.
The device provides ultra-low input bias current at 1 picoampere, which minimizes offset errors, complemented by a ±5 millivolt input offset voltage specification. With a slew rate of 7 V/μs, it supports high-speed signal processing and accurate amplification of dynamic signals.
Designed to work reliably under industrial conditions, the MCP6294-E/SL supports a temperature range from -40°C to 125°C. The output current capability of 25 mA enables it to drive loads effectively in amplifier and comparator circuits.
Its compact SOIC package measures 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height, facilitating integration into space-constrained printed circuit boards. The product adheres to the automotive quality standard AEC-Q100, confirming its suitability for automotive and other demanding environments.
Operates with a supply voltage from 2.4V to 6V. Four channels in a single device for multi-channel applications. Ultra-low input bias current of 1 pA ensures accurate signal measurement. Fast slew rate of 7 V/μs supports rapid signal changes.
Wide operating temperature range of -40°C to 125°C supports industrial use. Output current up to 25 mA enables driving a variety of loads. Compact 14-pin SOIC surface mount package for easy PCB integration. Automotive standard AEC-Q100 certified for quality assurance.
This operational amplifier series is ideal for use in analog signal conditioning, filtering, data acquisition systems, automotive electronics, and precision instrumentation. Its design considers industrial-grade robustness and precision tailored for demanding applications.
Explore more Microchip semiconductor components and Operational Amplifiers at EnvMart for comprehensive industrial and electronic system design solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6294-E/SL has a gain bandwidth product of 10 MHz, making it suitable for high-speed signal processing applications.
The input offset voltage is ±5 millivolts, ensuring precise performance in amplification tasks.
This model can deliver an output current of up to 25 mA, enhancing its drive strength for various applications.
It is designed to operate reliably between -40°C and 125°C, making it suitable for industrial environments.
The MCP6294-E/SL comes in a compact 14-pin SOIC package with dimensions of 8.65 mm in length, 3.9 mm in width, and 1.5 mm in height.
This model features four independent channels, allowing for multi-channel applications in a single device.
The slew rate is 7 V/μs, which supports fast signal changes and high-speed processing capabilities.
It complies with the AEC-Q100 automotive standard, confirming its quality for automotive applications.
The MCP6294-E/SL is designed for surface mounting, facilitating integration into printed circuit boards.
The country of origin for this model is India.
