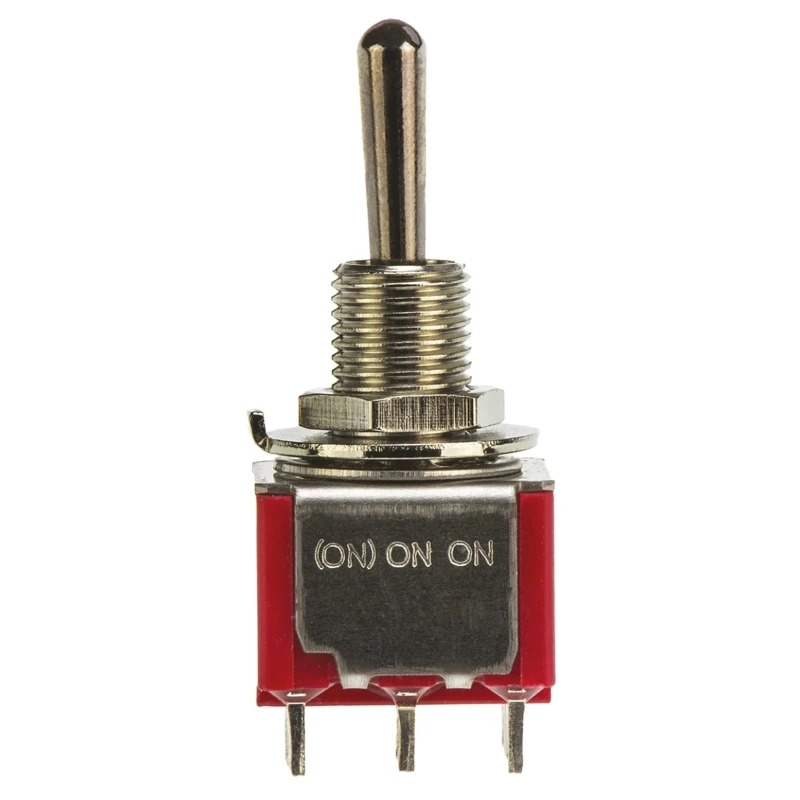

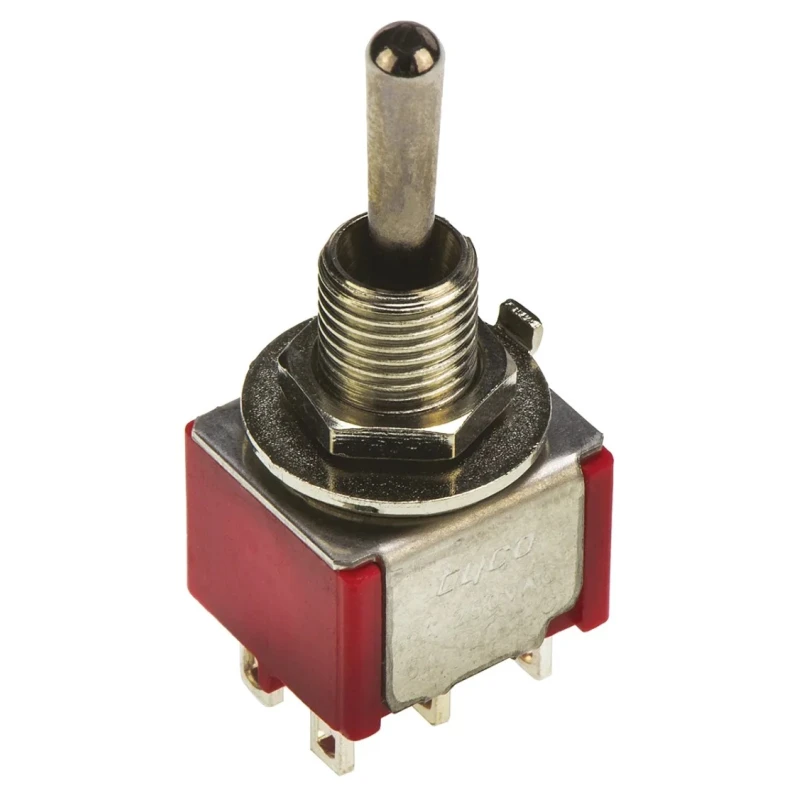

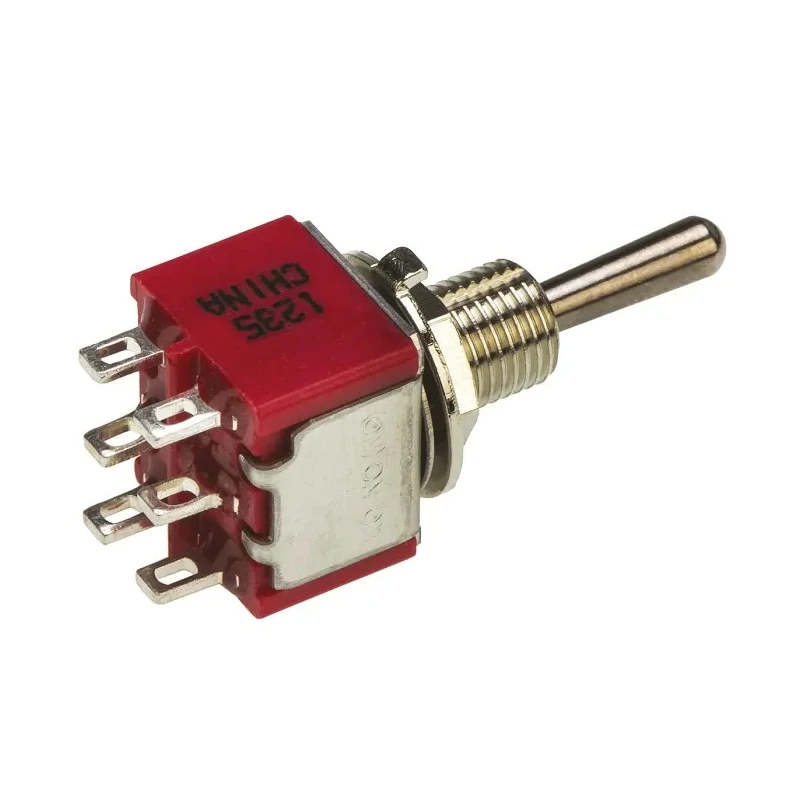

TE Connectivity Toggle Switch Panel Mount DP3T On-On-On 5A 28V dc 120V ac 4-1825139-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | Panel |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DP3T |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | On-On-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Panel mount design ensures easy installation and secure fitment.
- Operates with a double pole, triple throw (DP3T) configuration for versatile switching.
- Supports a switch contact current of 5 amperes for reliable electrical performance.
- Rated for contact voltages of 28 V dc and 120 V ac for diverse applications.
- Features solder terminal type for secure electrical connections.
- Panel cutout size of 6.35 mm accommodates standard fixture dimensions.
- Actuator is made of phenolic material with a length of 10.41 mm for durability and precise operation.
- Operating temperature range from -30°C to 85°C ensures reliable functionality in varying environments.
Product Description
TE Connectivity 4-1825139-2 Toggle Switch is a robust panel mount switch featuring a double pole, triple throw (DP3T) contact configuration with On-On-On switch operation. Designed for use in electrical, automation, and control systems, this toggle switch supports safe and reliable circuit switching at 5 ampere current capacity.
Its solder terminal type provides dependable electrical connections, suitable for PCB wiring or custom assemblies. The panel cutout size of 6.35 mm aligns with standard panel mounting requirements, enabling straightforward integration into machinery or control panels.
The switch actuator is constructed from phenolic material, measuring 10.41 mm in length, ensuring mechanical longevity and tactile feedback. This product is rated to handle contact voltages of 28 V dc and 120 V ac, fitting versatile applications across low-voltage DC and AC circuits.
Operating reliably in temperature conditions ranging from -30°C to 85°C, it is well suited for industrial environments. The stainless steel frame and epoxy-sealed terminals enhance corrosion resistance and electrical stability. RoHS compliance guarantees adherence to environmental safety standards.
This Toggle Switch is ideal for manufacturing, industrial automation, laboratory instrumentation, HVAC control, and commercial electrical installations, offering dependable switching performance and easy panel integration.
Panel mount design for secure and simple installation. DP3T contact configuration providing On-On-On switch operation. Contact current rating of 5 A ensures safe circuit switching. Supports both 28 V dc and 120 V ac contact voltages.
Solder terminals for reliable electrical connectivity. Compact panel cutout size of 6.35 mm for standard mounting. Durable phenolic actuator with precise control. Wide operating temperature range from -30°C to 85°C. Compliance with RoHS certification and industry safety standards.
Explore more TE Connectivity electrical switching solutions and panel mount components in EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double pole, triple throw (DP3T) contact configuration, allowing for versatile On-On-On switching operation.
The maximum operating temperature for this toggle switch is 85°C, making it suitable for various industrial environments.
It has a rated contact current of 5 amperes, ensuring reliable electrical performance during operation.
This unit is rated for contact voltages of 28 V dc and 120 V ac, accommodating a range of low-voltage applications.
The panel cutout size for this toggle switch is 6.35 mm, which aligns with standard panel mounting requirements.
The actuator of this model is made from phenolic material, which contributes to its mechanical longevity and tactile feedback.
It features solder terminals, providing dependable electrical connections suitable for PCB wiring or custom assemblies.
The minimum operating temperature is -30°C, allowing it to function reliably in colder environments.
Yes, this product is RoHS compliant, ensuring adherence to environmental safety standards.
This switch is ideal for manufacturing, industrial automation, laboratory instrumentation, HVAC control, and commercial electrical installations.
The actuator length is 10.41 mm, providing precise control during operation.
This model complies with RoHS standards, ensuring it meets specific environmental and safety regulations.
