| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.35mm |
| Length | 3.85mm |
| Model | 1N4148WT-7 |
| Width | 1.7mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-523 |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 400mW |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 2A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 4ns |
| Maximum Forward Current If | 300mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 100V |

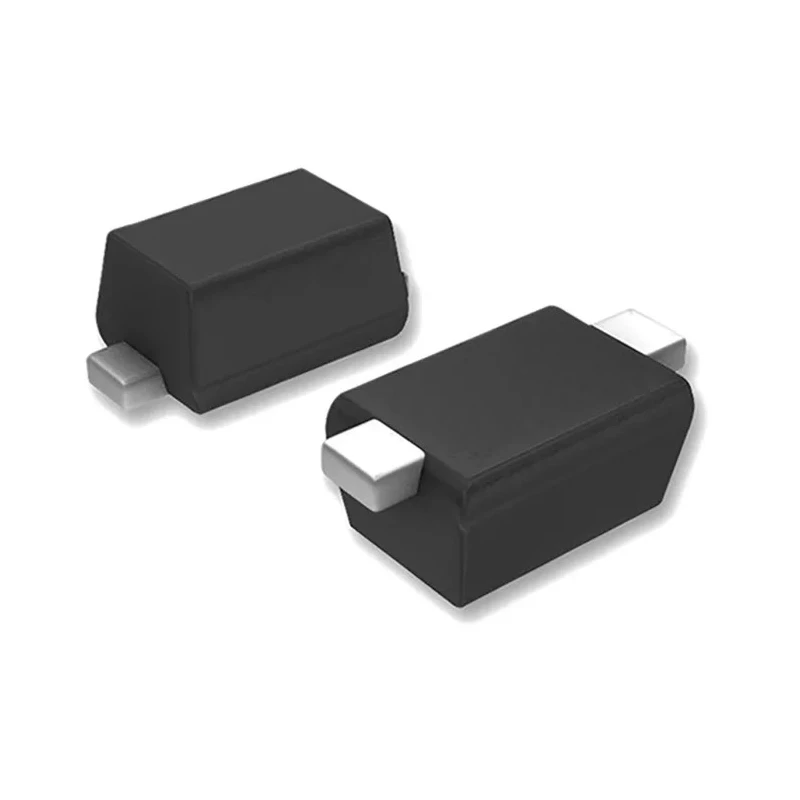

DiodesZetex 1N4148WT-7 is a single silicon junction switching diode designed for efficient signal switching in electronics circuitry. It supports a maximum forward current of 300mA and withstands reverse voltages up to 100V, making it ideal for various electronic power and signal switching applications.
This device is housed in a compact SOD-523 surface mount package with a 2-pin configuration, facilitating integration in modern circuit designs. The diode's low peak reverse recovery time of 4ns enables fast switching, beneficial for high-speed electronics and communication equipment.
With a maximum power dissipation of 400mW and the capability to handle peak non-repetitive surge currents up to 2A, it ensures durability under demanding operating conditions. Its operating temperature range from -65°C to 150°C allows for reliable performance in industrial, automotive, and consumer electronics environments.
The device meets the automotive grade AEC-Q101 standard, providing confidence for use in automotive electronic systems requiring rigorous quality and reliability. This diode is configured as a single silicon junction component for switching applications.
Maximum forward current of 300mA allows stable conduction. Surface mount SOD-523 package ensures compact mounting. Power dissipation rating of 400mW supports efficient heat management. Fast peak reverse recovery time of 4ns optimizes switching speed.
Wide operating temperature range (-65°C to 150°C) supports diverse conditions. Low forward voltage drop of 1.25V minimizes energy loss. Handles peak surge current of 2A for transient protection. Compliant with automotive AEC-Q101 standard.
This switching diode is widely applicable in industrial, automotive, electronic manufacturing, and semiconductor device assembly. It is an essential component for designers seeking reliable switching performance and efficiency in compact circuitry. EnvMart encourages further exploration of our extensive semiconductor component catalog for complementary products.
