HARWIN 7.62 mm Pitch Vertical 8 Way Through Hole Standard Pin Open Frame DIL Socket 1A D0808-42

Free Delivery in India | Lowest Global Shipping Charges

HARWIN 7.62 mm Pitch Vertical 8 Way Through Hole Standard Pin Open Frame DIL Socket 1A D0808-42

Name: HARWIN 7.62 mm Pitch Vertical 8 Way Through Hole Standard Pin Open Frame DIL Socket 1A D0808-42
Brand: HARWIN
SKU: 217166
Price: 2.09 USD
Availability: InStock



Category DIL Socket Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	150V dc
Brand	HARWIN
Orientation	Vertical
Current	1A
Frame Type	Open Frame
Length	10.1mm
Model	D0808-42
Depth	2.8mm
Width	10.02mm
Mount Type	Through Hole
Housing Material	Polycyclohexylenedimethylene Terephthalate
Contact Material	Beryllium Copper Alloy
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Pitch	7.62mm
Contact Plating	Gold, Tin over Nickel
Number of Contacts	8
Pin Type	Standard
Row Width	7.62mm

Key Features

Pitch between contacts measures 7.62 mm for standard spacing.
Constructed with a beryllium copper alloy contact material ensuring durability.
Contact plating consists of gold and tin over nickel for reliable conductivity.
Suitable for vertical orientation with solder termination type.
Designed to handle voltages up to 150 V dc safely.
Operating temperature ranges from -55°C up to 125°C for versatility.
Compact dimensions with length 10.1 mm, width 10.02 mm, and depth 2.8 mm.
Housing material is polycyclohexylenedimethylene terephthalate providing high stability.

Product Description

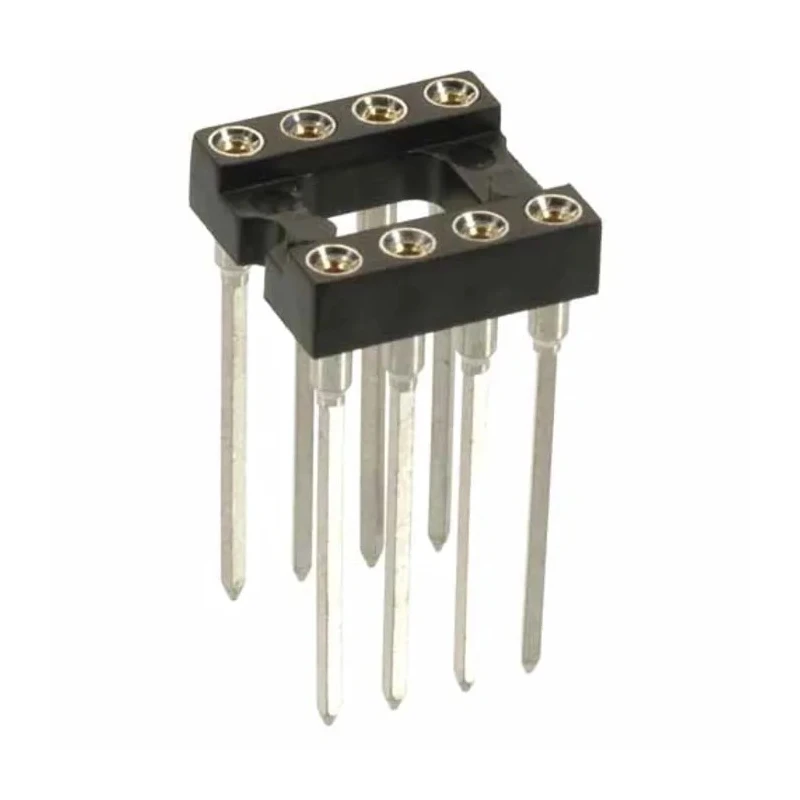

HARWIN D0808-42 is a high-quality 7.62 mm pitch vertical 8 way through-hole DIL socket designed for electronic component interfacing applications. This standard pin open frame socket provides reliable electrical connections with its gold and tin over nickel contact plating over beryllium copper alloy contacts, ensuring durability and excellent conductivity.

Featuring a robust frame type and a compact footprint of 10.1 mm length, 10.02 mm width, and 2.8 mm depth, it is manufactured using polycyclohexylenedimethylene terephthalate housing for superior mechanical strength and thermal stability. It supports a current rating of 1A and voltage rating of 150 V dc, suitable for various electronic assemblies.

This socket is intended for vertical mounting with solder termination, compatible with through-hole mounting on printed circuit boards. It operates safely in temperature ranges from -55°C to 125°C, meeting demanding industrial and laboratory environmental needs.

With 8 contacts spaced at 7.62 mm pitch and 7.62 mm row width, it fits pins between 0.40 and 0.56 mm diameter. It is ideal for applications such as electronic testing, prototyping, and production assembly in industrial, manufacturing, and laboratory settings.

Standard pin DIL Socket with open frame design. Contact plating: gold and tin over nickel ensuring reliable signal transmission. Durable beryllium copper alloy contacts for longevity and stable performance. Compact size supports space-constrained electronic designs.

Wide operating temperature and voltage range for industrial applications. Through-hole vertical mounting for secure PCB connections. Manufactured in the United Kingdom ensuring premium quality and compliance.

This component is part of a broad range of Harwin products known for their engineering precision and reliability. It suits electronics assembly lines, repair labs, and custom equipment builds. Browse more HARWIN connectors and sockets for tailored solutions at EnvMart.
