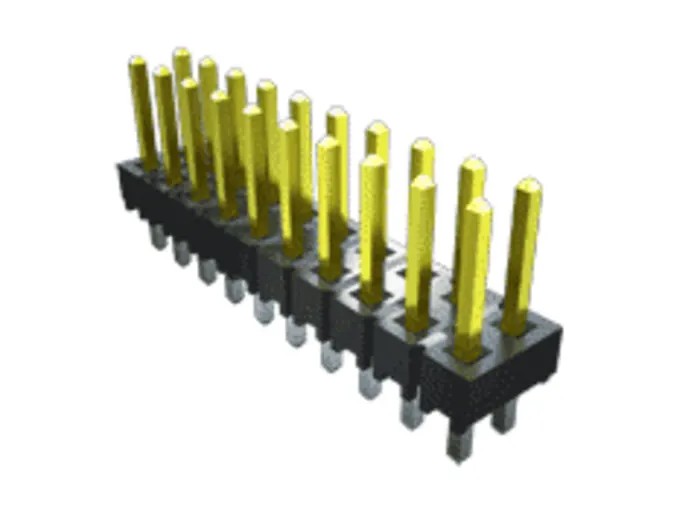

Samtec TSW Series Straight Through Hole Pin Header, 20 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-110-07-T-D

Samtec TSW-110-07-T-D is a high-quality pin header from the TSW series designed for industrial and commercial PCB applications. This through-hole pin header features 20 male contacts arranged in two rows with a 2.54 mm pitch, offering effective board-to-board and wire-to-board connectivity. The housing is constructed from durable glass filled polyester, ensuring mechanical strength and electrical insulation under demanding conditions.

The phosphor bronze contacts are plated with tin, providing excellent conductivity and corrosion resistance. The connector supports a current rating of 4.7A and a voltage rating of 465V, suitable for a broad range of electronic applications including industrial machinery, automation controls, and consumer electronics. It operates reliably across a wide temperature range from -55°C to 125°C.

This pin header has a straight orientation and through-hole solder termination, making it compatible with standard PCB manufacturing processes. It is an Extended Life Product™, passing rigorous 10-year Mixed Flowing Gas (MFG) testing and supporting between 250 to 2,500 mating cycles depending on configuration, ensuring long service life.

Glass filled polyester housing for robust protection. Phosphor bronze tin-plated male contacts for reliable electrical connections. Rated current: 4.7 amperes and voltage: 465 volts. Operating temperature range from -55°C to 125°C.

Unshrouded with straight orientation suited for board-to-board and wire-to-board applications. Through-hole solder termination ensures sturdy PCB mounting. Extended life connector passing rigorous industrial standards for durability.

This pin header is ideal for use in industries such as electronics manufacturing, laboratory equipment, automation systems, and telecommunications. It fulfills critical functionality for PCB interconnections requiring reliable mechanical and electrical performance.
