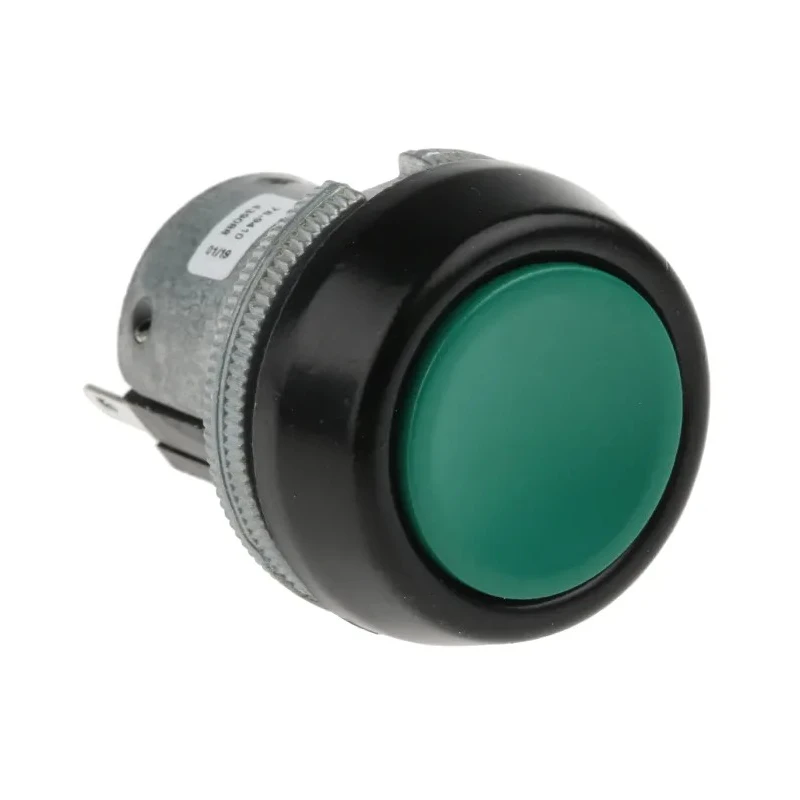

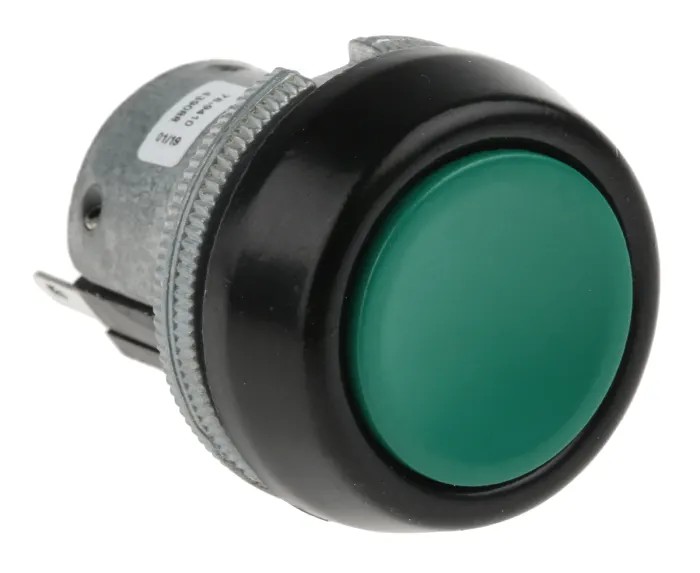

ITW Switches Momentary Panel Push Button Switch 22 mm Cutout, SPDT, Clear LED, IP67, Green, 250 V AC 10A 76-9410/439088G

The ITW Switches 76-9410/439088G Push Button Switch is a high-performance momentary switch designed for panel mounting in critical control and automation applications. It offers a 22 mm cutout size, round actuator, and a SPDT contact configuration, ensuring compatibility with standard industrial panels and ease of integration into equipment controls.

This model operates as a momentary switch, which means it initiates electrical contact only while pressed and reverts to the off position when released. This feature is ideal for operator-driven controls where momentary activation is required, such as start/stop, reset, or signal triggering in control circuits.

The actuator is green and equipped with a clear LED indicator for visible feedback, enhancing safety and operational awareness. The panel sealed to IP67 ensures complete protection against dust ingress and temporary immersion in water up to 1 meter for 30 minutes, making it reliable for outdoor or harsh industrial environments - including mining, petrochemical, process control, and military applications where environmental resistance is essential.

Electrical performance includes a maximum contact voltage of 250 V AC and a contact current capacity of up to 10A. The solder terminals provide secure and simple connections, suitable for both soldering and faston techniques.

Materials used include a non-sparking zinc alloy for the bezels and actuator, optimizing safety in potentially explosive environments. The actuator is designed to withstand high impact, surviving a 5 kg mass dropped from 40 cm (20J), further enhancing reliability and vandal resistance.

The switch supports a broad operating temperature range from -40°C up to 125°C, enabling installation in a variety of climates and industrial conditions. It conforms to CSA and UL standards for safety and performance.

Not suitable for emergency stop applications, as it is not a positive break type. Designed specifically for robust industrial uses, material handling, process control, petrochemical, and environments with vandal-resistant requirements.

Momentary operation for operator-driven control circuits. Compatible with industry-standard 22 mm panel cutouts. Dustproof and water-resistant with IP67 panel sealing. Green actuator with clear LED for visual indication.

Robust construction suitable for military, mining, and industrial environments. Explore more industrial switches from EnvMart and ITW Switches to meet diverse automation, control, and safety requirements.
