ITW Switches 48 Series Miniature Push Button Switch, Latching, Panel Mount, 13.6 mm Cutout, SPST, Clear LED 48-2-RB-N-YL-B

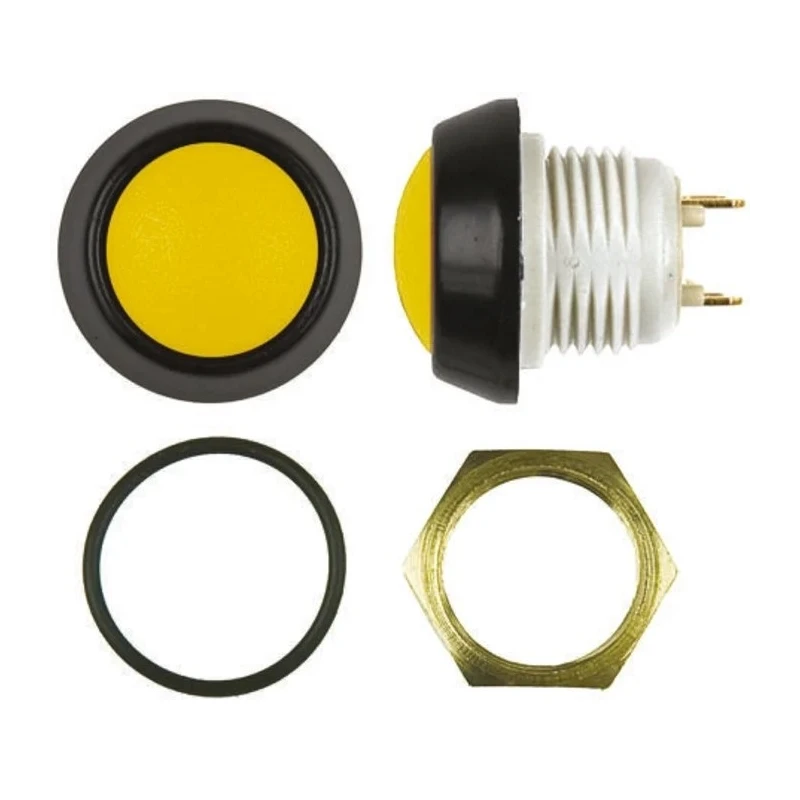

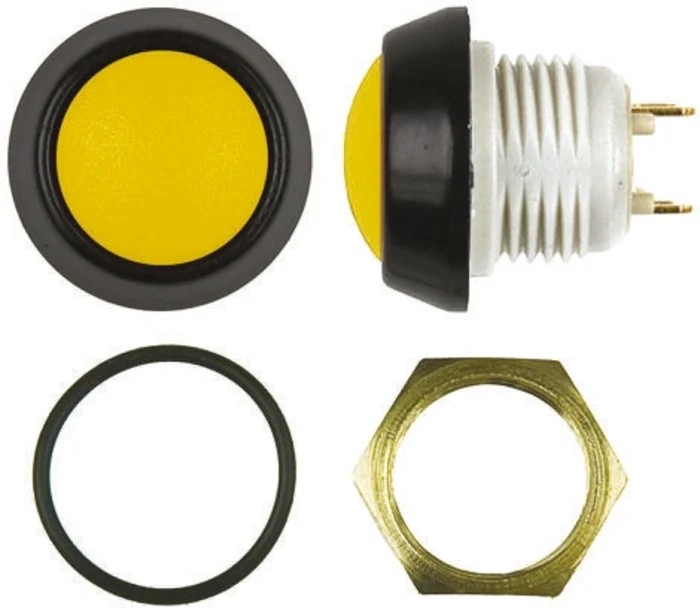

ITW Switches 48-2-RB-N-YL-B is a miniature, sealed pushbutton switch designed for panel mounting with a 13.6 mm cutout. It incorporates a yellow colored button actuator and a clear LED to indicate switch status. The switch operates in a latching mode with SPST (single pole single throw) contact configuration and is sealed to an IP67 rating, providing robust protection against dust and water ingress.

This miniature switch is crafted to operate reliably in demanding conditions, with an operating temperature range spanning from -40°C to 85°C, making it suitable for a wide array of industrial, office equipment, medical devices, mass transportation controls, and food processing machinery. Terminations are solder type, offering secure electrical connections.

The switch supports 12 V direct current and 250 V alternating current contact voltages, handling up to 250mA contact current. The product is compliant with CSA and UL standards, ensuring safety and quality assurance in various applications.

Features such as long life, gold contacts, and panel sealing make this push button switch ideal for environments requiring durability and reliable performance. The compact design of the 48 Series offers versatility with multiple button colors, switching actions, bezels, and termination options suit diverse control panel needs.

This miniature Push Button Switch offers panel mounting convenience with high ingress protection (IP67). The latching contact mechanism provides maintained contact until manually switched. Yellow actuator color with clear LED enhances visibility and status indication.

Robust construction suitable for medical, industrial, transportation, and office automation use cases. Wide temperature operating range and international safety certifications ensure performance reliability. Solder terminals allow for durable and secure circuit connections.

Compact design supports versatile application environments with different style options available. Explore EnvMart for a broad selection of industrial switches, including the ITW Switches 48 Series and related control components for electrical and automation applications.
