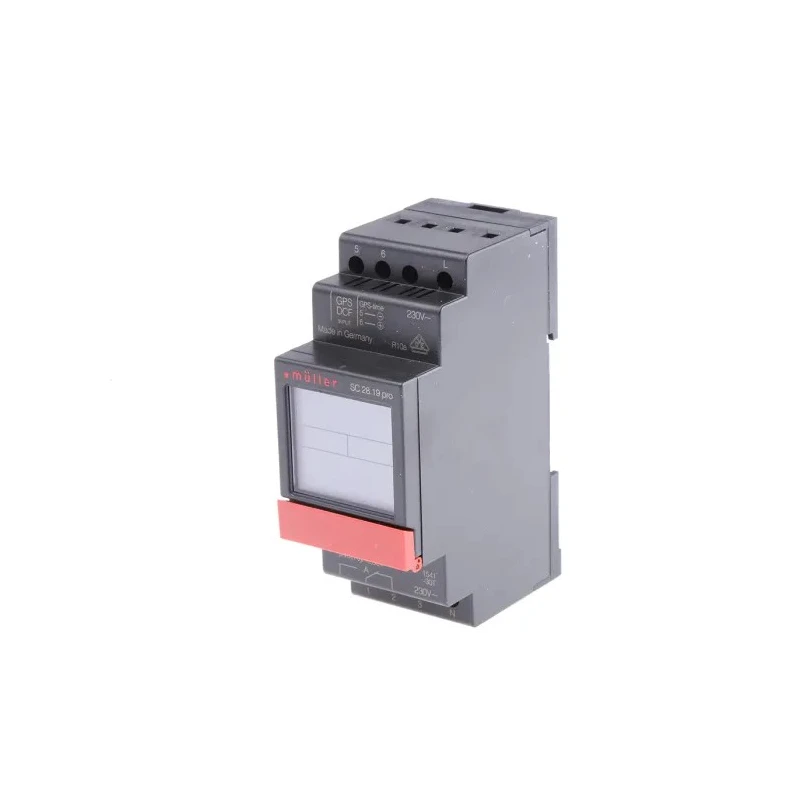

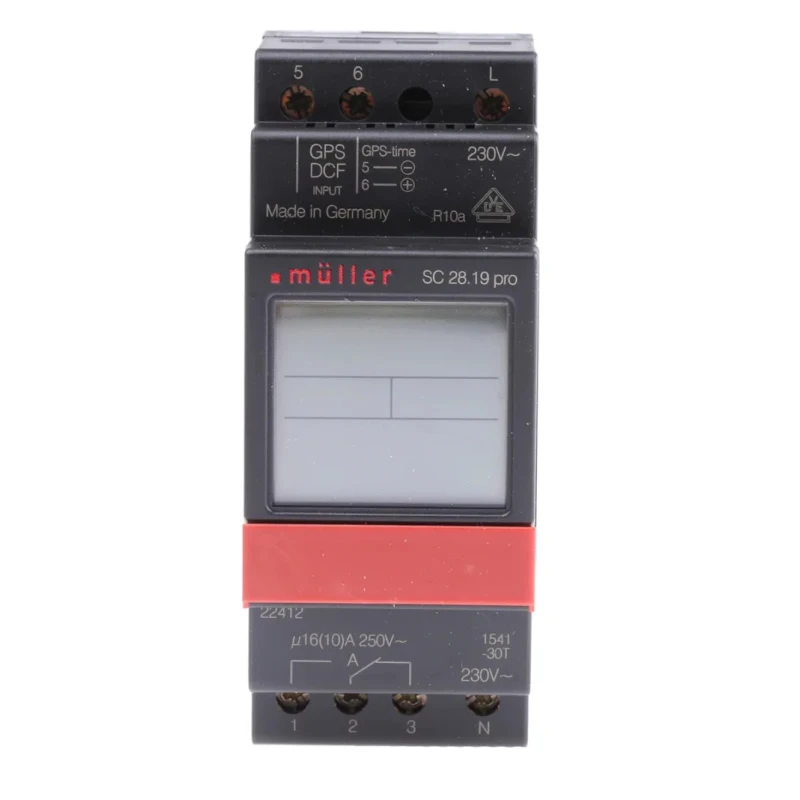

Muller Digital DIN Rail Time Switch SC 28.19 PRO 230V 50-60HZ 230V AC 1 Channel Digital Timer Germany
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Muller |
| Battery Life | 10year |
| Height | 90mm |
| Model | SC 28.19 PRO 230V 50-60HZ |
| Depth | 63mm |
| Series | SC |
| Contact Configuration | SPDT |
| Sub Type | Digital |
| Terminal type | Pull up |
| Number Of Channels | 1 |
| Maximum Supply Voltage | 230V ac |
| Units Measured | Minutes |
| Memory Spaces | 300 |
| Segment Length | 1min |
Key Features
- Supports daily, weekly, and yearly programming with up to 300 memory spaces.
- Operates on 230V AC supply with 10-year battery life for reliable backup.
- Features manual override, permanent mode, and PIN-Code security for secure operation.
- Equipped with SPDT contact configuration and pull-up terminal type.
- Includes automatic daylight saving time and holiday functions for convenience.
- Compact dimensions of 90mm height and 63mm depth suitable for DIN rail mounting.
- Advanced functions include pulse, cycle, timer, elapsed time, and channel button functions.
- Programmable remotely using PC and Data-key accessories (sold separately).
Product Description
Muller SC 28.19 PRO 230V 50-60HZ Digital DIN Rail Time Switch is a high-precision device designed for automation and process control in industrial, commercial, laboratory, and electrical applications. Operating on a 230V AC supply, it offers advanced digital time control with a single channel and multiple programmable features.
This time switch supports daily, weekly, and yearly programming and accommodates up to 300 memory spaces, allowing for flexible complex scheduling. It features a permanent by date/holiday function, manual permanent mode, and manual override for ease of use and operational flexibility.
Security features include a PIN-Code protection and Data-key function, safeguarding programmed data and enabling secure remote programming. The device automatically manages daylight saving time changes and includes cycle, pulse, elapsed time, and timer functions enhancing its industrial utility.
Contact configuration is SPDT with pull-up terminal type, ensuring consistent and reliable switching. Its compact size with 90mm height and 63mm depth is optimized for DIN rail installations.
This product is manufactured in Germany and certified for use in exacting industrial automation environments. Note that the PC programming package and Data-key accessories are available separately for enhanced program management and data backup.
Supports daily, weekly, and yearly programming with up to 300 memory spaces. Operates on 230V AC supply with 10-year battery backup life. Includes manual override, permanent mode, and PIN-Code security. Features automatic daylight saving time and holiday functions.
Advanced timing functions including pulse, cycle, timer, and elapsed time. Contact configuration SPDT with pull-up terminal type. Compact dimensions for easy DIN rail mounting: 90mm height, 63mm depth. Remote programmability via PC and Data-key accessories (not included).
This Muller digital time switch is suitable for diverse applications in industrial automation, electrical installations, HVAC systems, and commercial process control. Explore similar Time Switches in the Automation & Control Gear catalog for additional solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 230V AC.
It accommodates up to 300 memory spaces for flexible programming.
This unit has a height of 90mm and a depth of 63mm, making it suitable for DIN rail mounting.
It features an SPDT (Single Pole Double Throw) contact configuration.
It supports daily, weekly, and yearly programming, allowing for complex scheduling.
Yes, it includes PIN-Code protection for safeguarding programmed data.
The device has a battery life of 10 years for reliable backup operation.
Yes, it can be programmed remotely using a PC and Data-key accessories, which are sold separately.
It includes pulse, cycle, timer, and elapsed time functions for enhanced utility.
This product is manufactured in Germany.
It features a pull-up terminal type for connections.
It is suitable for industrial automation, electrical installations, HVAC systems, and commercial process control.
