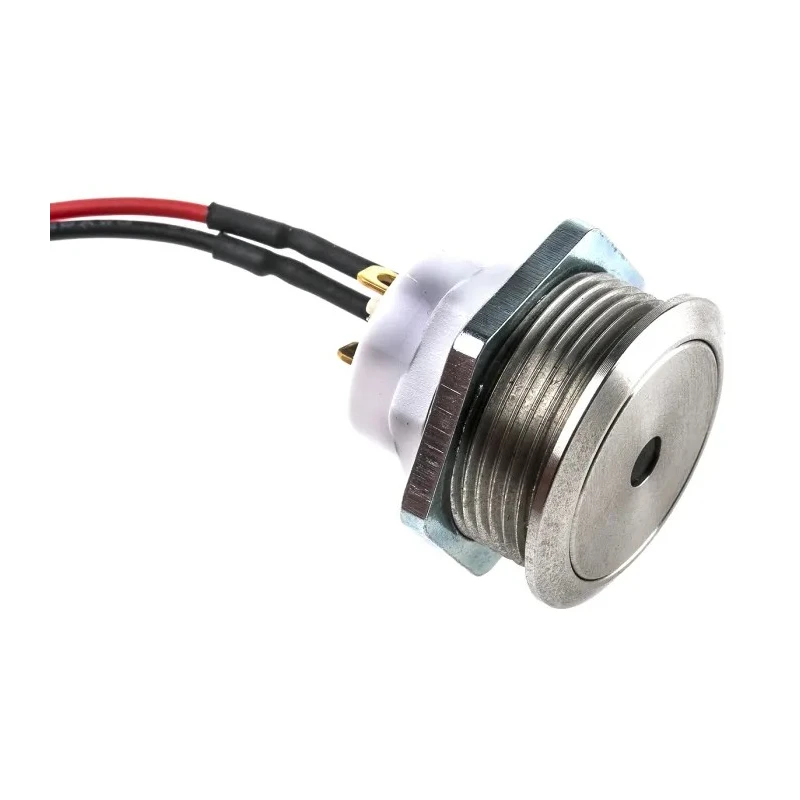

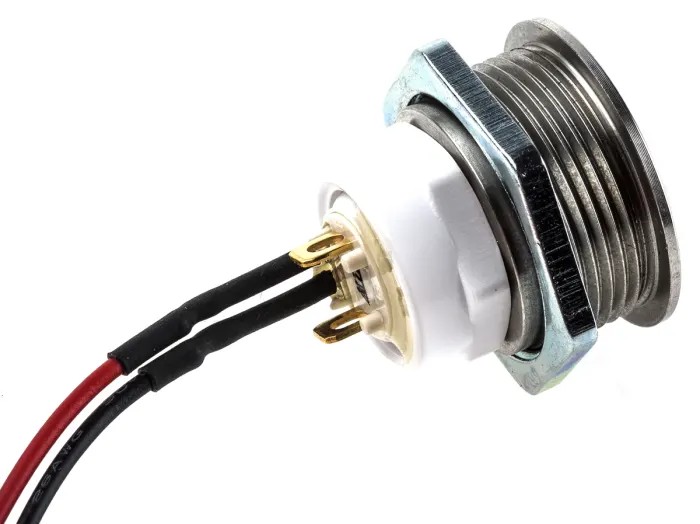

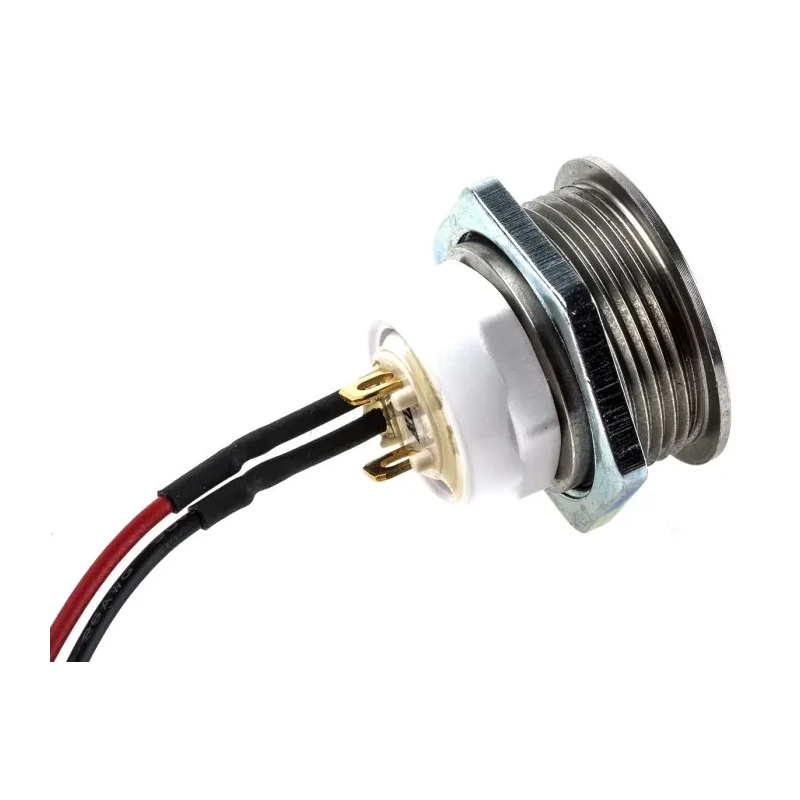

ITW Switches 48M Series Illuminated Push Button Switch 19 mm Cutout Panel Mount Silver SPST IP67 48M-111B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | ITW Switches |
| Model | 48M-111B |
| IP Rating | IP67 |
| Mount Type | Panel |
| Series | 48M |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 702-7083Brand: ITW SwitchesManufacturers Part No.: 48M-111B |
| Cutout Diameter | 19mm |
| Push Button Colour | Silver |
| Push Button Style | Round |
Key Features
- Stainless steel housed panel-sealed pushbutton switch for rugged environments.
- Features centre-spot and ring-style LED illumination for clear indication.
- Gold-plated contacts rated at 250mA @ 12Vdc and 100mA @ 48Vdc for reliable switching.
- Single hex nut panel fixing suitable for panel thickness from 1.3 to 3.8 mm.
- Wide operating temperature range from -25°C to 85°C.
- IP67 rating ensures strong resistance to dust and water ingress.
- Ideal for industrial machines, outdoor controls, kiosks, security, food processing, and medical equipment.
- Complies with RoHS standards for environmental safety.
Product Description
ITW Switches 48M-111B 48M Series Illuminated Push Button Switch is a high-quality electrical component designed for panel mounting applications requiring a 19 mm cutout diameter. It features a stainless steel housed metal switch with centre-spot and ring-style LED illumination options, making it highly visible and suitable for various environments.
This illuminated push button switch offers a single-pole single-throw (SPST) contact configuration with gold-plated contacts rated at 250mA at 12Vdc and 100mA at 48Vdc, providing reliable electrical performance. The switch includes solder terminals for secure wiring connections.
The robust design incorporates an IP67 panel sealing rating to protect against dust and water ingress, ensuring durability in harsh industrial and outdoor conditions. It operates effectively within a temperature range of -25°C to 85°C, allowing versatile use in many applications.
Installation is simplified through a single hex nut securing method compatible with panel thicknesses between 1.3 and 3.8 mm. This feature makes it adaptable to various control panels and enclosures.
Typical industrial uses include machinery control panels, outdoor control stations, kiosks, security systems, food processing machines, and medical product interfaces, benefiting from the strong construction and clear LED illumination.
Stainless steel housed panel-sealed pushbutton switch for rugged use. Centre-spot and ring-style LED illumination options enhance visibility. Gold-plated, reliable SPST contacts rated for low current switching. IP67 panel sealing protects against dust and water.
Suitable for panel thicknesses from 1.3 to 3.8 mm with single hex nut fixing. Wide operating temperature range from -25°C to 85°C. Complies with RoHS environmental standards. Ideal for industrial, outdoor, security, food processing, and medical applications.
This product is manufactured in Taiwan, Province Of China, maintaining high quality and compliance with international standards. Explore the broad range of Push Button Switches available on EnvMart to find solutions specific to your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ITW Switches 48M-111B has an IP67 rating, ensuring strong resistance to dust and water ingress.
This model operates effectively within a temperature range of -25°C to 85°C.
It features a single-pole single-throw (SPST) contact configuration.
The required cutout diameter for mounting the ITW Switches 48M-111B is 19 mm.
The gold-plated contacts are rated at 250mA at 12Vdc and 100mA at 48Vdc.
It is secured to the panel using a single hex nut, compatible with panel thicknesses from 1.3 to 3.8 mm.
The switch features a stainless steel housing, providing durability for rugged environments.
The switch includes solder terminals for secure wiring connections.
It complies with RoHS standards for environmental safety.
Typical applications include industrial machines, outdoor controls, kiosks, security systems, food processing, and medical equipment.
The push button has a round style and is silver in color.
This product is manufactured in Taiwan, Province Of China.
