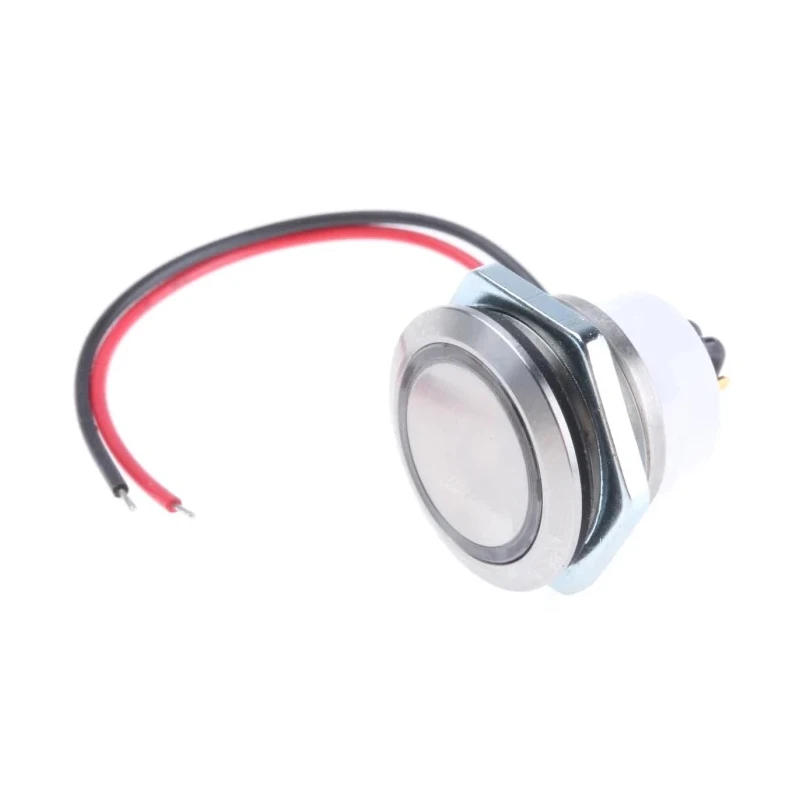

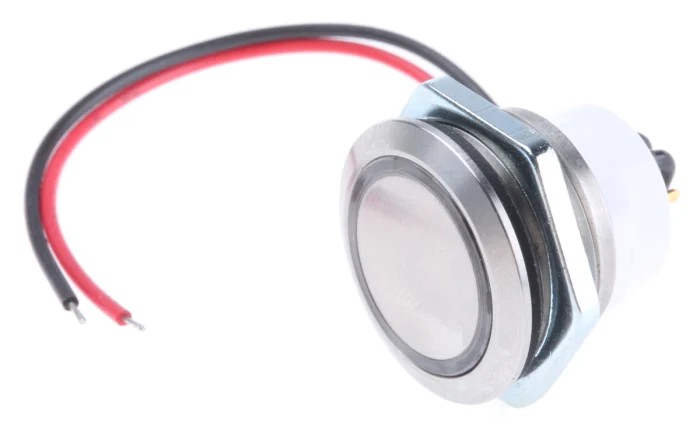

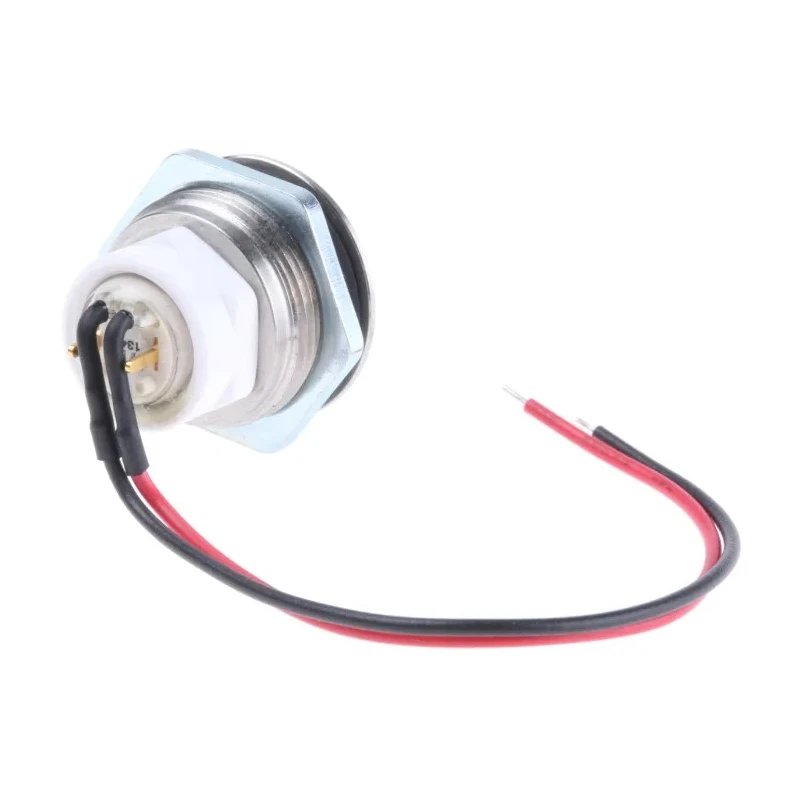

ITW Switches 48M Series Illuminated Panel Mount Latching Push Button Switch, Silver Actuator, SPST, Red LED, IP67 48M-612R

ITW Switches 48M-612R is an illuminated push button switch from the 48M series designed for panel mounting applications. It features a durable stainless steel construction with a silver actuator and red LED illumination, making it ideal for demanding environments requiring IP67 sealing against dust and water ingress. The switch operates with SPST on-off contact configuration for straightforward control.

Designed for industrial machinery, outdoor controls, security products, food processing equipment, and medical devices, this switch delivers reliable operation across a broad temperature range from -25°C to 85°C. The gold-plated contacts ensure steady electrical performance and longevity, supporting contact currents of up to 250mA at 12 V dc and 100mA at 48 V dc.

The panel mount features a 19.4 mm cutout and accommodates panel thicknesses between 1.3 and 3.8 mm using a single hex nut for easy installation. The red LED provides clear visual status indication, enhancing operational efficiency and safety.

This push button switch complies with UL and CSA safety standards, assuring high-quality manufacturing and operational safety. It suits a range of applications in industrial, commercial, and control panel environments requiring robust, reliable switching solutions with visual feedback.

Rugged stainless steel panel-sealed push button switch with IP67 rating. Gold-plated SPST contacts rated at 250mA DC current. Silver actuator with latching operation and red LED illumination. Compact 19.4 mm panel cutout and single hex nut fixing.

Wide operating temperature from -25°C to 85°C. Complies with UL and CSA certifications. Ideal for industrial machinery, kiosks, medical, and food processing equipment. Explore more Push Button Switches and control solutions in the Electronics & Electricals category at EnvMart for reliable industrial and commercial applications.
