Analog Devices Line Transceiver TTL CMOS Surface Mount 32-Pin LFCSP ADM3307EACPZ

Free Delivery in India | Lowest Global Shipping Charges

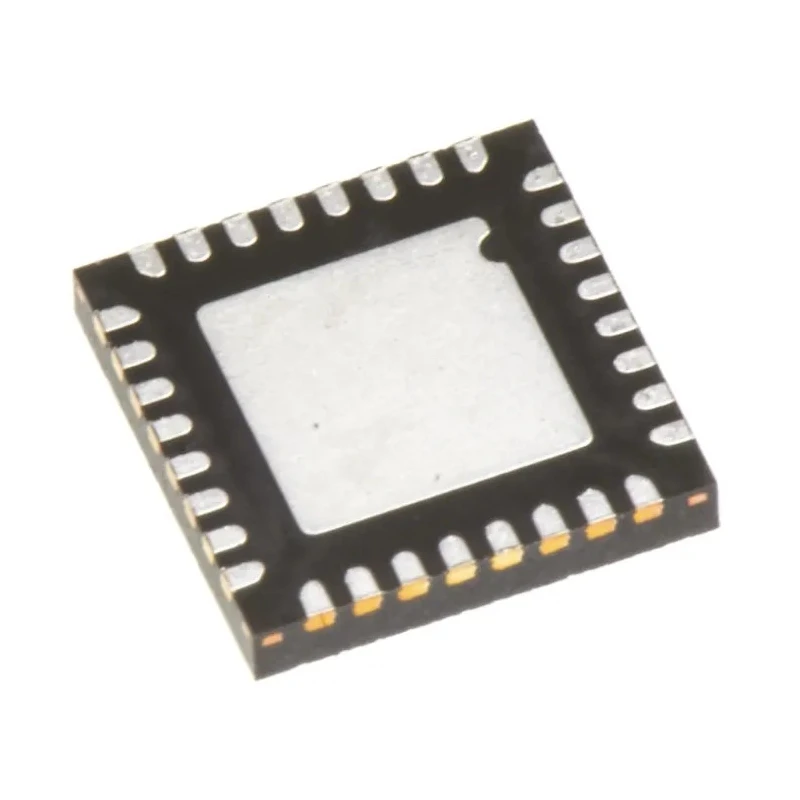

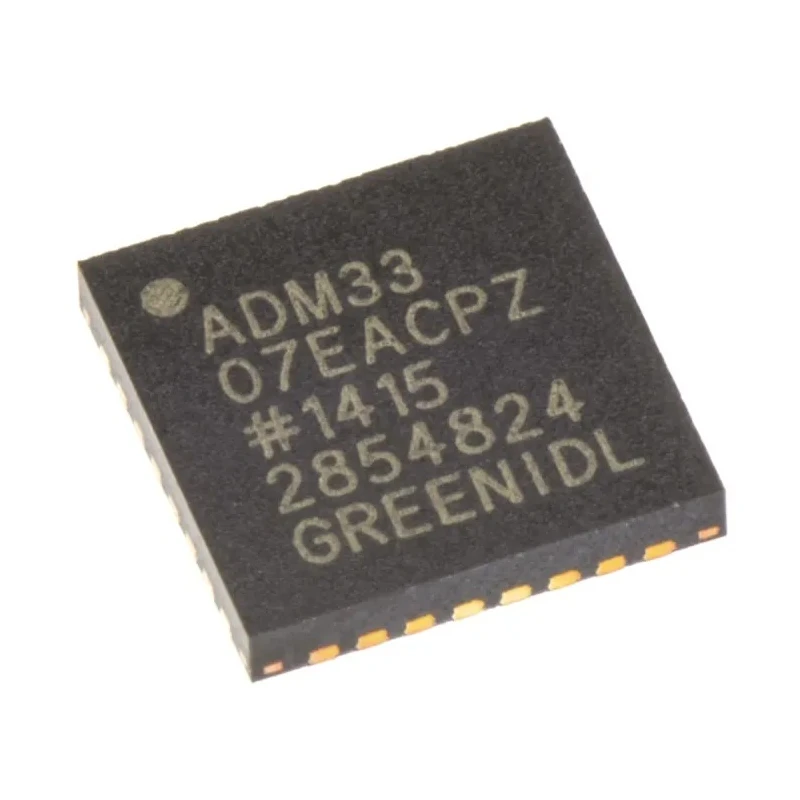

Analog Devices Line Transceiver TTL CMOS Surface Mount 32-Pin LFCSP ADM3307EACPZ

Name: Analog Devices Line Transceiver TTL CMOS Surface Mount 32-Pin LFCSP ADM3307EACPZ
Brand: Analog Devices
SKU: 213591
Price: 5.3 USD
Availability: InStock



Category Line Interface ICs Brand Analog Devices Condition New

Specifications

Country of Origin	India
Brand	Analog Devices
Height	800μm
Length	5.1mm
Model	ADM3307EACPZ
Width	5mm
Mount Type	Surface
Output type	TTL, CMOS
Series	ADM3307E
Input Type	Single Ended
Maximum Operating Temperature	85°C
Package Type	LFCSP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver
Standards/Approvals	EIA-232, IEC 1000-4-2
Pin Count	32
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Driver & Receiver
Minimum Supply Voltage	2.7V
Maximum Propagation Delay Time @ CL	1μs
Supply Current	1.5mA

Key Features

Compatible with RS-232 line driver and receiver applications.
Operates within a supply voltage range of 2.7V to 3.6V.
Features low supply current consumption of 1.5mA for efficient power usage.
Designed for operation in harsh temperature environments from -40°C to 85°C.
Package dimensions include length of 5.1mm, width of 5mm, and height of 800μm.
Maximum propagation delay time of 1μs ensures fast signal processing.
Compliance with EIA-232 and IEC 1000-4-2 standards for reliable performance.
Surface mount LFCSP package type for compact PCB designs.

Product Description

Analog Devices ADM3307EACPZ is a high-performance RS-232 line transceiver designed for seamless TTL and CMOS logic interfacing in demanding industrial and electronic applications. Packaged in a compact 32-pin LFCSP surface mount package, the device facilitates robust data communication between logic-level signal systems and RS-232 compatible equipment.

Operating with a minimum supply voltage of 2.7V up to a maximum of 3.6V, the ADM3307EACPZ offers low supply current of just 1.5mA, making it suitable for power-sensitive applications. Its maximum propagation delay time of 1μs supports high-speed data transmissions essential for industrial communication and control systems.

The device is engineered to operate reliably across an extended temperature range from -40°C to 85°C, ensuring stable performance in harsh environments. With physical dimensions of 5.1mm length, 5mm width, and 800μm height, it fits compact PCB designs. It complies with industry standards EIA-232 and IEC 1000-4-2, ensuring electromagnetic compatibility and robustness.

This line transceiver is ideal for industrial automation, instrumentation, telecommunications equipment, and embedded systems requiring reliable and efficient serial communication interfaces. The ADM3307E series reflects Analog Devices' commitment to high quality and dependable semiconductor solutions.

Compatible with RS-232 line driver and receiver systems. Low power consumption at 1.5mA supply current. Broad operating temperature range from -40°C to 85°C. Compact surface mount LFCSP 32-pin package. Fast signal processing with 1μs max propagation delay.

Compliant with EIA-232 and IEC 1000-4-2 standards. Suitable for industrial, telecom, and embedded applications. Explore our full range of Line Interface ICs at EnvMart for comprehensive semiconductor solutions tailored to your electronic design needs.
