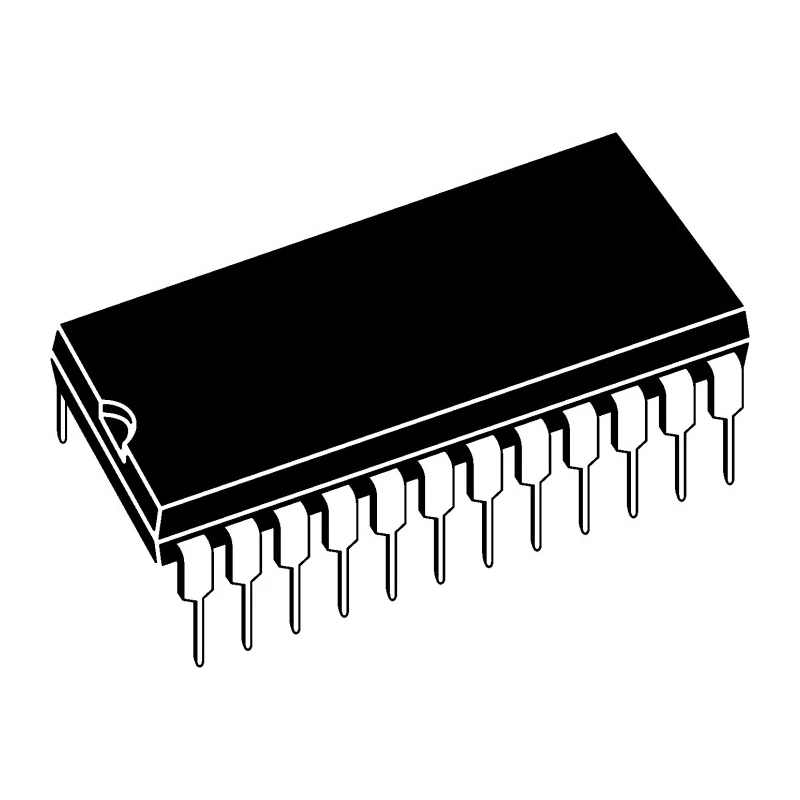

Analog Devices CMOS Line Transceiver, 24-Pin PDIP, Through Hole Mount ADM208EANZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Analog Devices |
| Height | 5.33mm |
| Length | 32.51mm |
| Model | ADM208EANZ |
| Width | 7.11mm |
| Mount Type | Through Hole |
| Output type | CMOS |
| Input Type | Single Ended |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transceiver IC |
| Standards/Approvals | IEC1000-4-4, 89/336/EEC, EN55022, CCITT V.28, EIA-232E, CISPR22, IEC1000-4-2 |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | Cmos Logic Family |
| Logic Function | Transceiver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -40μA |
| Maximum Propagation Delay Time @ CL | 2μs |
| Supply Current | 13mA |
| Maximum Low Level Output Current | 1.6mA |
Key Features
- Operates with supply voltage range of 4.5V to 5.5V.
- Through hole mounting type for easy integration on printed circuit boards.
- Supports single-ended input and CMOS outputs for enhanced signal integrity.
- Provides a maximum propagation delay time of 2 microseconds at capacitive load.
- Functions reliably in industrial temperature range from -40°C to 85°C.
- Compact dimensions with length 32.51 mm, width 7.11 mm, and height 5.33 mm.
- Low supply current consumption of 13 mA for power efficient designs.
- Compatible with various standards including IEC1000-4-4, 89/336/EEC, EN55022, and EIA-232E.
Product Description
Analog Devices ADM208EANZ is a high-performance CMOS line transceiver IC featuring a 24-pin PDIP package with through hole mount. Designed to support RS-232 line driver and receiver functions, this transceiver operates within a supply voltage range of 4.5V to 5.5V, delivering reliable communication interfacing for electronic circuits and industrial equipment.
It provides single-ended input and CMOS type outputs ensuring robust data transmission with maximum propagation delay time limited to 2 microseconds under capacitive load conditions. The low supply current of 13 mA facilitates power-efficient circuit design, which is critical in embedded and industrial applications.
This component complies with several international standards including IEC1000-4-4, 89/336/EEC, EN55022, and EIA-232E, making it compatible with common communication protocols and electromagnetic compatibility requirements. Operating temperature range from -40°C to 85°C suits it for deployment in harsh environmental conditions typical of industrial, manufacturing, and laboratory settings.
The physical package dimensions are 32.51 mm length, 7.11 mm width, and 5.33 mm height, enabling compact PCB layouts. Mounting is via through hole technology, facilitating sturdy mechanical and electrical connections.
Operates within 4.5V to 5.5V supply voltage for stable functionality. Single-ended input with CMOS output logic supports versatile interfacing. Maximum propagation delay of 2 microseconds ensures timely signal processing.
Wide temperature range (-40°C to 85°C) enhances reliability in various applications. Low supply current consumption at 13 mA contributes to energy efficient designs. Compliant with IEC and EIA industry standards for electromagnetic compatibility and signal integrity.
Compact PDIP 24-pin package for easy installation and replacement.
The Analog Devices ADM208EANZ line transceiver is ideal for use in industrial automation, telecommunications, data acquisition systems, laboratory instruments, and other applications requiring RS-232 compliant line driver and receiver capabilities. Its CMOS technology combined with robust electrical parameters offers a dependable solution for signal transmission & reception needs in complex electronic systems.
Explore EnvMart's comprehensive selections of semiconductor Line Interface ICs and enhance your electronic designs with reliable components like the ADM208EANZ from Analog Devices.
