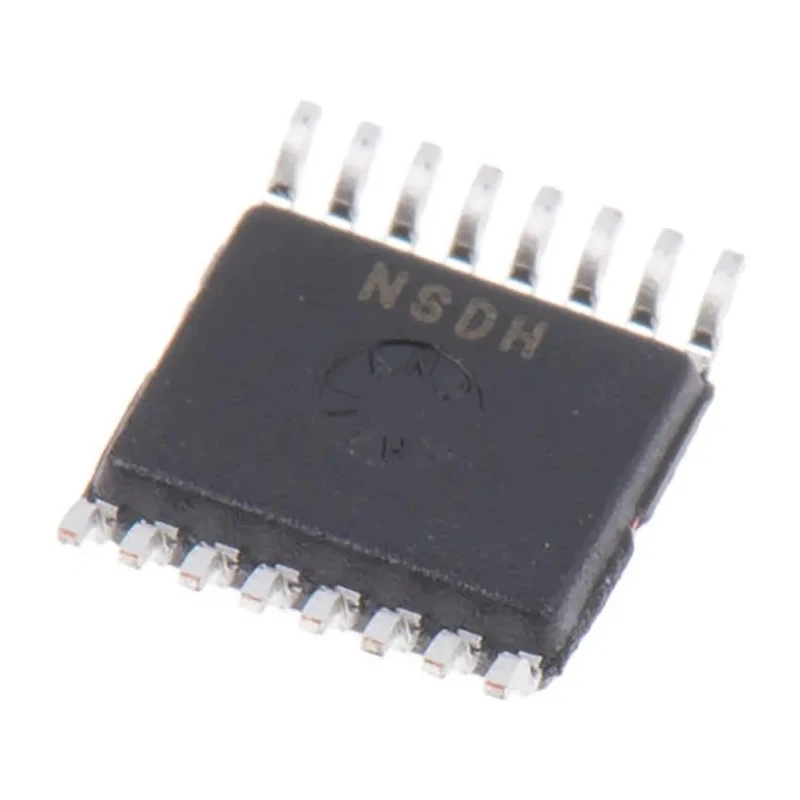

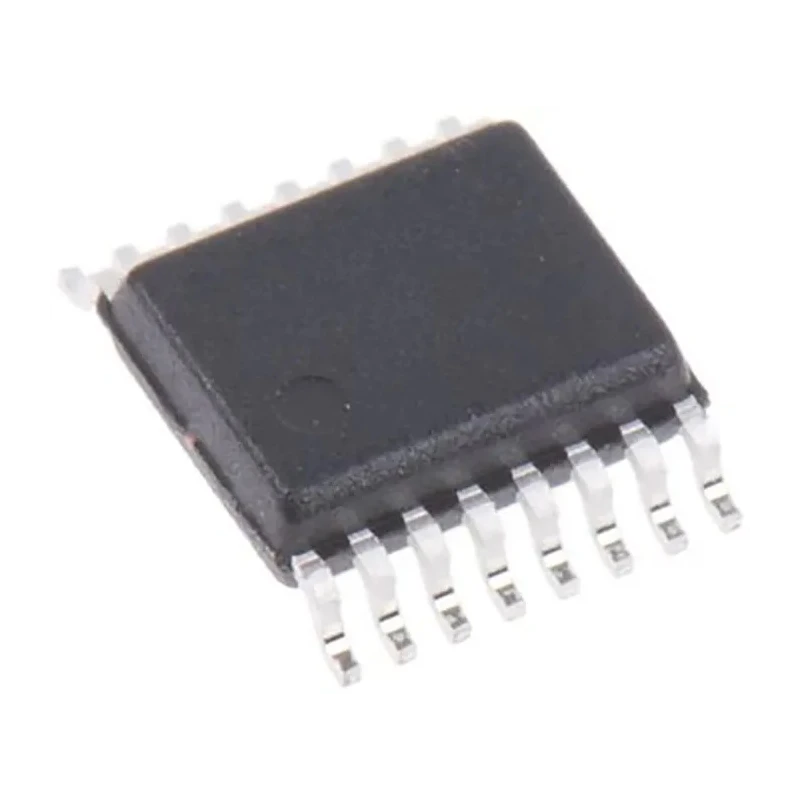

Analog Devices 4 Voltage Supervisor Quad UV/OV Positive/Negative 16-Pin QSOP ADM12914-2ARQZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Analog Devices |
| Height | 1.75mm |
| Length | 5mm |
| Model | ADM12914-2ARQZ |
| Width | 4.01mm |
| Mount Type | Surface |
| Series | ADM12914 |
| Maximum Operating Temperature | 125°C |
| Package Type | QSOP |
| Sub Type | Quad UV/OV Positive/Negative |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 2.3V |
| Number of Supervisors | 4 |
| Output Driver | Active Low, Open Drain |
| Monitored Voltage | 2.3V |
Key Features
- Monitors multiple supply voltages with 4 supervisors.
- Active low, open drain output driver ensures reliable signal output.
- Operates over a supply voltage range from 2.3V to 6V efficiently.
- Surface mount QSOP package with 16 pins supports compact PCB designs.
- Wide operating temperature range from -40°C to 125°C suitable for harsh environments.
- Ensures microprocessor supply voltage supervision for system reliability.
- Lid height of 1.75mm and compact dimensions of 5mm length by 4.01mm width.
- Ideal for desktop, laptop, notebook computers, portable battery-powered devices, test instruments, and multiple-output supplies.
Product Description
Analog Devices ADM12914-2ARQZ is a quad voltage supervisor IC designed to monitor and supervise multiple power supply voltages in electronic systems. Featuring 4 voltage supervisors supporting ultraviolet and overvoltage detection in both positive and negative directions, this IC ensures stable supply voltage supervision critical for microprocessor and microcontroller applications.
This surface mounted device comes in a 16-pin QSOP package offering a compact footprint with dimensions of 5mm length, 4.01mm width, and a height of 1.75mm. It supports supply voltages from 2.3V minimum up to 6V maximum and operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive, and consumer electronics environments.
The device features an active low, open drain output driver that allows easy interface with external monitoring circuits. It does not include watchdog timer or manual reset functionality but provides robust multi-voltage supervision for power failure detection and microprocessor reset circuitry.
Used extensively in desktop, laptop, notebook computers, test and measurement instruments, as well as portable battery-powered equipment and complex multiple-output power supplies, the ADM12914 series enhances system reliability by detecting undervoltage and overvoltage conditions swiftly.
Monitors four separate voltages simultaneously with quad supervisors. Compact QSOP 16-pin package ideal for space-constrained designs. Wide temperature tolerance for industrial and commercial applications. Surface mount mount type facilitates automated PCB assembly.
Active low open drain output driver for safe, responsive signaling. Fully supports microprocessor and microcontroller voltage monitoring. No watchdog timer or manual reset, optimized for power supervision. Widely applicable in computing, instrumentation, and portable devices.
This product is a new and reliable solution for power supervision in demanding electronic systems. For further information and detailed technical documents, consult Analog Devices resources and design software tools.
Browse EnvMart's extensive collection of power management ICs and Voltage Supervisors to find complementary products for your electronics and industrial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a supply voltage range from 2.3V to 6V.
The ADM12914-2ARQZ operates reliably over a wide temperature range from -40°C to 125°C.
It has an active low, open drain output driver, which allows for safe and responsive signaling.
This unit has dimensions of 5mm in length, 4.01mm in width, and a height of 1.75mm.
The device comes in a surface mount QSOP package with 16 pins.
No, the ADM12914-2ARQZ does not include a watchdog timer or manual reset functionality.
The monitored voltage for this model is a minimum of 2.3V.
The country of origin for this product is India.
The maximum operating temperature is 125°C.
This voltage supervisor has a pin count of 16.
