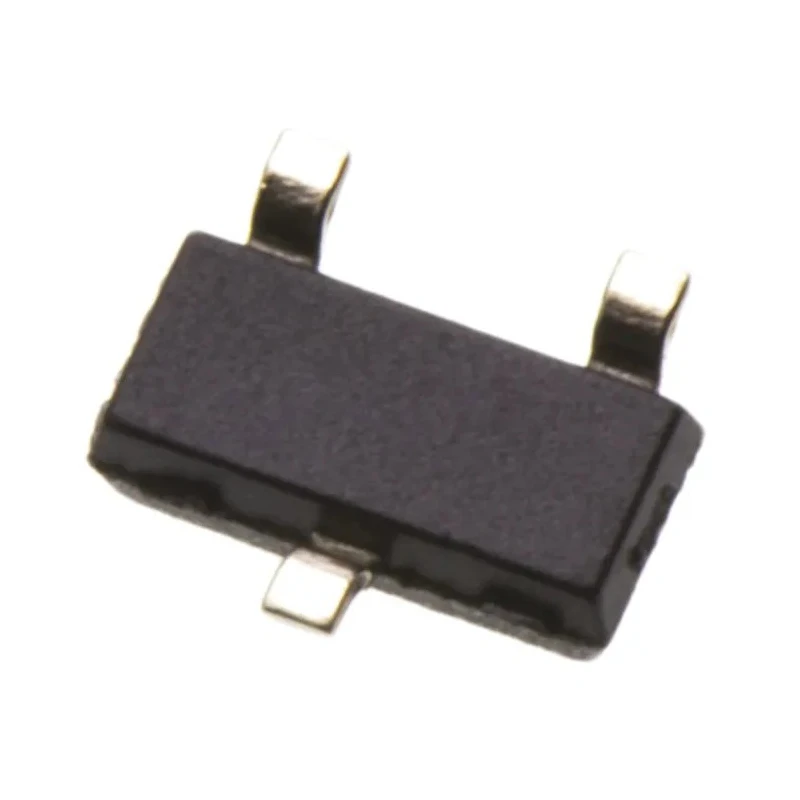

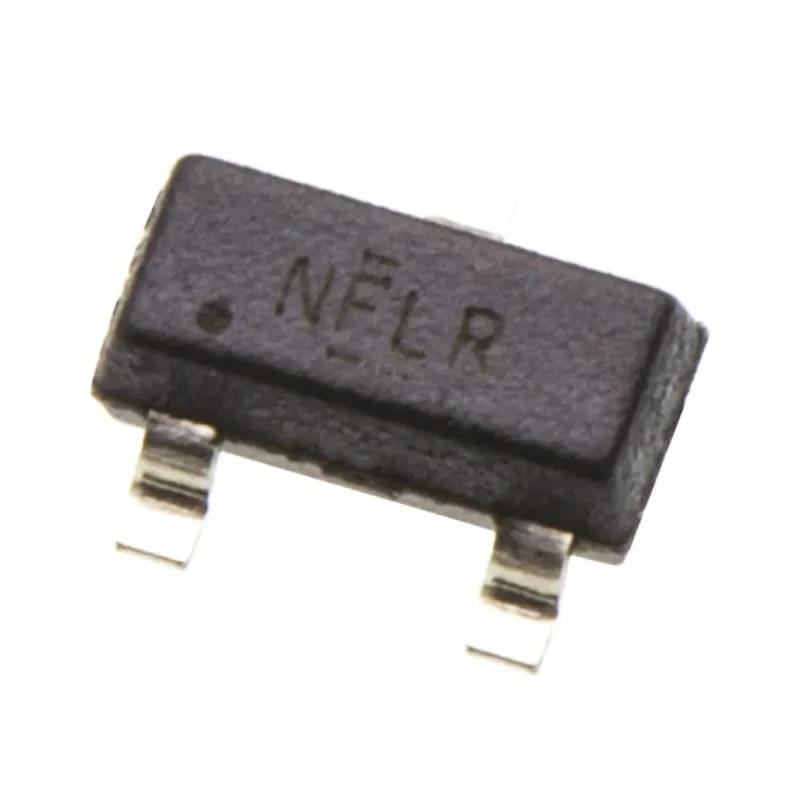

Texas Instruments Voltage Supervisor 3-Pin SOP 5.5V Max Supply Voltage TPD2E009DBZR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.12mm |
| Length | 3.04mm |
| Model | TPD2E009DBZR |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | TPD2E009 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOP |
| Sub Type | Voltage Supervisor |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 0mV |
| Electrostatic Discharge (ESD) prtotection for | DVI, HDMI, IEEE1394, USB, Ethernet & video lines |
Key Features
- Offers ultra-low capacitance 2 and 4 line electrostatic discharge protection.
- Complies with IEC 61000-4-2 level 4 for ESD protection performance.
- Supports maximum supply voltage of 5.5 volts for typical applications.
- Surface mount package type SOP with 3 pins for compact PCB integration.
- Operates reliably over temperature range from minus 40 to 85 degrees Celsius.
- Designed for protection of data lines including DVI, HDMI, USB, Ethernet and video interfaces.
- Does not include watchdog timer or manual reset functionality.
- Certified to RoHS and IEC standards 61000-4-5 and 61000-4-2 for compliance.
Product Description
Texas Instruments TPD2E009DBZR is a 3-pin SOP Voltage Supervisor designed to provide robust voltage supervision and electrostatic discharge (ESD) protection for multiple electronic data lines.
This device supports an operating supply voltage up to 5.5 V and offers high-level ESD protection compliant with IEC 61000-4-2 level 4 standards, ideal for sensitive signal interfaces such as DVI, HDMI, IEEE1394, USB, Ethernet, and video lines.
The ultra-low capacitance design minimizes interference, making it suitable for high-speed data lines requiring transient voltage suppression and sustained voltage monitoring. Its surface mount SOP package facilitates easy PCB integration in compact industrial and consumer electronic assemblies.
Operating reliably in a temperature range from -40°C to +85°C, the TPD2E009DBZR requires no manual reset functions or watchdog timers, focusing purely on voltage and ESD protection.
This voltage supervisor complies with RoHS directives and IEC standards 61000-4-5 and 61000-4-2, ensuring compatibility with international electromagnetic compatibility and safety requirements.
Ultra-low capacitance 2 and 4 line ESD protection. IEC 61000-4-2 Level 4 ESD compliance. Max supply voltage rating of 5.5V. Surface mount SOP package with 3 pins. Operating temperature range of -40 to 85°C. Protects data lines such as DVI, HDMI, USB, Ethernet, and video.
No watchdog timer or manual reset features included. RoHS compliant, meeting environmental safety standards. Compact dimensions of 3.04mm length x 1.4mm width x 1.12mm height.
This voltage supervisor is ideal for use in industrial, consumer electronics, automotive interface protection, telecommunications, and computing devices requiring reliable voltage supervision and transient voltage suppression.
Explore the collection of Power Management ICs and Voltage Supervisors at EnvMart for comprehensive component selection suited to high-performance applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5.5 volts.
It operates reliably over a temperature range from -40°C to 85°C.
This unit comes in a surface mount package type SOP with 3 pins.
It provides protection for data lines including DVI, HDMI, USB, Ethernet, and video interfaces.
The dimensions are 3.04mm in length, 1.4mm in width, and 1.12mm in height.
No, this model does not include a watchdog timer or manual reset functionality.
It complies with IEC 61000-4-2 level 4 for ESD protection performance.
Yes, it is certified to be RoHS compliant, meeting environmental safety standards.
The minimum operating voltage for this voltage supervisor is 0mV.
In addition to RoHS, it complies with IEC standards 61000-4-5 and 61000-4-2.
This model belongs to the TPD2E009 series.
