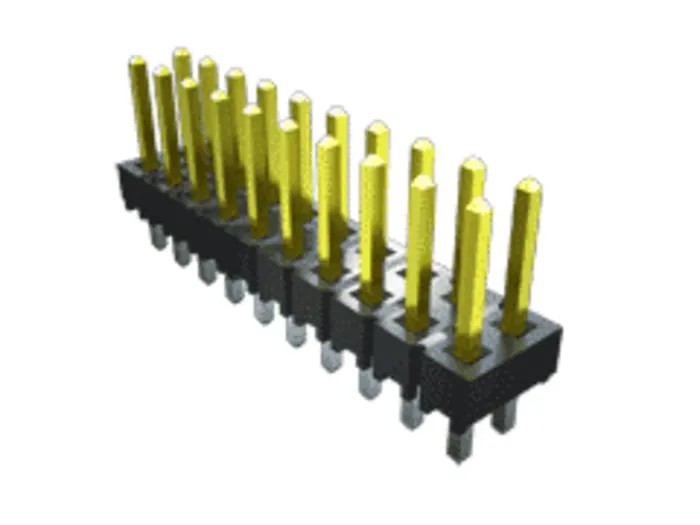

Samtec TSW Series Straight Through Hole Pin Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded TSW-105-07-G-D

Free Delivery in India | Lowest Global Shipping Charges

Samtec TSW Series Straight Through Hole Pin Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded TSW-105-07-G-D

Name: Samtec TSW Series Straight Through Hole Pin Header, 10 Contact(s), 2.54 mm Pitch, 2 Row, Unshrouded TSW-105-07-G-D
Brand: Samtec
SKU: 216931
Price: 0.89 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	465V
Brand	Samtec
Orientation	Straight
Current	4.7A
Model	TSW-105-07-G-D
Mount Type	Through Hole
Special Features	Many options for optimizing cost and performance with platings and ruggedizing features
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	TSW
Termination	Through-hole
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	10
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board, Wire-to-Board
Contact System	.025" (0.635 mm) square post

Key Features

Pins are phosphor bronze with gold plating for reliable conductivity.
Housing is made from glass filled polyester ensuring durability.
Rated current is 4.7 amperes suitable for various PCB applications.
Operating temperature ranges from -55°C up to 125°C.
Supports board-to-board and wire-to-board connection systems.
Contact system consists of 0.025-inch square posts for secure connections.
Termination type is through-hole solder ensuring robust mechanical and electrical connection.
Rows pitch and contact spacing both at 2.54 mm standard for compatibility.

Product Description

Samtec TSW-105-07-G-D is a high-quality pin header connector designed with 10 straight male contacts arranged in 2 rows on a 2.54 mm pitch. It features a glass filled polyester housing that is unshrouded, offering versatile connector access. The pins use phosphor bronze material with gold plating, providing excellent conductivity and corrosion resistance, suitable for long-lasting performance in demanding electronic environments.

This through-hole mounted connector operates reliably within a temperature range of -55°C to 125°C and carries a current rating of 4.7 amperes with a voltage rating of 465 volts, making it ideal for industrial electronics, PCB interconnections, and power connector applications.

The connector supports both board-to-board and wire-to-board system configurations, with a termination type designed for solder connection ensuring strong mechanical hold and electrical continuity. This connector is part of the TSW series, known for extended life and high mating cycle standards, enhancing durability in manufacturing, automation, and commercial electronics.

Pins with phosphor bronze and gold plating offer excellent electrical performance. Housing made from glass filled polyester for strength and durability. Standard 2.54 mm pitch and row spacing for universal PCB compatibility.

Designed for through-hole mounting with solder termination. Industrial temperature range and voltage rating for reliable operation. Ideal for connecting boards in electronic and power applications. Unshrouded design for easy access and versatile circuitry layout.

Supports multiple connection systems including board-to-board and wire-to-board. Durability optimized for high mating cycles and long service life.

This Samtec PCB header is a trusted choice for electronics manufacturing, industrial automation, and high-quality prototyping. Explore EnvMart's range of PCB Headers and Connections for compatible products and accessories.
